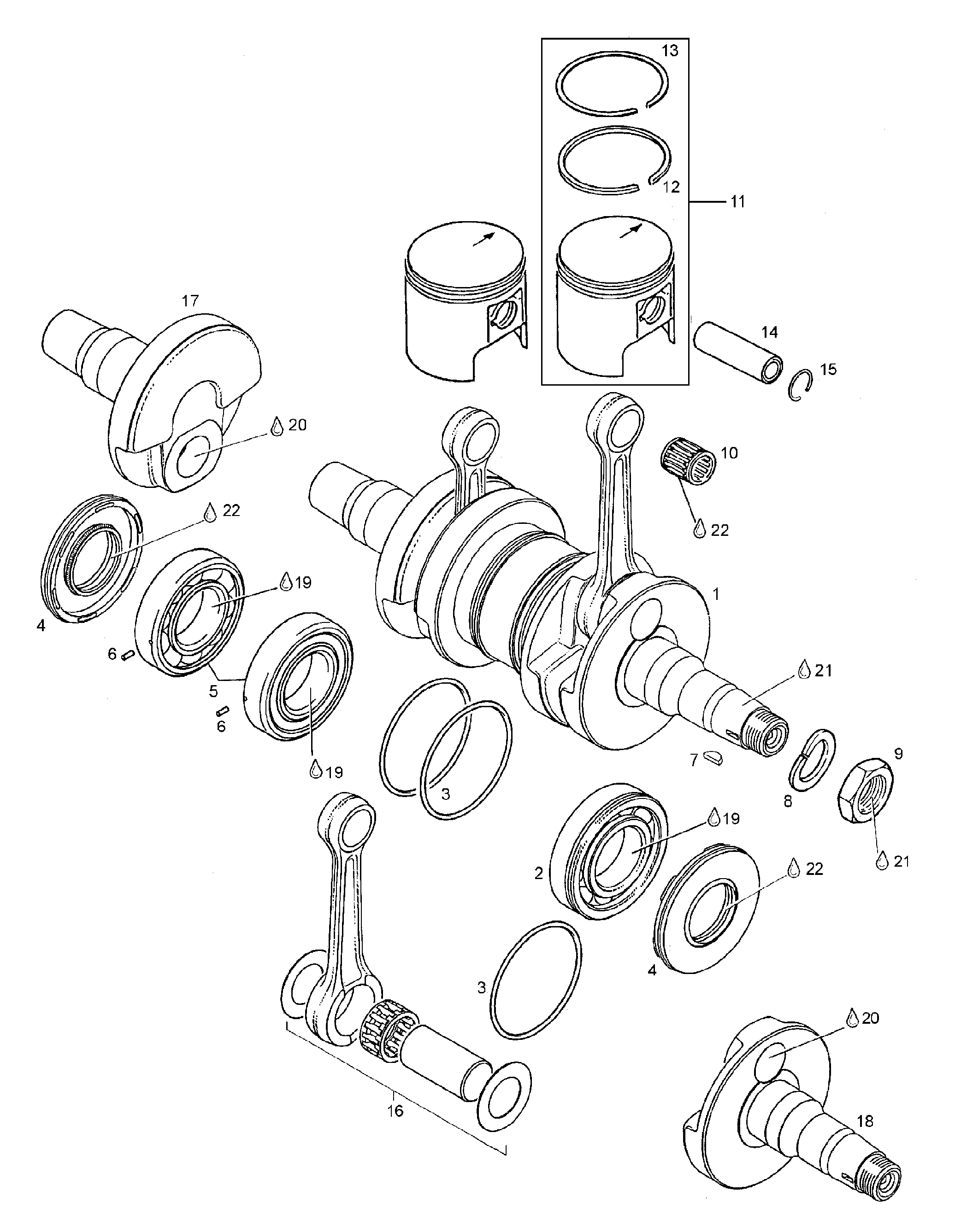

01- Crankshaft Assy для BRP Lynx Touring 400 F - 2000
-
№АртикулНазвание
-
1420887249 Crankshaft assy. Includes items 1 thru 7Crankshaft assy. Includes items 1 thru 7
-
2420832570 Bearing 6207Bearing 6207
-
3420250165 O-ringO-ring
-
4420831950 Oil sealOil seal
-
5420832574 B.Bearing 6207. Includes items 5 thru 6B.Bearing 6207. Includes items 5 thru 6
-
6420929972 Drive PinDrive Pin
-
7420246055 Woodruff KeyWoodruff Key
-
8420945759 Lock WasherLock Washer
-
9420842230 NutNut
-
10420932904 Needle cageNeedle cage
-
11420887470 Piston assy, 61.94mm. Includes items 11 thru 13Piston assy, 61.94mm. Includes items 11 thru 13
-
11420887471 Piston assy, 62.19mm. Includes items 11 thru 13Piston assy, 62.19mm. Includes items 11 thru 13
-
11420887472 Piston assy, 62.44mm. Includes items 11 thru 13Piston assy, 62.44mm. Includes items 11 thru 13
-
12420915890 Piston ring 62.00 mmPiston ring 62.00 mm
-
12420915891 Piston ring 62.25 mmPiston ring 62.25 mm
-
12420915892 Piston ring 62.50 mmPiston ring 62.50 mm
-
13420215210 Piston ring 62.00 mmPiston ring 62.00 mm
-
13420215211 Piston ring 62.25 mmPiston ring 62.25 mm
-
13420215212 Piston ring 62.50 mmPiston ring 62.50 mm
-
14420916260 Piston pinPiston pin
-
15420945735 CirclipCirclip
-
16420996334 Rod repair kitRod repair kit
-
17420818203 Crankhalf P.T.O sideCrankhalf P.T.O side
-
18420919979 Crankhalf MAG SideCrankhalf MAG Side
-
19420297434 Loctite 76710Loctite 76710
-
20420897341 Loctite,14486/10ccLoctite,14486/10cc
-
21420899785 Loctite 221, 10cm3Loctite 221, 10cm3
