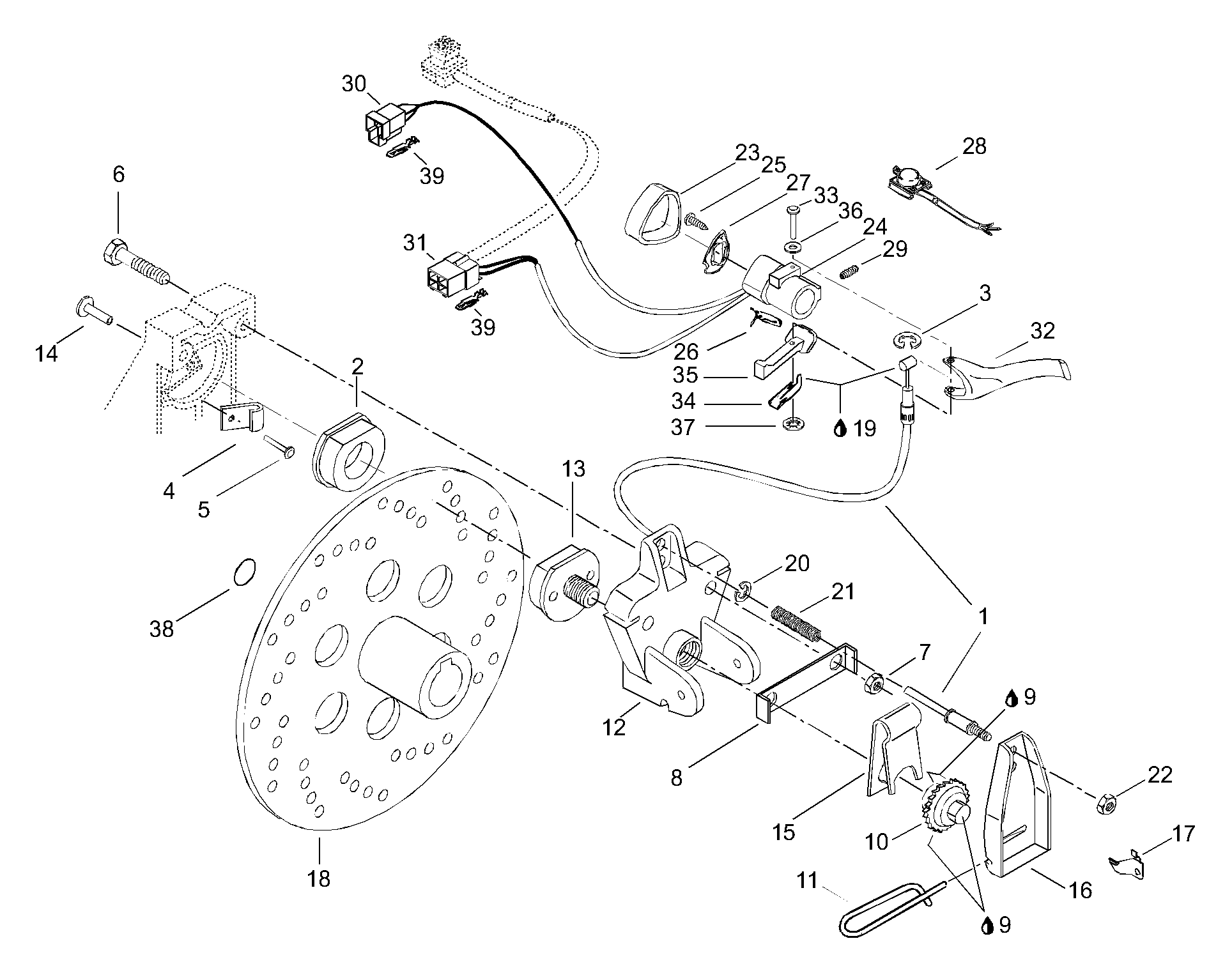

06- Brake Assy для BRP Lynx Touring 400 F - 2000
-
№АртикулНазвание
-
1414922500 Brake cableBrake cable
-
2507029300 Brake padBrake pad
-
3414274500 CirclipCirclip
-
4507022600 Indicator wearIndicator wear
-
536489 RivetRivet
-
640010 Screw M8x55Screw M8x55
-
733011 Nut elastic M8Nut elastic M8
-
8507020400 Locking tabLocking tab
-
9293800023 Loctite 767Loctite 767
-
10507019600 Ratchel wheelRatchel wheel
-
11507027500 PinPin
-
12507027600 Brake lining holderBrake lining holder
-
13507020000 Brake padBrake pad
-
14390901700 RivetRivet
-
15507020200 SpringSpring
-
16507021500 Brake leverBrake lever
-
17507009400 Ratchet springRatchet spring
-
18507029000 Brake discBrake disc
-
19293550004 Dielectric greaseDielectric grease
-
20371901300 CirclipCirclip
-
21414460600 SpringSpring
-
2233010 Nut elastic M6Nut elastic M6
-
23572073800 Brake coverBrake cover
-
24515169800 Brake handle housingBrake handle housing
-
25414473200 ScrewScrew
-
26415085700 Brake light switchBrake light switch
-
27572086600 CoverCover
-
28415085800 Dimmer switchDimmer switch
-
29414440800 Screw M8x10Screw M8x10
-
30409204200 Connector housingConnector housing
-
31409209300 Connector housingConnector housing
-
32572025700 Handle brakeHandle brake
-
33517229400 PinPin
-
34517229300 SpringSpring
-
35572025200 Brake leverBrake lever
-
36414729400 Spring washerSpring washer
-
37389804300 Push nutPush nut
-
38414928900 O-ringO-ring
-
39409210000 Male terminalMale terminal
