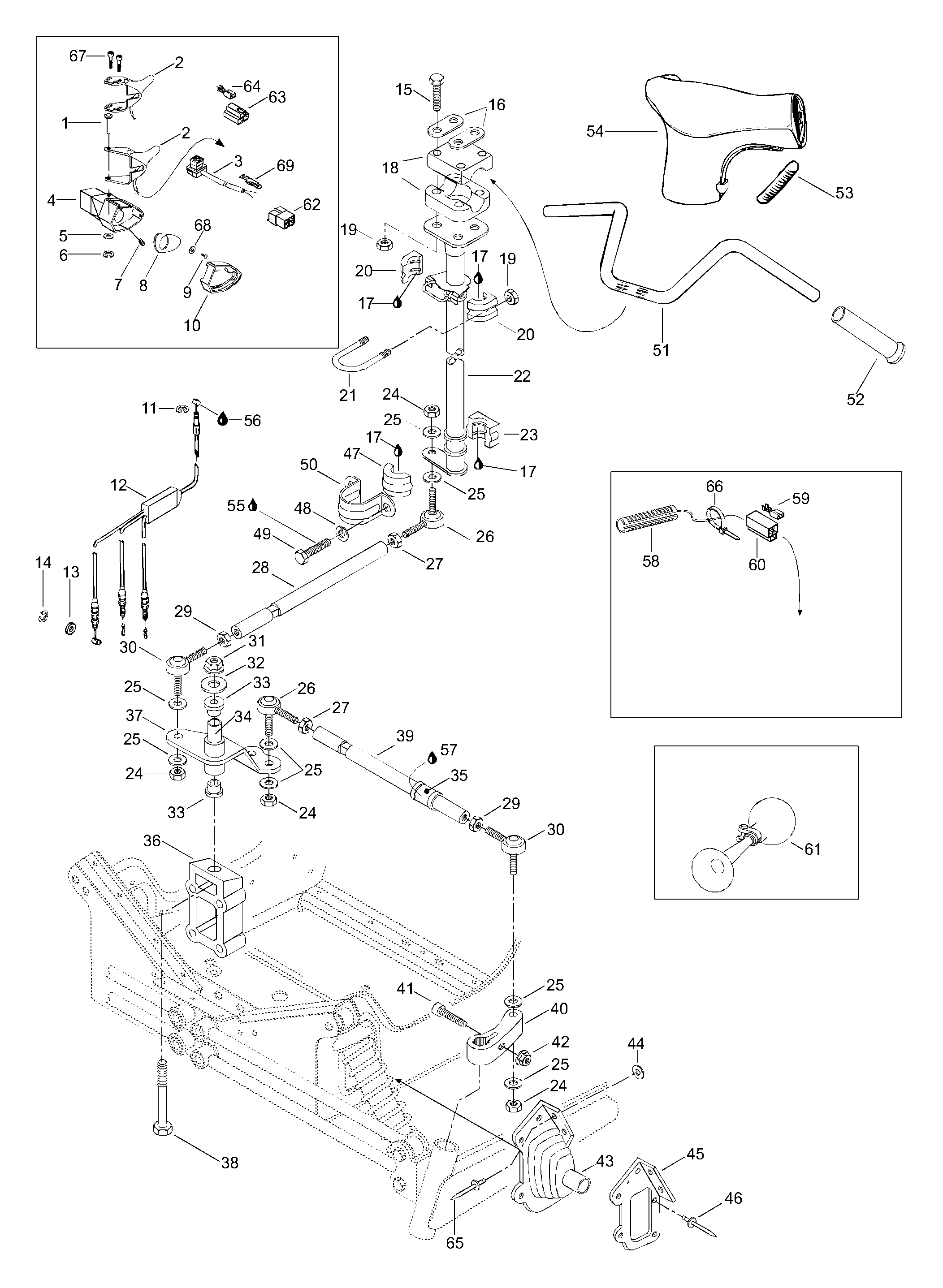

07- Steering для BRP Lynx Touring 400 F - 2000
-
№АртикулНазвание
-
1414438700 Lever pinLever pin
-
2512059145 Throttle leverThrottle lever
-
3512059146 Kill switchKill switch
-
4572086700 Throttle handle hous.Throttle handle hous.
-
5414438900 WasherWasher
-
6414439000 CirclipCirclip
-
7414440800 ScrewScrew
-
8572099400 PlatePlate
-
9414473200 ScrewScrew
-
10572044600 Throttle coverThrottle cover
-
11414274500 CirclipCirclip
-
12414883100 Throttle cableThrottle cable
-
13414753300 WasherWasher
-
14414753500 CirclipCirclip
-
1540010 Screw M8x55Screw M8x55
-
16506151196 ReinforcementReinforcement
-
17413711500 Synthetic greaseSynthetic grease
-
18277000142 Steering clampSteering clamp
-
1933011 Nut elastic M8Nut elastic M8
-
20572067100 Half bushingHalf bushing
-
21506060600 U-clampU-clamp
-
22506151125 Main tubeMain tube
-
23572064400 SleeveSleeve
-
2433023 Nut elastic M10Nut elastic M10
-
25503175800 WasherWasher
-
26414768100 L.H. Ball jointL.H. Ball joint
-
27732610011 Nut M10Nut M10
-
28506110800 Tie rodTie rod
-
29732610010 Nut M10Nut M10
-
30414768000 R.H. Ball jointR.H. Ball joint
-
3133013 Nut elastic M12Nut elastic M12
-
32506136400 WasherWasher
-
33415041100 SleeveSleeve
-
34415038000 SleeveSleeve
-
35572036500 BushingBushing
-
36506121400 BlockBlock
-
37506133800 Pivot armPivot arm
-
3840359 Screw M12x85Screw M12x85
-
39506136000 Tie rodTie rod
-
40506144800 R.H. Steering armR.H. Steering arm
-
40506144900 L.H. Steering armL.H. Steering arm
-
4140828 Allen screw M8x35Allen screw M8x35
-
4233201 Nut elastic M8Nut elastic M8
-
43570024800 R.H. tie rod capR.H. tie rod cap
-
43570024900 L.H. tie rod capL.H. tie rod cap
-
4420008 WasherWasher
-
45517241200 R.H. plate capR.H. plate cap
-
45517241300 L.H. plate capL.H. plate cap
-
46390402200 RivetRivet
-
47572064500 SleeveSleeve
-
4820014 Spring washerSpring washer
-
4940036 Screw M8x20Screw M8x20
-
50517126200 Retaining supportRetaining support
-
51506125900 Handle barHandle bar
-
525340464 Handle gripHandle grip
-
53572072400 keywaykeyway
-
54514526900 Steering paddingSteering padding
-
55293800045 Loctite 271, 10mlLoctite 271, 10ml
-
56293550004 GreaseGrease
-
57293550014 GreaseGrease
-
58515175387 HeaterHeater
-
59515175252 Female terminalFemale terminal
-
60409204300 Female connectorFemale connector
-
6121003 HornHorn
-
62409210000 Male connectorMale connector
-
63409008500 Female connectorFemale connector
-
64515175253 Female terminalFemale terminal
-
65390907700 RivetRivet
-
6627010 Tie rapTie rap
