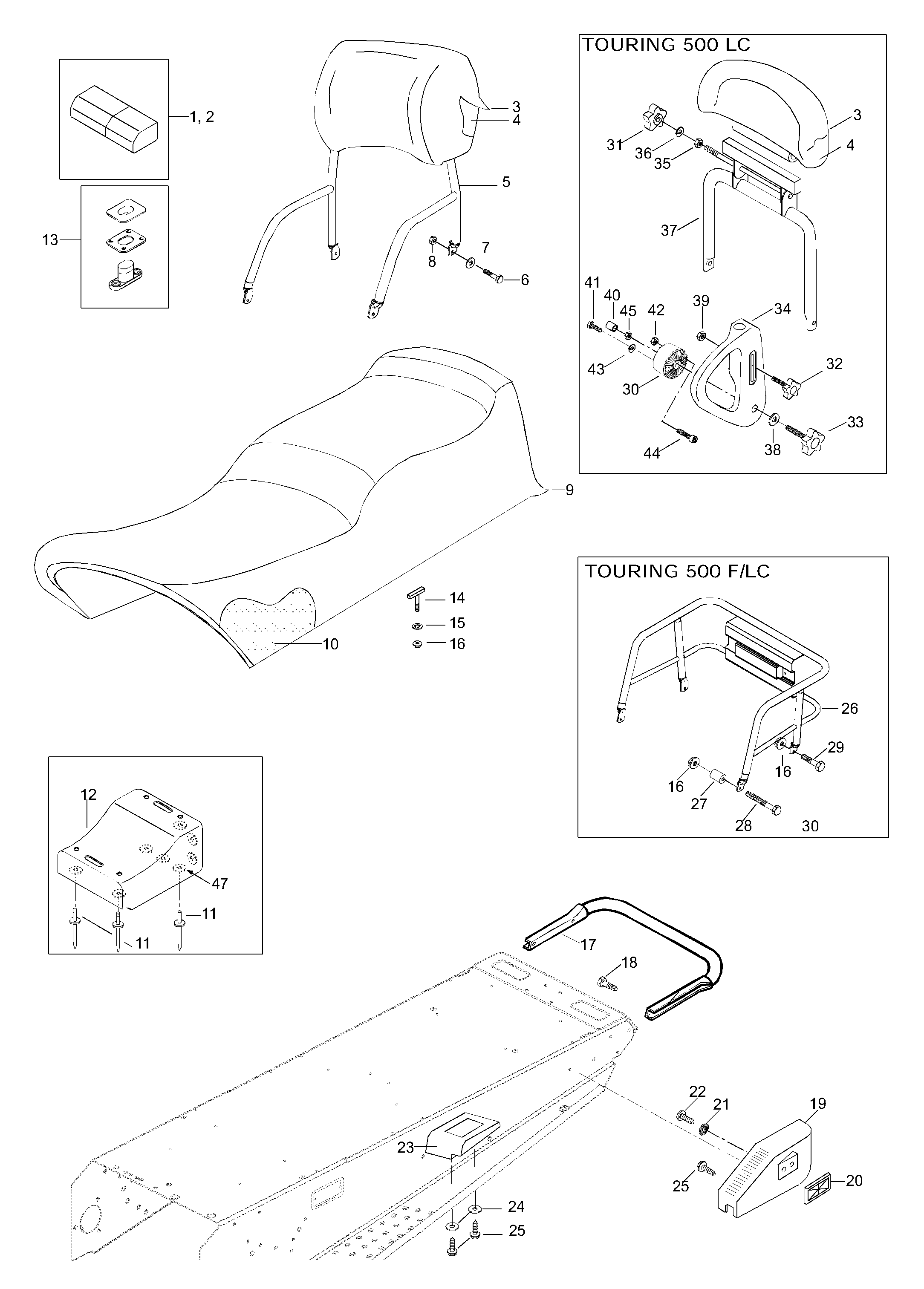

09- Body для BRP Lynx Touring 400 F - 2000
-
№АртикулНазвание
-
15445402 Tool box (with tools)Tool box (with tools)
-
2572036310 Tool boxTool box
-
35340917 Back rest coverBack rest cover
-
4539399 Back rest stoppningBack rest stoppning
-
55246057 BackrestBackrest
-
640882 Screw M8x20Screw M8x20
-
733079 Spring washerSpring washer
-
833201 Nut elastic M8Nut elastic M8
-
95245234 Seat coverSeat cover
-
105145788 Seat foamSeat foam
-
1136036 RivetRivet
-
12572051200 Rear trunkRear trunk
-
1328354 Seat BuckleSeat Buckle
-
14732601221 T-screwT-screw
-
15732610072 Nut pushNut push
-
1633200 Nut elastic M6Nut elastic M6
-
175245189 Rear bumperRear bumper
-
1840336 Screw M8x20Screw M8x20
-
19580642200 R.H. molding assy. Includes items 19 thru 22R.H. molding assy. Includes items 19 thru 22
-
19580642300 L.H. molding assy. Includes items 19 thru 22L.H. molding assy. Includes items 19 thru 22
-
19572049300 R.H. moldingR.H. molding
-
19572049200 L.H. moldingL.H. molding
-
20414510200 Reflector, yellowReflector, yellow
-
2120018 WasherWasher
-
2240070 Screw M5x10Screw M5x10
-
23572088700 R.H. footrestR.H. footrest
-
23572088800 L.H. footrestL.H. footrest
-
24224061121 WasherWasher
-
2540870 ScrewScrew
