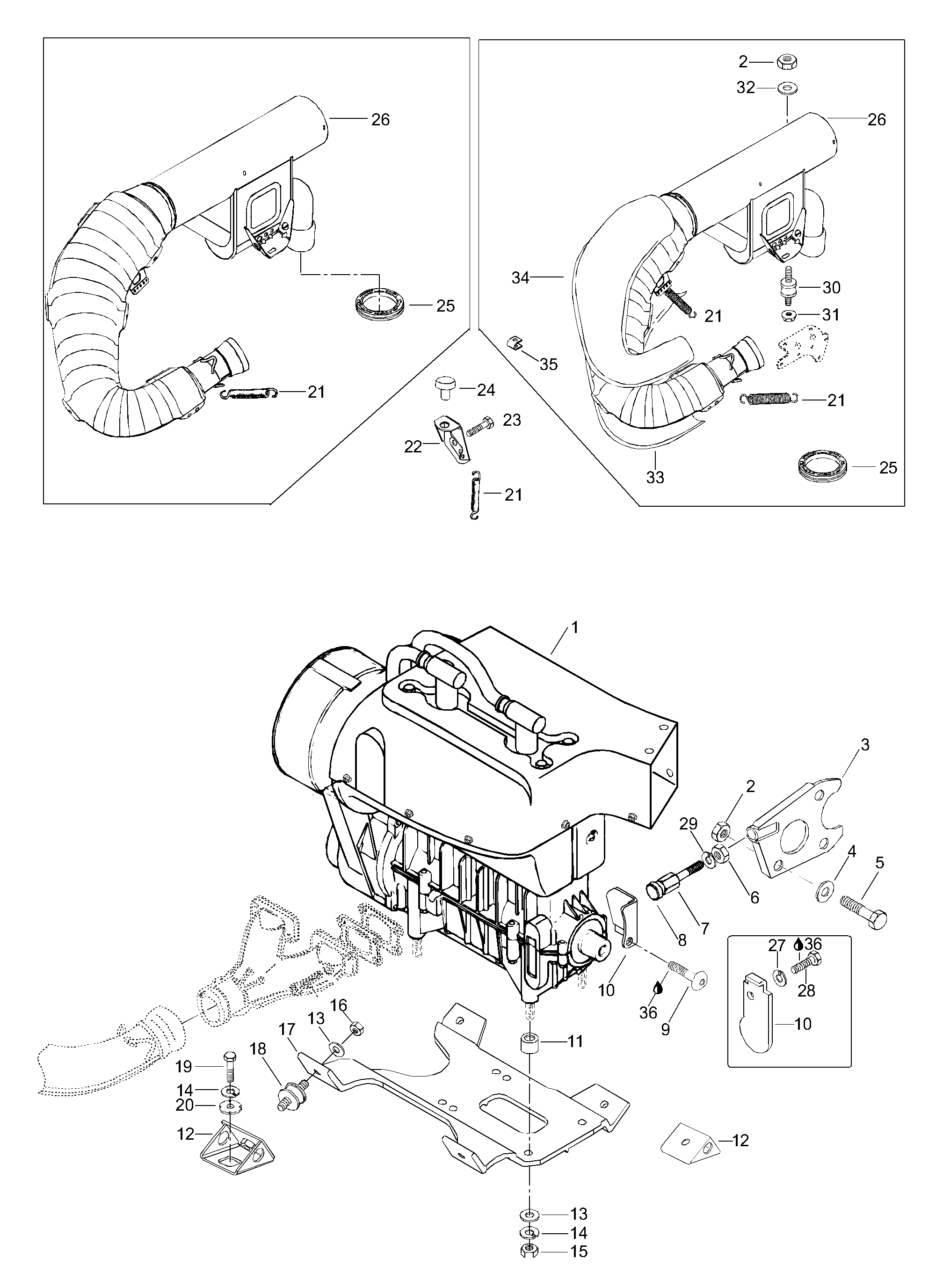

01- Engine Mount Plate/Muffler для BRP Lynx XR 500 LC - 2000
-
№АртикулНазвание
-
1400409412 Engine >Engine >
-
233011 Nut elastic M8Nut elastic M8
-
3512055600 Support plateSupport plate
-
420004 WasherWasher
-
540037 Screw M8x25Screw M8x25
-
6732610019 Nut M12Nut M12
-
7512058800 ScrewScrew
-
8512059056 Gummi damperGummi damper
-
10512052900 Stopper plateStopper plate
-
11503128100 SpacerSpacer
-
12512050900 SupportSupport
-
1320005 WasherWasher
-
1420047 WasherWasher
-
1533004 Nut M10Nut M10
-
1633082 Nut elastic M10Nut elastic M10
-
17512054400 Engine supportEngine support
-
18570127700 Rubber mountRubber mount
-
1940040 Screw M10x25Screw M10x25
-
20512056700 Lock washerLock washer
-
21415107100 SpringSpring
-
22514048600 Muffler supportMuffler support
-
2340019 ScrewScrew
-
24514048200 Rubber bumperRubber bumper
-
25570039000 Exhaust grommetExhaust grommet
-
26514048400 MufflerMuffler
-
2720052 Spring washerSpring washer
-
2840029 Screw M6x16Screw M6x16
-
29512059057 WasherWasher
-
30514052838 Rubber mountRubber mount
-
3133201 Nut elastic M8Nut elastic M8
-
3220010 WasherWasher
-
33514048504 Lower shellLower shell
-
34514044020 Upper shellUpper shell
-
35514046503 Reinforcement cleatReinforcement cleat
-
36293800005 Loctite 271, 10mlLoctite 271, 10ml
