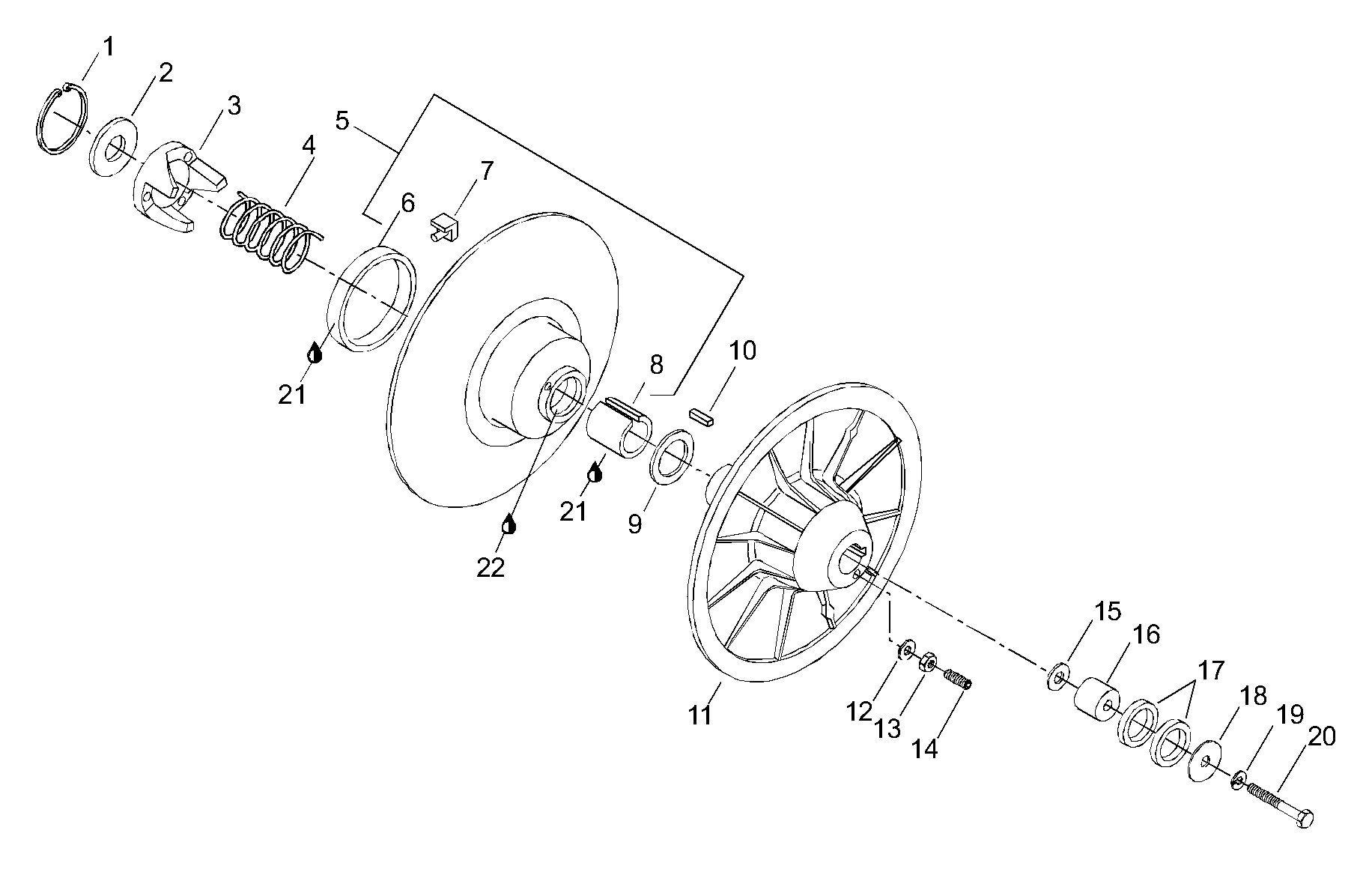

05- Driven Pulley для BRP Lynx XR 500 LC - 2000
-
№АртикулНазвание
-
1371903100 Snap ringSnap ring
-
2504141800 WasherWasher
-
3417126343 Cam (50 dgr.)Cam (50 dgr.)
-
4414558900 Spring, beigeSpring, beige
-
5504143400 Sliding pulley. Includes items 5 thru 8Sliding pulley. Includes items 5 thru 8
-
6414876600 Bushing garlockBushing garlock
-
7414918000 Cam slider shoeCam slider shoe
-
8415011200 Bushing garlockBushing garlock
-
9504141900 WasherWasher
-
10414820800 KeyKey
-
11504141600 Fixed flangeFixed flange
-
12420245370 WasherWasher
-
13232061414 Nut M6Nut M6
-
14206263044 Socket head screwSocket head screw
-
15224081201 WasherWasher
-
16504091600 SleeveSleeve
-
17504108200 ShimShim
-
18517078700 WasherWasher
-
1920014 Spring washerSpring washer
-
2040861 Screw M8x65Screw M8x65
-
21413703100 Loctite 609, 10ccLoctite 609, 10cc
-
22413701000 Loctite 767Loctite 767
