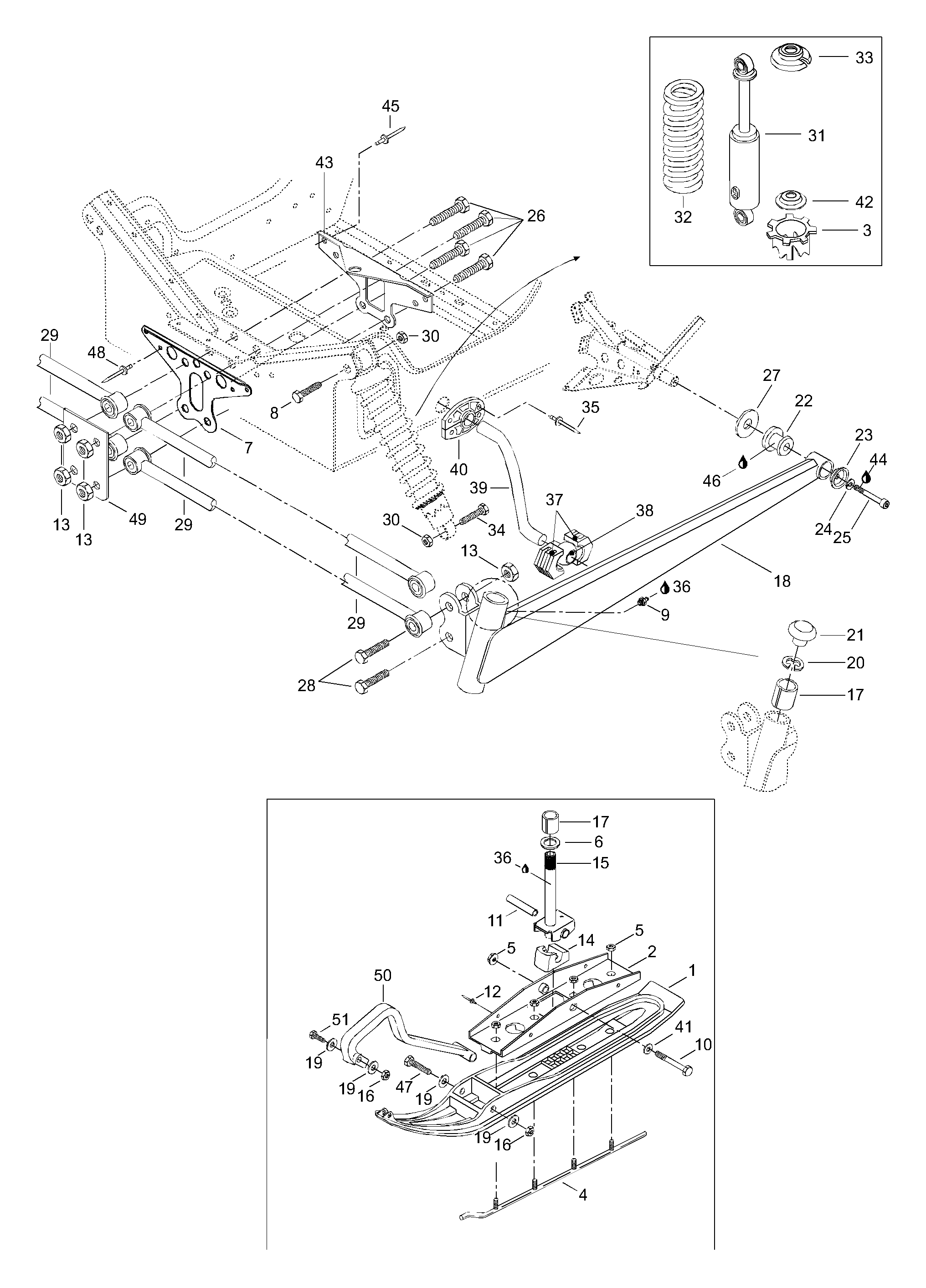

08- Front Suspension для BRP Lynx XR 500 LC - 2000
-
№АртикулНазвание
-
1505070190 Flexible ski linerFlexible ski liner
-
2505070055 Bridge assyBridge assy
-
3503183700 Adjuster ring(cam)Adjuster ring(cam)
-
4860501900 Runner carbideRunner carbide
-
533074 Nut M10Nut M10
-
6505070004 WasherWasher
-
7517254800 Front link plateFront link plate
-
840019 Screw M10x60Screw M10x60
-
934011 Crease nippleCrease nipple
-
1040814 Screw M10x110Screw M10x110
-
11506133300 SleeveSleeve
-
12390911100 RivetRivet
-
1333013 Nut elastic M12Nut elastic M12
-
14506151233 Ski stopperSki stopper
-
15506151234 Ski legSki leg
-
1633011 Nut elastic M8Nut elastic M8
-
17505070003 SleeveSleeve
-
18505070378 R.H. swing armR.H. swing arm
-
18505070379 L.H. swing armL.H. swing arm
-
1920004 WasherWasher
-
20371910400 CirclipCirclip
-
21572091300 CapCap
-
22570062200 Rubber damperRubber damper
-
23506115800 Cup washerCup washer
-
2420014 Spring washerSpring washer
-
2540289 Allen screw M8x25Allen screw M8x25
-
2640023 Screw M10x100Screw M10x100
-
27503146700 WasherWasher
-
28401250 Screw M12x50Screw M12x50
-
29580649700 ArmArm
-
3033082 Nut elastic M10Nut elastic M10
-
31505070012 ShockShock
-
32414976100 SpringSpring
-
33503140600 Spring stopperSpring stopper
-
3440018 Screw M10x55Screw M10x55
-
35390402300 RivetRivet
-
36413711500 Synthetic greaseSynthetic grease
-
37572069800 Block slidingBlock sliding
-
38505070068 Ball jointBall joint
-
39505070069 StabilisatorStabilisator
-
40505070139 BushingBushing
-
41732900049 WasherWasher
-
42503187500 Spring guideSpring guide
-
43517254900 Rear link plateRear link plate
-
44293800060 Loctite 243, 10mlLoctite 243, 10ml
-
45390909200 RivetRivet
-
46293550014 GreaseGrease
-
4740869 Screw M8x100Screw M8x100
-
48390404900 RivetRivet
-
49518306700 SupportSupport
-
50572101000 Plastic handlePlastic handle
-
5140009 Screw M8x50Screw M8x50
