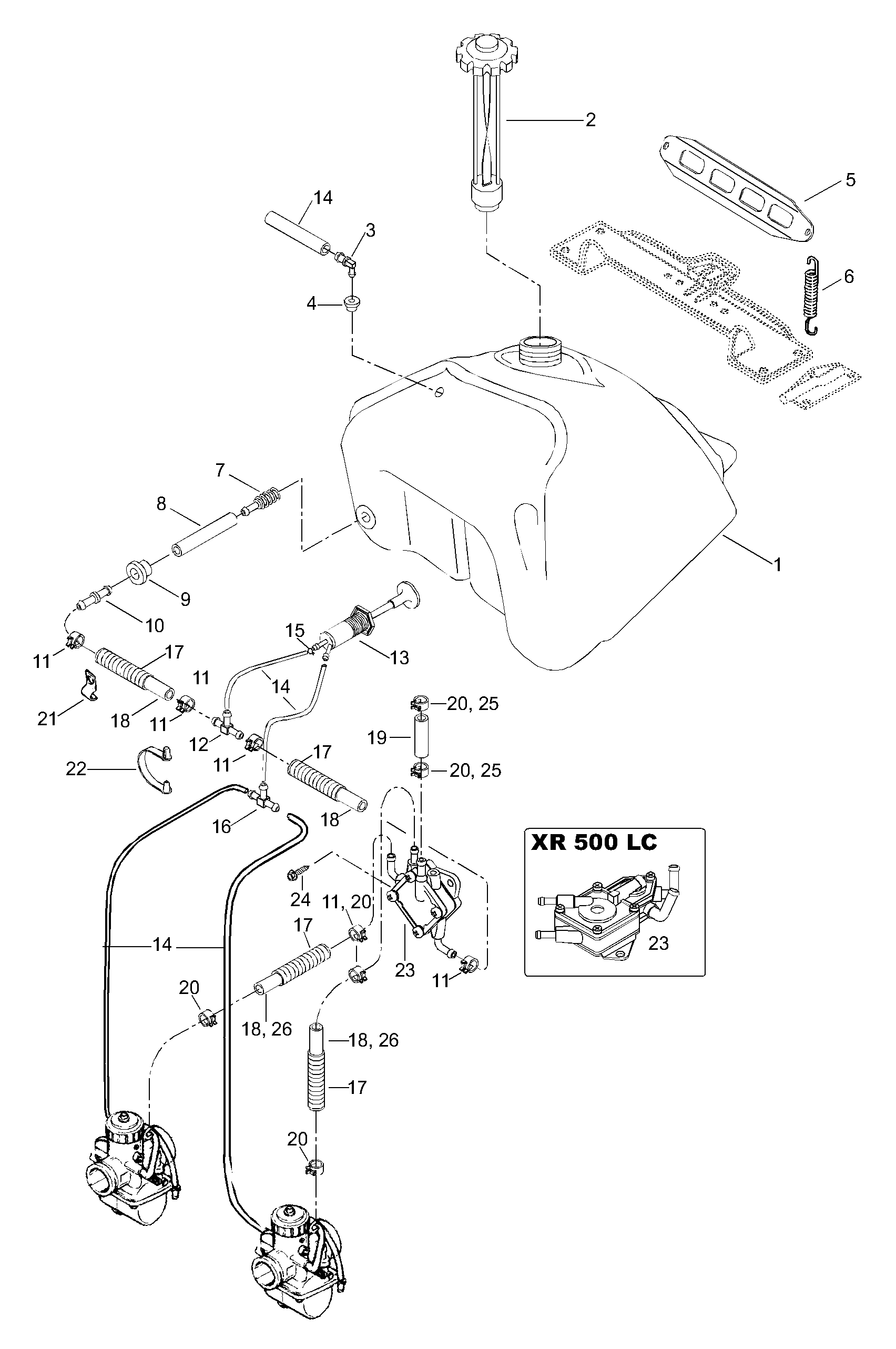

02- Fuel Tank для BRP Lynx XR 500 LC - 2000
-
№АртикулНазвание
-
1572108900 Fuel tankFuel tank
-
2572161200 Fuel tank capFuel tank cap
-
3414814100 Male connectorMale connector
-
4513032908 GrommetGrommet
-
5517249200 Fuel tank supportFuel tank support
-
6517182100 FjaderFjader
-
7414865700 Fuel filterFuel filter
-
839030 Fuel line 8/5Fuel line 8/5
-
9570045500 GrommetGrommet
-
10414518500 Male connectorMale connector
-
11414554800 ClampClamp
-
1221067 T-fittingT-fitting
-
13415060500 PrimerPrimer
-
1439035 Hose 5/3Hose 5/3
-
1621062 T-fittingT-fitting
-
1728012 TubingTubing
-
1839004 Fuel line 8/5Fuel line 8/5
-
1939001 Fuel line 11/6Fuel line 11/6
-
20414420700 ClampClamp
-
21415018200 ClipClip
-
23403801100 Fuel pumpFuel pump
-
2440322 Screw M6x16Screw M6x16
-
25414415200 ClampClamp
-
2639060 Fuel line 8/5,5Fuel line 8/5,5
