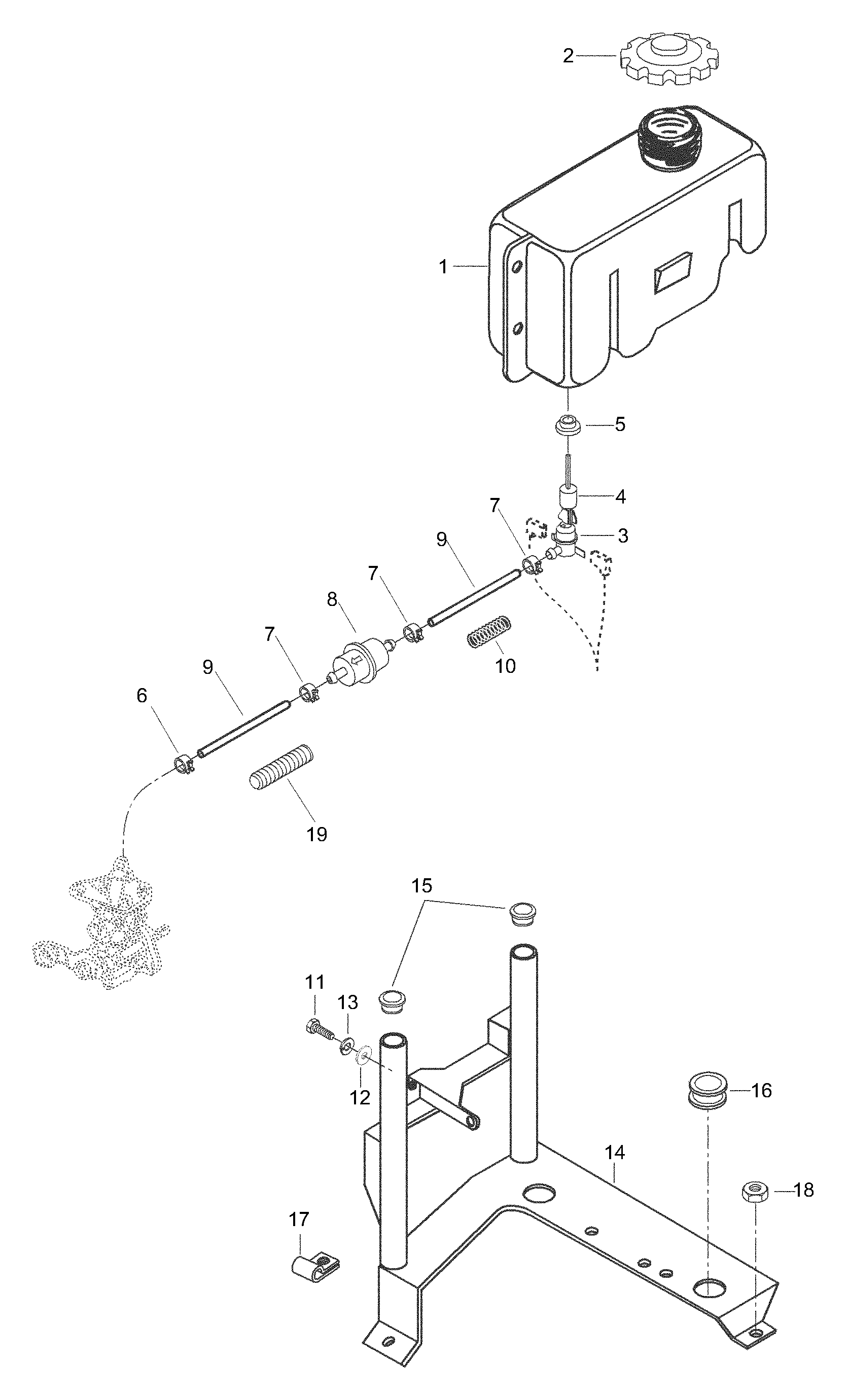

01- Oil Tank для BRP Lynx 6900 FCE - 2001
-
№АртикулНазвание
-
15142700 Oil tankOil tank
-
2572071000 CapCap
-
3414681800 Oil level sensorOil level sensor
-
4414681900 Float for sensorFloat for sensor
-
5570023000 GrommetGrommet
-
6414420700 Spring clipSpring clip
-
727119F Spring clipSpring clip
-
8414536500 Oil filterOil filter
-
939046 Oil line 11/8Oil line 11/8
-
10250002 SpringSpring
-
1140029 Screw M6x16Screw M6x16
-
1220009 WasherWasher
-
1320052 Lock washerLock washer
-
145342647 SupportSupport
-
1528136 PlugPlug
-
1628022 GrommetGrommet
-
1727092 ClampClamp
-
1833200 Nut M6Nut M6
-
1928015 TubeTube
