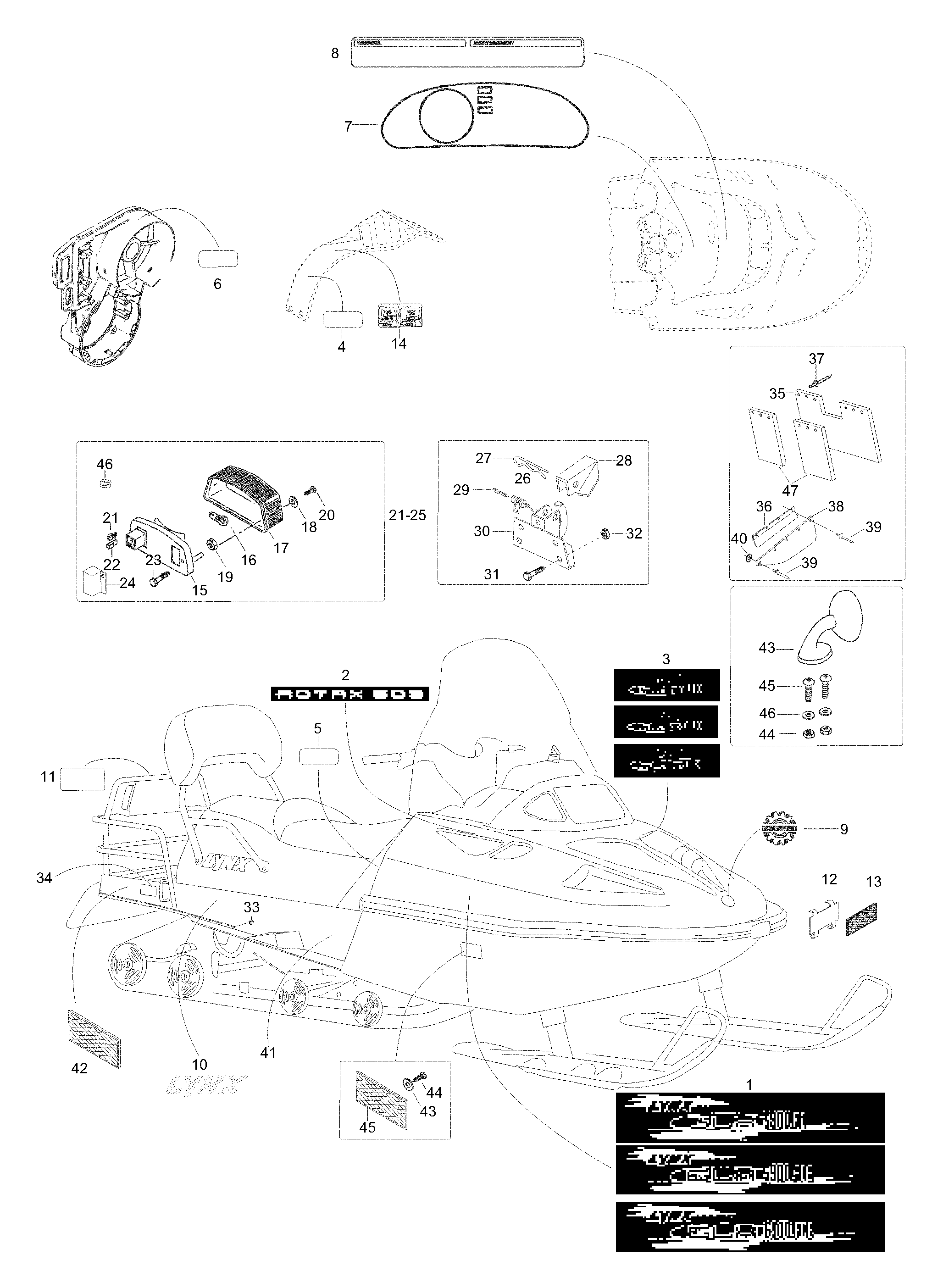

09- Equipment для BRP Lynx 6900 FCE - 2001
-
№АртикулНазвание
-
5146572 Decal assy hood cont. decals: 1, 2, 3Decal assy hood cont. decals: 1, 2, 3
-
15346545 Decal, upper hood R.Decal, upper hood R.
-
15346546 vanstDecal, upper hood L.vanstDecal, upper hood L.
-
25346490 Decal, RotaxDecal, Rotax
-
35346547 Front decal, hoodFront decal, hood
-
45447014 Warning decalWarning decal
-
55447012 Oil cheking decalOil cheking decal
-
65447016 Fanbelt decalFanbelt decal
-
75344623 Dash decalDash decal
-
85346802 Instruction decalInstruction decal
-
9516000983 Decal BombardierDecal Bombardier
-
105346963 Decal, LynxDecal, Lynx
-
115447072 Instruction decalInstruction decal
-
125440839 SupportSupport
-
1321060 Front reflector whiteFront reflector white
-
155341214 Rear lamp assy. Includes items 15 thru 20Rear lamp assy. Includes items 15 thru 20
-
15414979400 Tail lamp housingTail lamp housing
-
16410504000 Bulb tail lampBulb tail lamp
-
17414513700 LensLens
-
18414516400 WasherWasher
-
1933200 Nut M6Nut M6
-
2040613 ScrewScrew
-
2142178 ConnectorConnector
-
2242179 Connector housingConnector housing
-
2340032 Screw M6x30Screw M6x30
-
245345713 AdapterAdapter
-
255344156 Hitch Assy. Includes items 25 thru 30Hitch Assy. Includes items 25 thru 30
-
26545693 SpringSpring
-
2741029 PinPin
-
285440767 LatchLatch
-
2941012 CotterCotter
-
305344208 Bracket weldedBracket welded
-
3140336 Screw M8x20Screw M8x20
-
3233011 Nut elastic M8Nut elastic M8
-
3328136 PluggPlugg
-
345445636 CE-decalCE-decal
-
35535437 Snow guardSnow guard
-
3736036 RivetRivet
-
415144861 ChassisChassis
-
4221121 Yellow reflectorYellow reflector
-
4320018 WasherWasher
-
4440070 Screw M5x10Screw M5x10
-
45414510200 Reflector, AmberReflector, Amber
