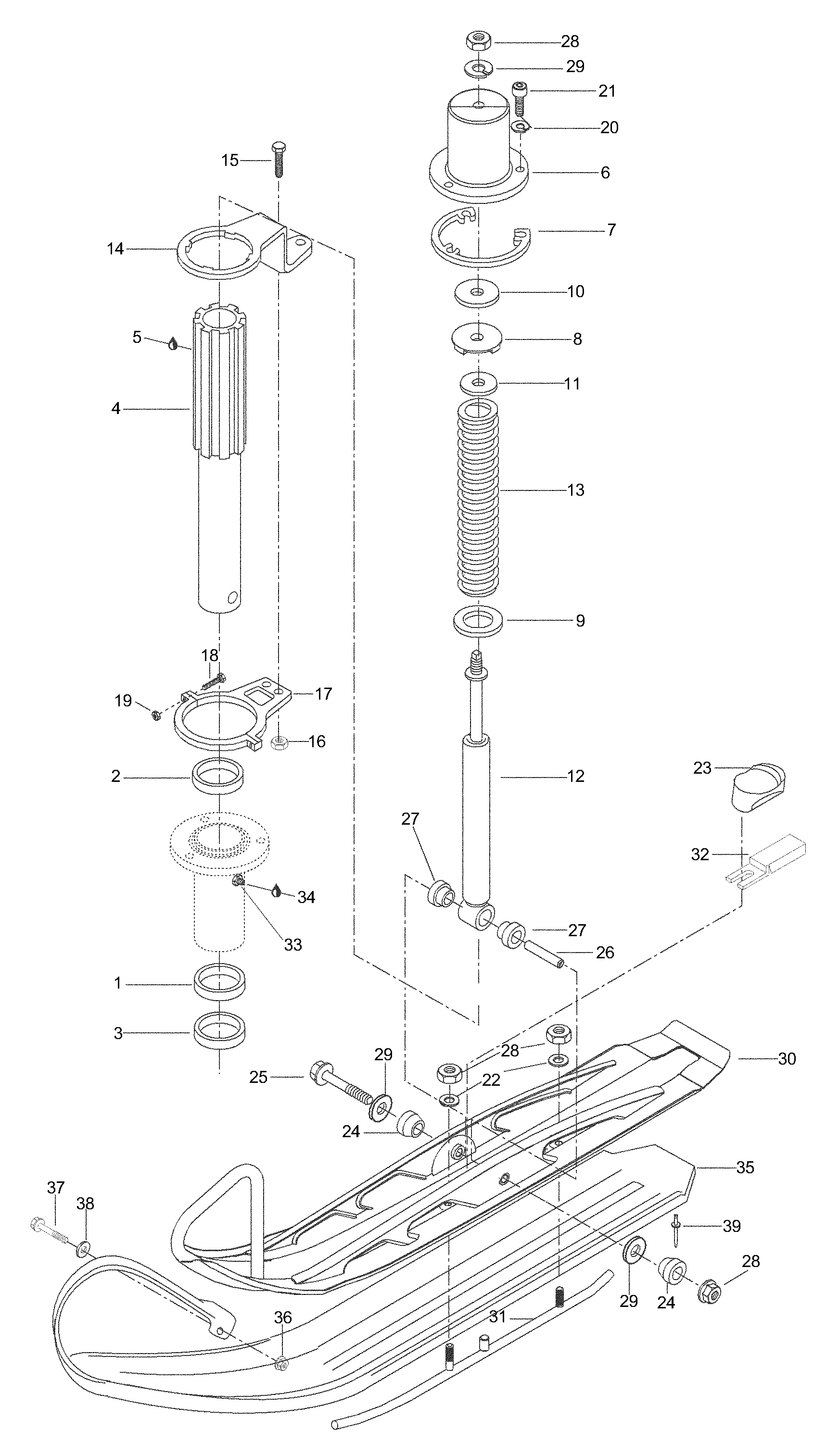

08- Front Suspension для BRP Lynx 6900 FCE - 2001
-
№АртикулНазвание
-
1414803200 Lower cushionLower cushion
-
2414803100 Upper cushionUpper cushion
-
3316373 Oil sealOil seal
-
45245362 Ski-legSki-leg
-
5413711500 GreaseGrease
-
65244225 Welded coverWelded cover
-
7503145600 Spacer plateSpacer plate
-
8570025800 StopperStopper
-
9549493 BearingplateBearingplate
-
105440399 PlatePlate
-
11549492 Holder plateHolder plate
-
1223018 ShockShock
-
135241330 SpringSpring
-
145244182 Arm-steeringArm-steering
-
1540031 Screw M6x25Screw M6x25
-
1633200 Nut M6Nut M6
-
175344180 Support arm assySupport arm assy
-
1840146 Allen screw M4x20Allen screw M4x20
-
1933008 Nut elastic M4Nut elastic M4
-
2020014 Lock washerLock washer
-
2140305 Allen screw M8x20Allen screw M8x20
-
2220005 Washer A10.5Washer A10.5
-
235341750 StopperStopper
-
24547543 RubberRubber
-
2540354 Screw M10x125Screw M10x125
-
26549716 SleeveSleeve
-
27572034500 CushionCushion
-
2833012 Nut elastic M10Nut elastic M10
-
2920012 WasherWasher
-
305245338 SkiSki
-
315344021 Carbide ski runnerCarbide ski runner
-
325445639 Support plateSupport plate
-
3334019 Grease nippleGrease nipple
-
34420899785 Loctite 221, 10ccLoctite 221, 10cc
