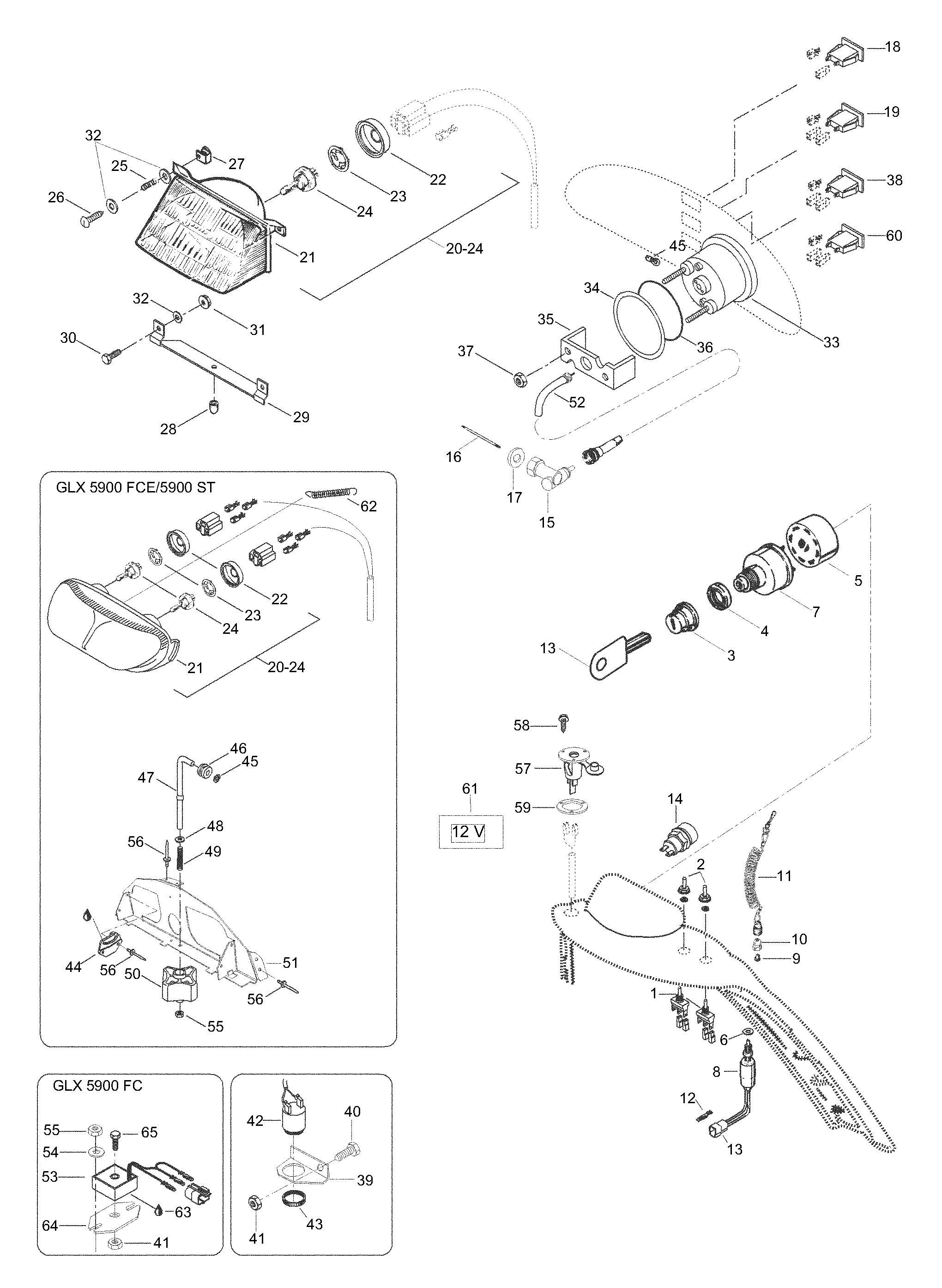

10- Electric для BRP Lynx 6900 FCE - 2001
-
№АртикулНазвание
-
1410110700 SwitchSwitch
-
2515175281 CoverCover
-
3570013700 BootBoot
-
4410112100 Face nutFace nut
-
5572150700 Ignition blockIgnition block
-
620005 WasherWasher
-
742019 Ignition switchIgnition switch
-
8410106700 Brake switchBrake switch
-
9570151100 Plunger capPlunger cap
-
10515145900 Switch nutSwitch nut
-
11515151500 Cap assyCap assy
-
1242031 ConnectorConnector
-
1342122 Connector housingConnector housing
-
14415101200 ButtonButton
-
1535021 Angle gear 1:1.4Angle gear 1:1.4
-
1645075 Square pin 75mmSquare pin 75mm
-
175444186 GasketGasket
-
18410109600 Pilot lamp (HeadlamPilot lamp (Headlam
-
19410109500 Pilot lamp (Oil level)Pilot lamp (Oil level)
-
20410609100 Headlamp assy. Includes items 20 thru 24Headlamp assy. Includes items 20 thru 24
-
21410609300 HeadlampHeadlamp
-
22410607100 Protector capProtector cap
-
23410608300 Bulb holderBulb holder
-
24410503700 Halogen bulb 60/55Halogen bulb 60/55
-
25517168600 SpringSpring
-
26243244040 Screw M4x40Screw M4x40
-
27572078600 Projector nutProjector nut
-
28410608200 Rubber stopperRubber stopper
-
29539864 Headlamp supportHeadlamp support
-
3040247 Screw M5x16Screw M5x16
-
3133009 Nut elastic M5Nut elastic M5
-
3220002 WasherWasher
-
33515175337 Speedometer, blackSpeedometer, black
-
34517258500 WasherWasher
-
35414806500 SupportSupport
-
36414807100 O-ringO-ring
-
3733062 Nut elastic M5Nut elastic M5
-
38410113400 Pilot lamp, RERPilot lamp, RER
-
4133200 Nut M6Nut M6
-
525344162 Speedometer cableSpeedometer cable
-
535441403 Regulator AssyRegulator Assy
-
5420009 WasherWasher
-
5533010 Nut elastic M6Nut elastic M6
-
63413707500 Lithium-greaseLithium-grease
-
64544741 Cooling plateCooling plate
-
6540003 Screw M6x35Screw M6x35
