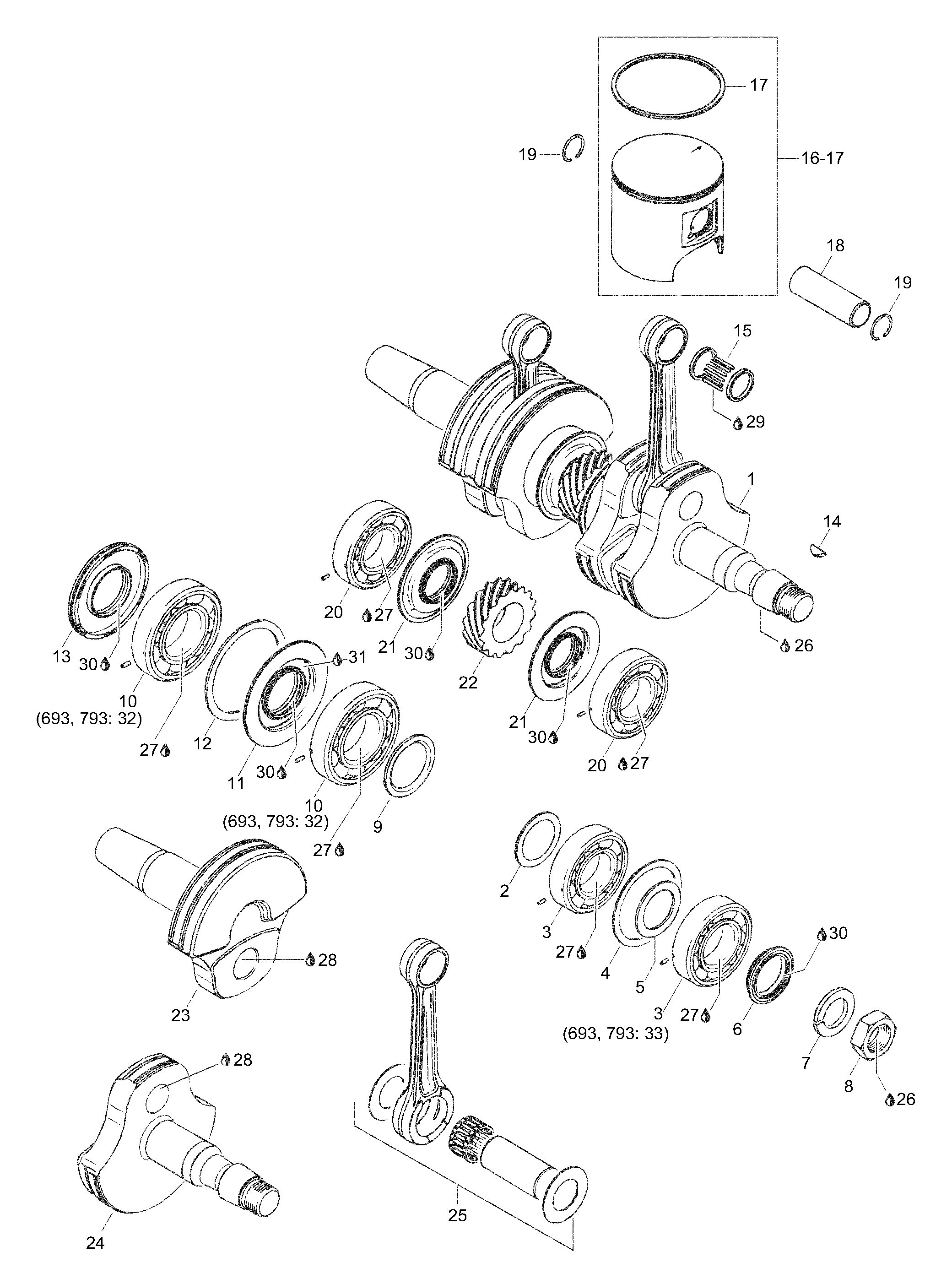

01- Crankshaft Assy для BRP Lynx Enduro 500 Special - 2001
-
№АртикулНазвание
-
1420888462 Crankshaft assy. Includes items 1 thru 14Crankshaft assy. Includes items 1 thru 14
-
2420827445 SpacerSpacer
-
3420832590 Ball bearing assyBall bearing assy
-
4420827050 Retaining diskRetaining disk
-
5420427684 WasherWasher
-
6420931790 Oil sealOil seal
-
7420945759 Lock washerLock washer
-
8420842230 Nut M22Nut M22
-
9420827760 Shim, 2 mmShim, 2 mm
-
10420832575 Bearing 6207 assyBearing 6207 assy
-
11420931455 Oil sealOil seal
-
12420927710 Retaining diskRetaining disk
-
13420831950 Oil sealOil seal
-
14420246015 Woodruff-keyWoodruff-key
-
15420832320 Needle cageNeedle cage
-
16420888442 Piston 69.40 mm. Includes items 16 thru 17Piston 69.40 mm. Includes items 16 thru 17
-
16420888443 Piston 69.65 mm. Includes items 16 thru 17Piston 69.65 mm. Includes items 16 thru 17
-
17420815043 Retangular ringRetangular ring
-
17420815044 Retangular ringRetangular ring
-
18420916186 Piston pinPiston pin
-
19420945735 CirclipCirclip
-
20420832590 Bearing 6206 assyBearing 6206 assy
-
21420931940 Oil sealOil seal
-
22420834350 Central gear 15TCentral gear 15T
-
23420818664 Crankshaft P.T.O.-sideCrankshaft P.T.O.-side
-
24420818693 Crankshaft MAG. sideCrankshaft MAG. side
-
25420888463 Rod repair kit MAG.-sideRod repair kit MAG.-side
-
25420888464 Rod repair kit P.T.O.-sidRod repair kit P.T.O.-sid
-
26420899785 Loctite 221, violet, 10ccLoctite 221, violet, 10cc
-
27420297434 Loctite anti seizeLoctite anti seize
-
28420897340 Loctite 14486, 250mlLoctite 14486, 250ml
-
30420899271 Klueber petamoKlueber petamo
-
31293550021 Isoflex grease, 50gIsoflex grease, 50g
