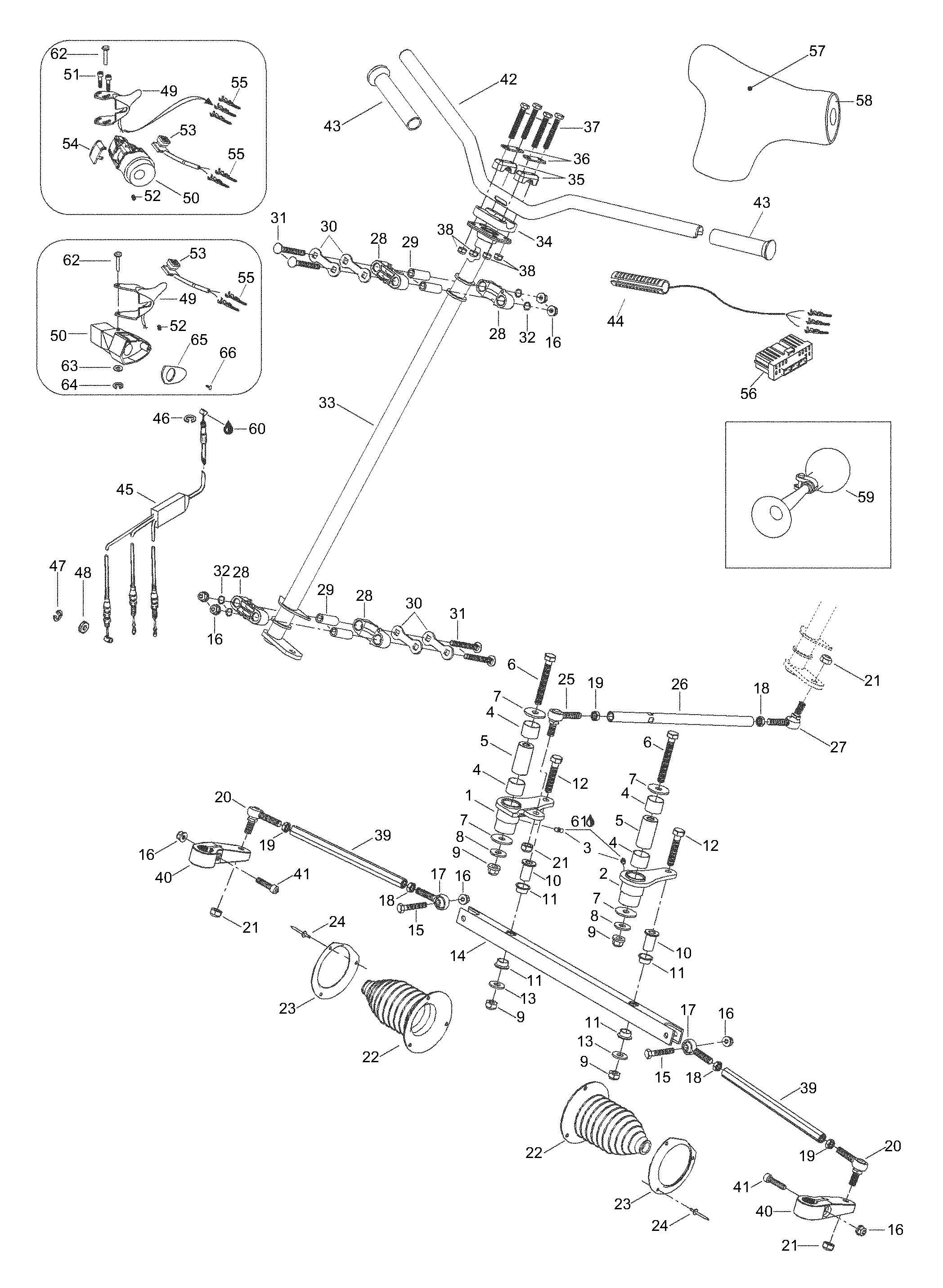

07- Steering для BRP Lynx Enduro 500 Special - 2001
-
№АртикулНазвание
-
1506146600 R.H. swivel armR.H. swivel arm
-
2506146700 L.H. swivel armL.H. swivel arm
-
334011 Grease FittingGrease Fitting
-
4506149900 Swivel bushingSwivel bushing
-
5506150100 Swivel-pivotSwivel-pivot
-
640226 Screw M10x80Screw M10x80
-
720080 WasherWasher
-
820101 Washer, hardenedWasher, hardened
-
933012 Nut elastic M10Nut elastic M10
-
10506147300 CushionCushion
-
11506150200 Swivel-bushingSwivel-bushing
-
1240018 Screw M10x55Screw M10x55
-
1320028 WasherWasher
-
145245498 Bar-swivelBar-swivel
-
1540137 Allen screw M8x40Allen screw M8x40
-
1633201 Elastic flanged nut M8Elastic flanged nut M8
-
17506151101 Joint ball L.H.Joint ball L.H.
-
18732610011 L.H. jam nut M10L.H. jam nut M10
-
19732610010 R.H. jam nut M10R.H. jam nut M10
-
20415012400 Joint ballJoint ball
-
2133023 Nut elastic M10Nut elastic M10
-
22570070500 Tie-rod capTie-rod cap
-
235347006 Retainer ringRetainer ring
-
2436009 RivetRivet
-
25414768000 Joint ball, R.H.Joint ball, R.H.
-
26506150300 Inside tie-rodInside tie-rod
-
27414768100 Joint ball L.H.Joint ball L.H.
-
28506150400 Half housingHalf housing
-
29506150500 Housing bushingHousing bushing
-
30506150600 Stopper plateStopper plate
-
31207787044 Carriage bolt M8x70Carriage bolt M8x70
-
32506151140 O-ringO-ring
-
33506147100 Main tubeMain tube
-
34277000142 Steering clampSteering clamp
-
35414491600 Steering supportSteering support
-
36506151196 ReinforcementReinforcement
-
3740010 Screw M8x55Screw M8x55
-
3833011 Nut elastic M8Nut elastic M8
-
395346200 Tie RodTie Rod
-
40506145800 R.H. steering armR.H. steering arm
-
40506145900 L.H. steering armL.H. steering arm
-
4140828 Allen screw M8x35Allen screw M8x35
-
425246233 Handle barHandle bar
-
435340464 GripGrip
-
44515175162 HeaterHeater
-
45512059111 Throttle cableThrottle cable
-
4631038 CirclipCirclip
-
4731035 CirclipCirclip
-
48414753300 WasherWasher
-
49512059153 Handle assyHandle assy
-
50572100900 Throttle handle housingThrottle handle housing
-
52414440800 ScrewScrew
-
53515175410 Switch killSwitch kill
-
54572100901 Switch coverSwitch cover
-
5542603 Male terminalMale terminal
-
575246129 CoverCover
-
58506151262 Steering pad foamSteering pad foam
-
5921003 HornHorn
-
60293550004 Dielectric greaseDielectric grease
-
61413711500 Synthetic greaseSynthetic grease
-
62414438700 PinPin
-
64414439000 CirclipCirclip
