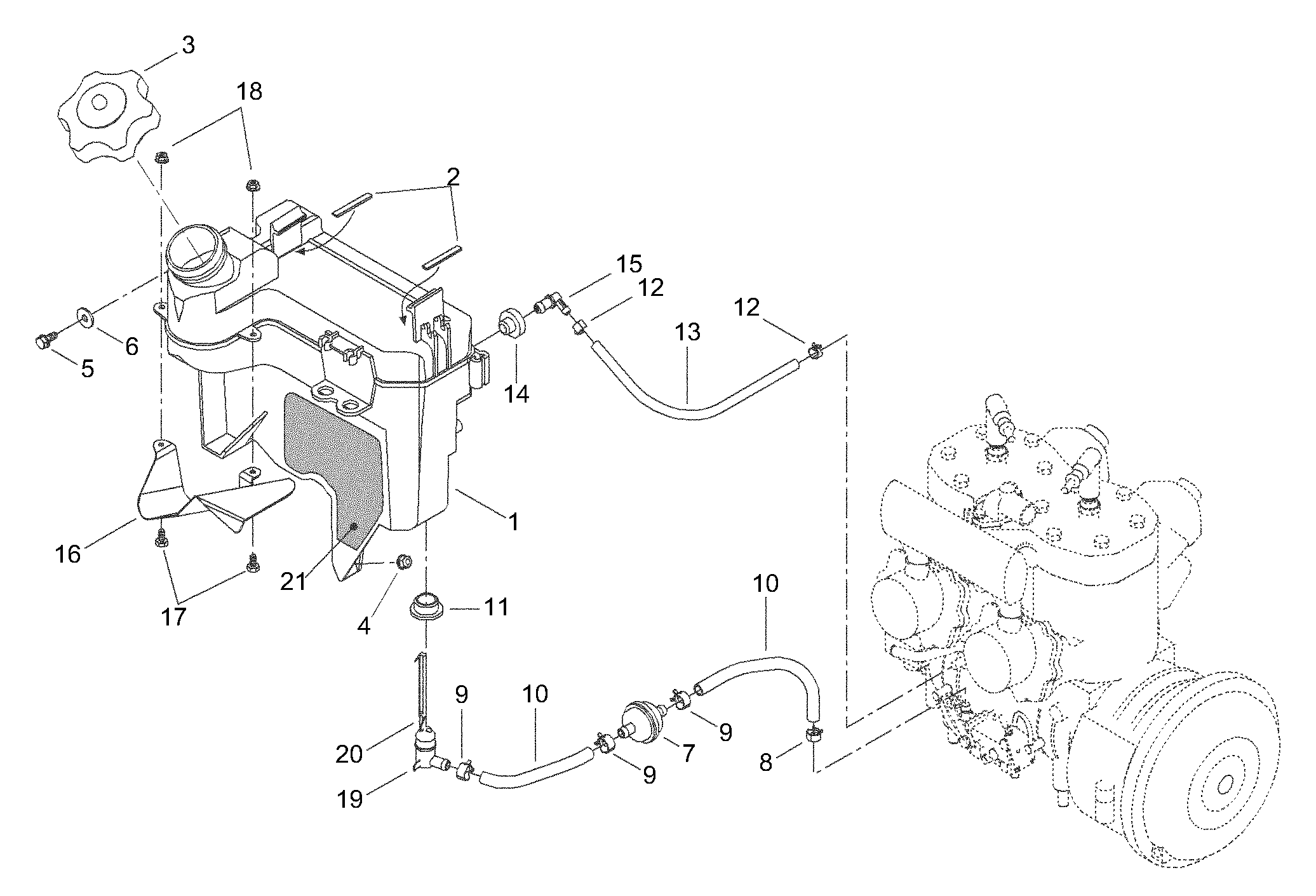

01- Oil Pump для BRP Lynx Enduro 500 Special - 2001
-
№АртикулНазвание
-
1519000037 Oil tankOil tank
-
239011 Protection trimProtection trim
-
3519000017 Oil tank capOil tank cap
-
433200 Elastic flange nut M6Elastic flange nut M6
-
540327 Self tapping screw M6Self tapping screw M6
-
620017 Serrated lock washerSerrated lock washer
-
7414536500 Oil filterOil filter
-
8414420700 ClampClamp
-
9414415200 ClampClamp
-
1039046 Hose 11/8Hose 11/8
-
11570023000 Seal for sensorSeal for sensor
-
12414554800 ClampClamp
-
1339038 Hose 6.5/9.5Hose 6.5/9.5
-
14570135100 GrommetGrommet
-
15414580700 Male connectorMale connector
-
16519000018 DeflectorDeflector
-
1740026 Screw M5x12Screw M5x12
-
1833062 Elastic flange nut M5Elastic flange nut M5
-
19414681800 Switch-levelSwitch-level
-
20414681900 FloatFloat
-
21519000023 Reflective sheetReflective sheet
