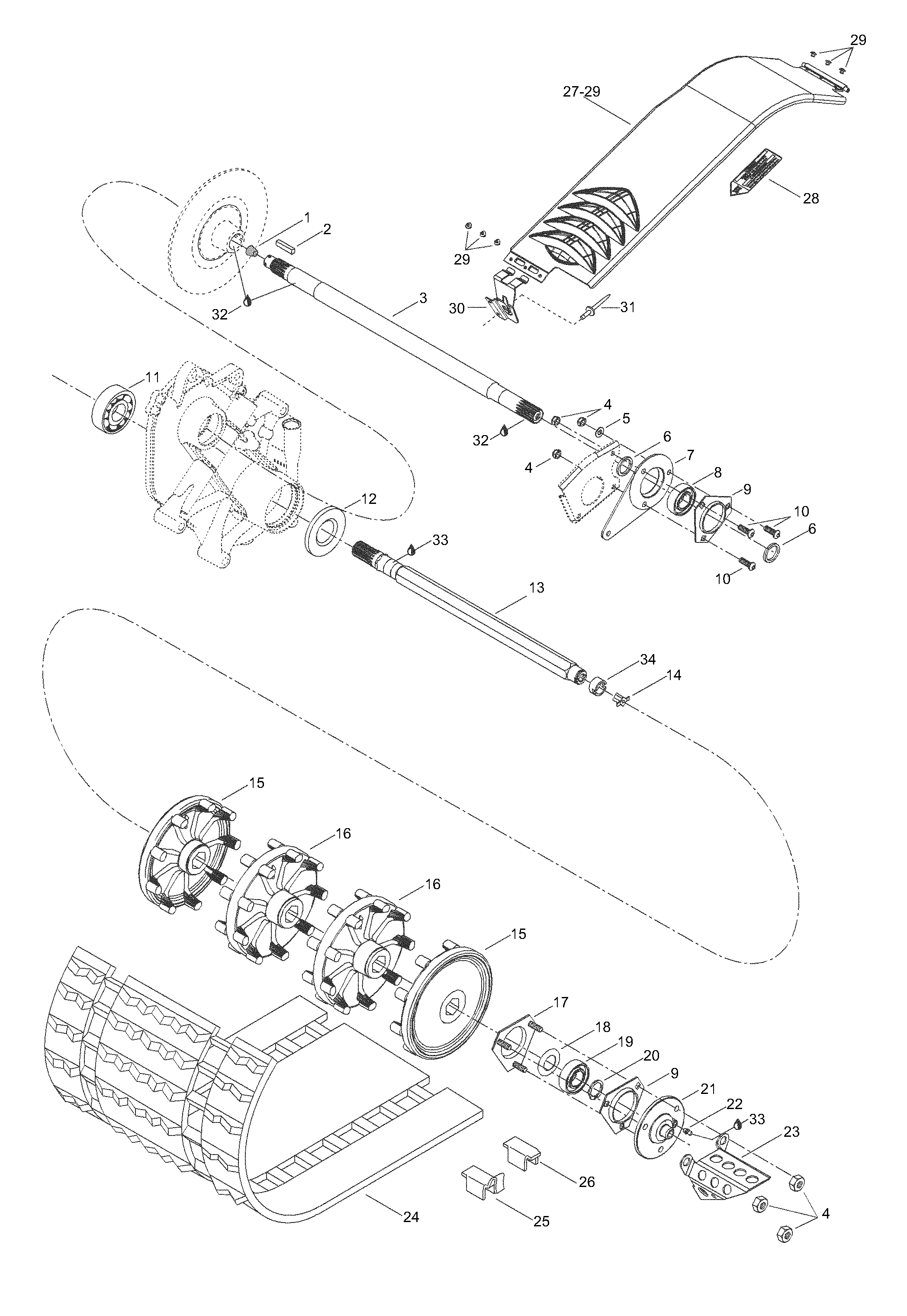

05- Drive Axle для BRP Lynx Enduro 500 Special - 2001
-
№АртикулНазвание
-
1414784800 CorkCork
-
2507021300 KeyKey
-
3501026300 Clutch shaftClutch shaft
-
433011 Nut elastic M8Nut elastic M8
-
520004 WasherWasher
-
6504149100 SpacerSpacer
-
7080044200 Casting spacerCasting spacer
-
8504152007 Bearing ballBearing ball
-
9501025000 FlangeFlange
-
1040344 Allen screw M8Allen screw M8
-
11405408500 BearingBearing
-
12504151918 Oil sealOil seal
-
135346820 Drive axle assy. Includes items 13 thru 16Drive axle assy. Includes items 13 thru 16
-
13501027400 Drive axleDrive axle
-
14572010100 Insert speedoInsert speedo
-
15504151782 Half sprocket 9 teethHalf sprocket 9 teeth
-
16504151781 Sprocket 9 teethSprocket 9 teeth
-
17504151860 Bearing housingBearing housing
-
18501017400 Ball bearing protectorBall bearing protector
-
19405408600 BearingBearing
-
20371910200 CirclipCirclip
-
21504151836 FlangeFlange
-
2234011 Grease fittingGrease fitting
-
23517290100 Cable protectorCable protector
-
24570212600 Track. Includes items 24 thru 26Track. Includes items 24 thru 26
-
25500003400 Guide cleatGuide cleat
-
27417300002 Belt guard assy. Includes items 27 thru 29Belt guard assy. Includes items 27 thru 29
-
28516000132 Warning labelWarning label
-
29390402200 RivetRivet
-
30417300001 BracketBracket
-
3136489 RivetRivet
-
32293800023 Loctite 767, antiseizeLoctite 767, antiseize
-
33413711500 Synthetic greaseSynthetic grease
