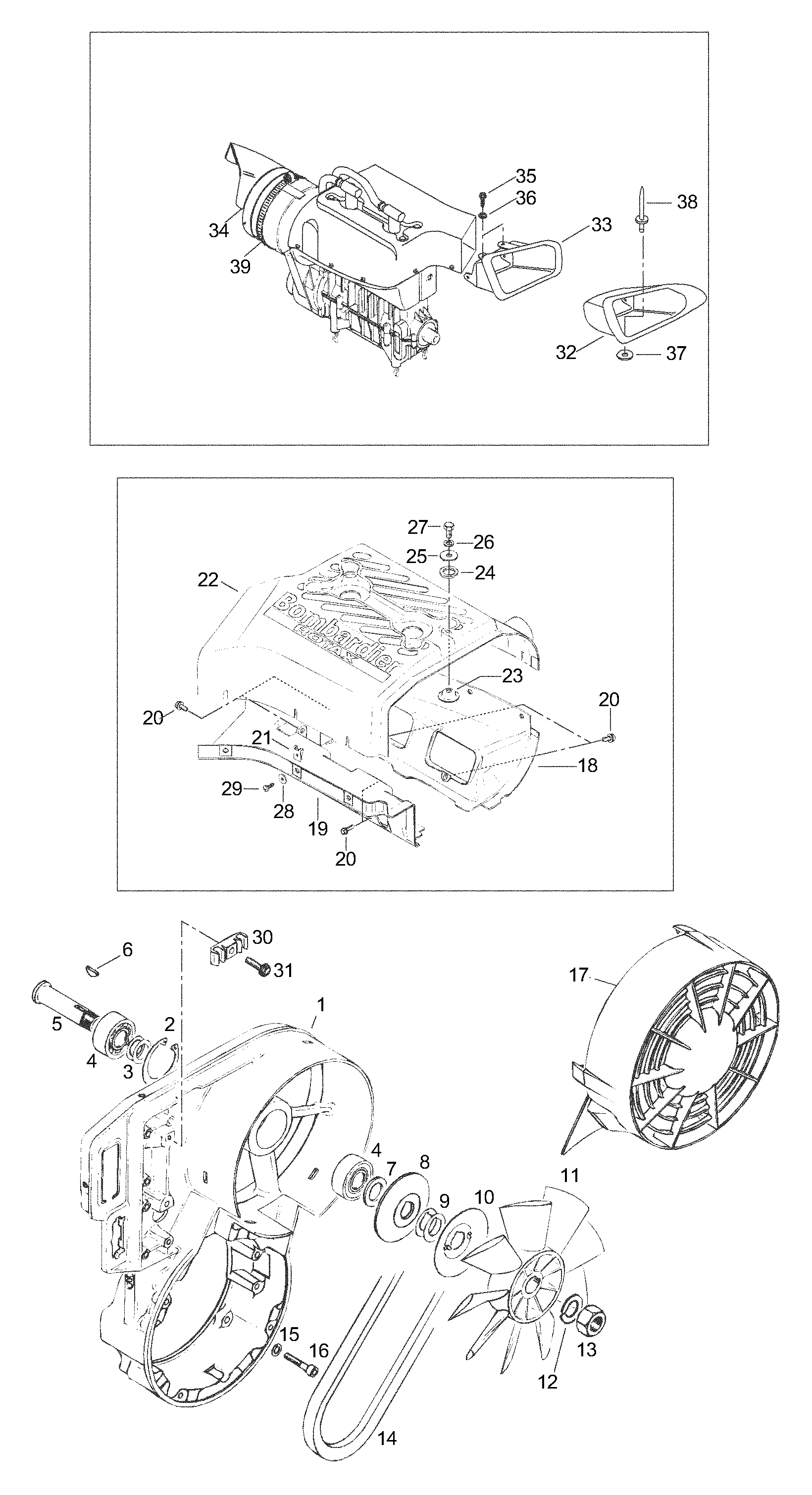

01- Fan Housing для BRP Lynx Explorer 500 - 2001
-
№АртикулНазвание
-
1420912203 Fan housingFan housing
-
2420945880 Retaining ringRetaining ring
-
3420244585 ShimShim
-
4405406100 BearingBearing
-
5420937940 ShaftShaft
-
6420246015 KeyKey
-
7420827650 Distance sleeveDistance sleeve
-
8420980496 Belt diskBelt disk
-
9420827080 Adj.washer 0.5Adj.washer 0.5
-
9420827082 Adj.washer 0.2Adj.washer 0.2
-
10420980523 Protection washerProtection washer
-
11420866292 FanFan
-
12420945756 Spring washerSpring washer
-
13420942285 NutNut
-
14414630800 V-beltV-belt
-
1520052 Spring washerSpring washer
-
16205063044 Allen screw M6x30Allen screw M6x30
-
17420975695 Fan coverFan cover
-
18420811390 Lower cowl (exhaust)Lower cowl (exhaust)
-
19420811395 Lower cowlLower cowl
-
20420240385 Taptite Screw M6x12Taptite Screw M6x12
-
21417300005 Sping NutSping Nut
-
22420810603 Upper caseUpper case
-
23420827817 Cup washerCup washer
-
24420960865 Rubber washerRubber washer
-
25420227935 WasherWasher
-
2620014 Lock washerLock washer
-
27207181644 Screw M8x16Screw M8x16
-
28420926180 WasherWasher
-
29417300006 Selftapping screwSelftapping screw
-
30420860940 Wire clampWire clamp
-
31420941250 Taptite screw M6x20Taptite screw M6x20
-
325245799 Outlet DuctOutlet Duct
-
33572083900 Outlet ductOutlet duct
-
34572058500 Air deflectorAir deflector
-
3540870 ScrewScrew
-
36732900047 WasherWasher
-
3720008 WasherWasher
-
3836036 RivetRivet
-
39408803700 Gear clamp tridonGear clamp tridon
