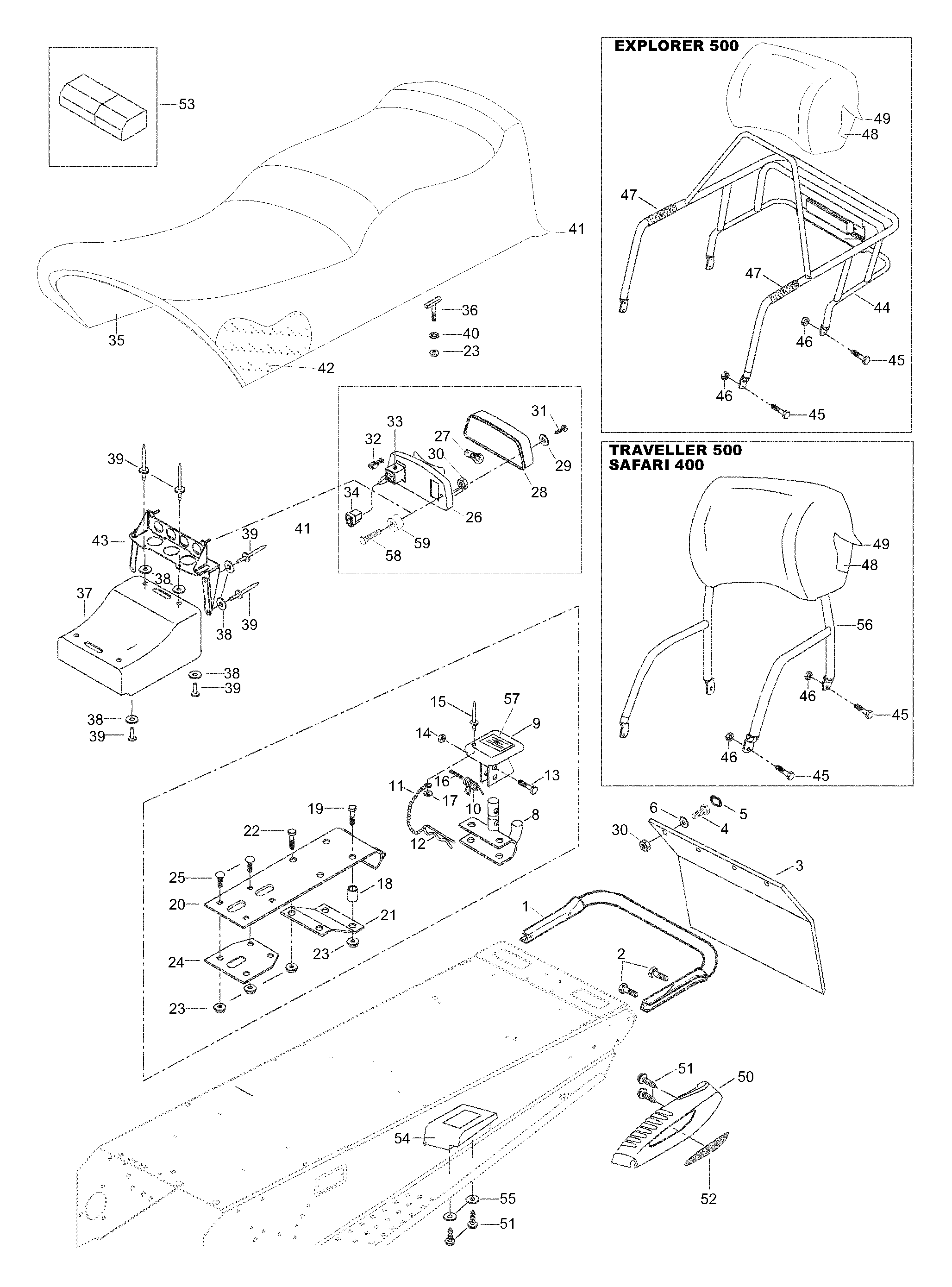

09- Body для BRP Lynx Explorer 500 - 2001
-
№АртикулНазвание
-
1517243800 Rear bumperRear bumper
-
240336 Screw M8x20Screw M8x20
-
35246859 SnowguardSnowguard
-
440078 Screw M6x22Screw M6x22
-
5415073300 CapCap
-
620009 WasherWasher
-
75346714 Hitch assy. Includes items 7 thru 25Hitch assy. Includes items 7 thru 25
-
8517199300 HitchHitch
-
9517152700 Prot-hitchProt-hitch
-
10517152800 SpringSpring
-
11517152900 ChainChain
-
12114045200 PinPin
-
1340083 Screw M6x30Screw M6x30
-
1433010 Nut elastic M6Nut elastic M6
-
15390409400 RivetRivet
-
16732804000 Pin-fjaderPin-fjader
-
17391303100 WasherWasher
-
18517191700 SleeveSleeve
-
1940193 Screw M6x50Screw M6x50
-
20511000019 SupportSupport
-
21511000022 ReinforcementReinforcement
-
2240865 Screw M6x18Screw M6x18
-
2333200 Nut M6Nut M6
-
24517256100 Inner plateInner plate
-
2540866 Screw M6x20Screw M6x20
-
26414979400 Tail lamp housingTail lamp housing
-
27410504000 BulpBulp
-
28414513700 LensLens
-
29414516400 WasherWasher
-
3033200 Nut M6Nut M6
-
3140613 ScrewScrew
-
32515175252 Female terminalFemale terminal
-
33515175250 Dimmer switch blockDimmer switch block
-
34409204200 Connector housingConnector housing
-
35510003597 Seat subSeat sub
-
36732601221 T-screwT-screw
-
37572051200 Rear trunkRear trunk
-
38234051410 WasherWasher
-
3936036 RivetRivet
-
40732610072 Nut pushNut push
-
415245232 Seat coverSeat cover
-
425245769 Seat foamSeat foam
-
445243138 RackRack
-
4540316 Screw M8x20Screw M8x20
-
4633201 Nut elastic M8Nut elastic M8
-
47415050300 GripGrip
-
48539399 Back rest stoppningBack rest stoppning
-
495340917 Back rest coverBack rest cover
-
50572092200 R.H. molding assyR.H. molding assy
-
50572092300 L.H. molding assyL.H. molding assy
-
5140870 ScrewScrew
-
52516000241 R.H. rear reflectorR.H. rear reflector
-
52516000242 L.H. rear reflectorL.H. rear reflector
-
535445403 Tool box (with tools)Tool box (with tools)
-
54572088700 R.H. footrestR.H. footrest
-
54572088800 L.H. footrestL.H. footrest
-
55224061121 WasherWasher
-
57414998500 Instruction labelInstruction label
-
5840065 Screw M6x45Screw M6x45
-
59549103 SleeveSleeve
