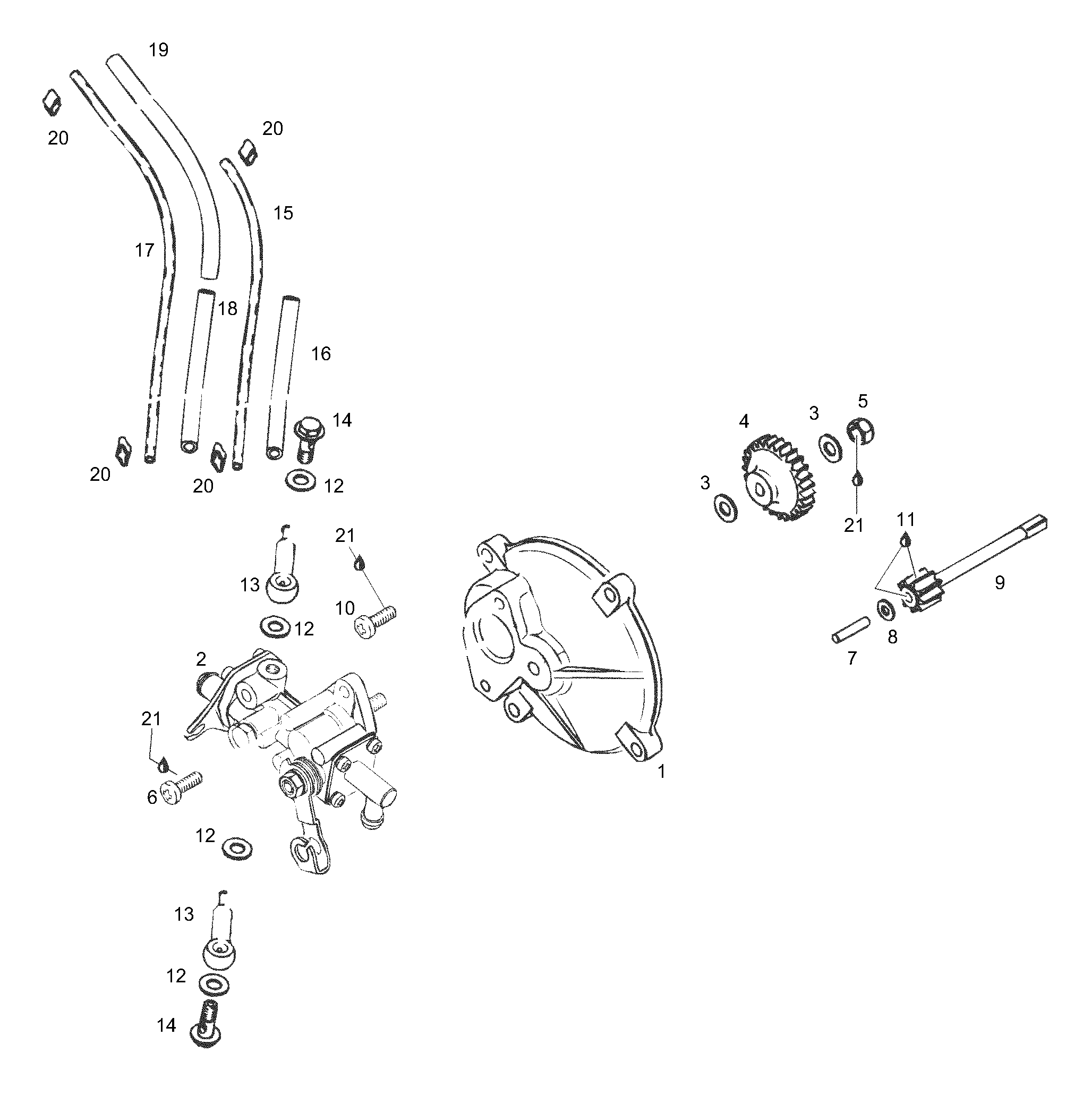

01- Oil Pump для BRP Lynx Explorer 500 - 2001
-
№АртикулНазвание
-
1420910160 Mounting flangeMounting flange
-
2420887996 Oil pump, assyOil pump, assy
-
3420927945 WasherWasher
-
4420935930 Gear, Z-27Gear, Z-27
-
5232561414 Lock nut, M6Lock nut, M6
-
6420841970 ScrewScrew
-
7420832260 PinPin
-
8420244073 WasherWasher
-
9420935970 Gear Z-9Gear Z-9
-
10420841970 Screw M5.5x16Screw M5.5x16
-
11413707000 Molykote 111Molykote 111
-
12404146600 Gasket ringGasket ring
-
13420956010 Chock valve assyChock valve assy
-
14404146800 Banjo boltBanjo bolt
-
15414413800 Oil lineOil line
-
16420960750 Isolation hose, 90mmIsolation hose, 90mm
-
17414413800 Oil lineOil line
-
18420960728 Isolation hose, 120mmIsolation hose, 120mm
-
19420960729 Isolation hose, 150mmIsolation hose, 150mm
-
20420853840 Clamp, 3-5 mmClamp, 3-5 mm
-
21293800060 Loctite 243, 10mlLoctite 243, 10ml
