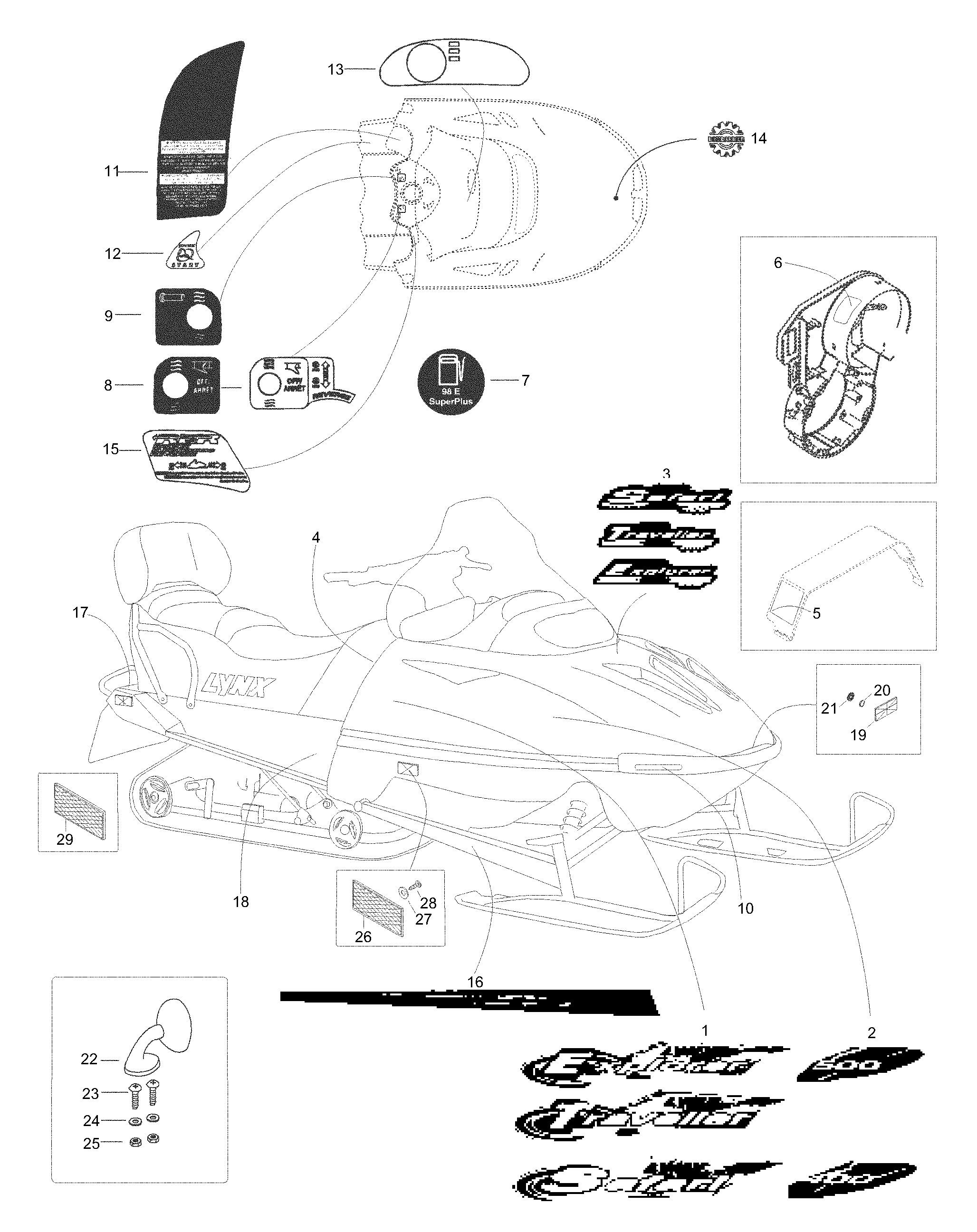

09- Equipment для BRP Lynx Explorer 500 - 2001
-
№АртикулНазвание
-
5146566 Hood decal kit (incl. decals 1, 2 and 3)Hood decal kit (incl. decals 1, 2 and 3)
-
5143327 Instruction decals (incl. decals 4, 5 and 6)Instruction decals (incl. decals 4, 5 and 6)
-
15346478 R.H. hood decalR.H. hood decal
-
15346479 L.H. hood decalL.H. hood decal
-
25346760 R.H. hood decal, frontR.H. hood decal, front
-
25346761 L.H. hood decal, frontL.H. hood decal, front
-
35346480 Front hood decalFront hood decal
-
4544068 Oil check decalOil check decal
-
5546820 Instruction labelInstruction label
-
6544073 Fan Belt DecalFan Belt Decal
-
75447019 Fuel decalFuel decal
-
8516000262 Heat thumb decalHeat thumb decal
-
9414898500 Dash decalDash decal
-
10418001009 Reflector decalReflector decal
-
11414935000 Warning decalWarning decal
-
12516000271 Electric decalElectric decal
-
135347036 Dash dekalDash dekal
-
14516000983 Logo BombardierLogo Bombardier
-
15418001602 Reverse decalReverse decal
-
165346513 Swing Arm Decal R.H.Swing Arm Decal R.H.
-
165346483 Swing Arm Decal L.H.Swing Arm Decal L.H.
-
175447074 Warning labelWarning label
-
185445636 CE-decalCE-decal
-
1921148 Reflector, WhiteReflector, White
-
2048227 O-ringO-ring
-
2141034 Locking ringLocking ring
-
22414971910 R.H. mirrorR.H. mirror
-
22414972010 L.H. mirrorL.H. mirror
-
23222842065 Screw M4x20Screw M4x20
-
2420008 WasherWasher
-
25232541414 Nut elastic M4Nut elastic M4
-
26414510200 Reflector, yellowReflector, yellow
-
2720018 WasherWasher
-
2840070 Screw M5x10Screw M5x10
-
2921121 Reflector, yellowReflector, yellow
