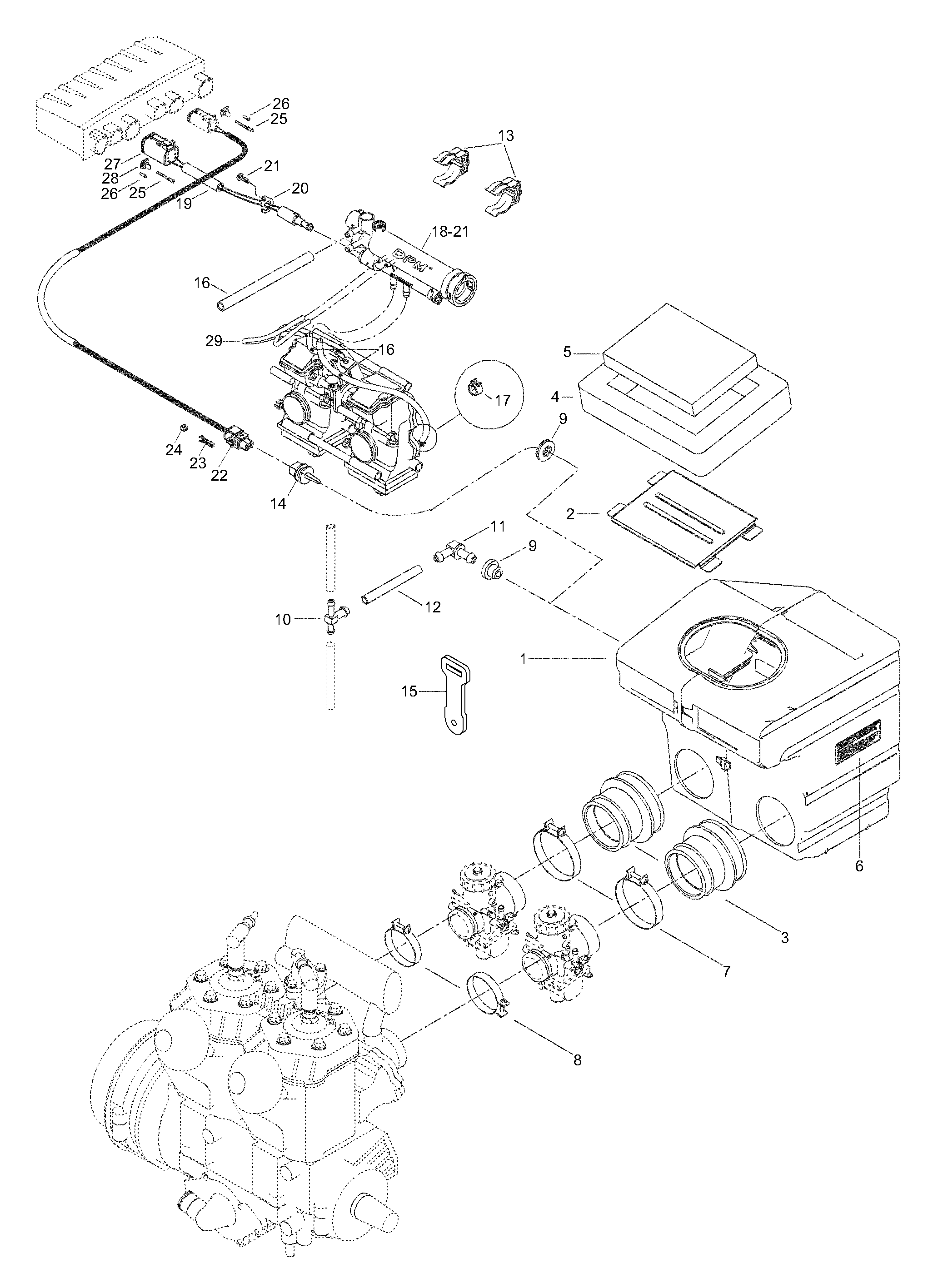

01- Air Silencer для BRP Lynx Rave 800 Special - 2001
-
№АртикулНазвание
-
1508000186 Air intake assy. Includes items 1 thru 6Air intake assy. Includes items 1 thru 6
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516000130 Label cautionLabel caution
-
727046 ClampClamp
-
8512059305 ClampClamp
-
9570065500 GrommetGrommet
-
9513032908 GrommetGrommet
-
11414580600 ConnectorConnector
-
1239038 Hose 6.5/9.5Hose 6.5/9.5
-
13512058919 SupportSupport
-
14270600000 Air temperature sensorAir temperature sensor
-
15512059372 LatchLatch
-
1639004 HoseHose
-
17414554800 ClampClamp
-
18512059114 Pressure manifold assy. Includes items 18 thru 21Pressure manifold assy. Includes items 18 thru 21
-
19515175271 Harness assyHarness assy
-
20415061600 Solenoid lockSolenoid lock
-
21241140060 Screw K40x10Screw K40x10
-
22278001005 Connector housingConnector housing
-
23278000998 Female terminalFemale terminal
-
24278000999 SealSeal
-
25409015100 Female terminalFemale terminal
-
26515175303 PlugPlug
-
27409015400 Connector housingConnector housing
-
28409014900 LockLock
-
29404161880 HoseHose
