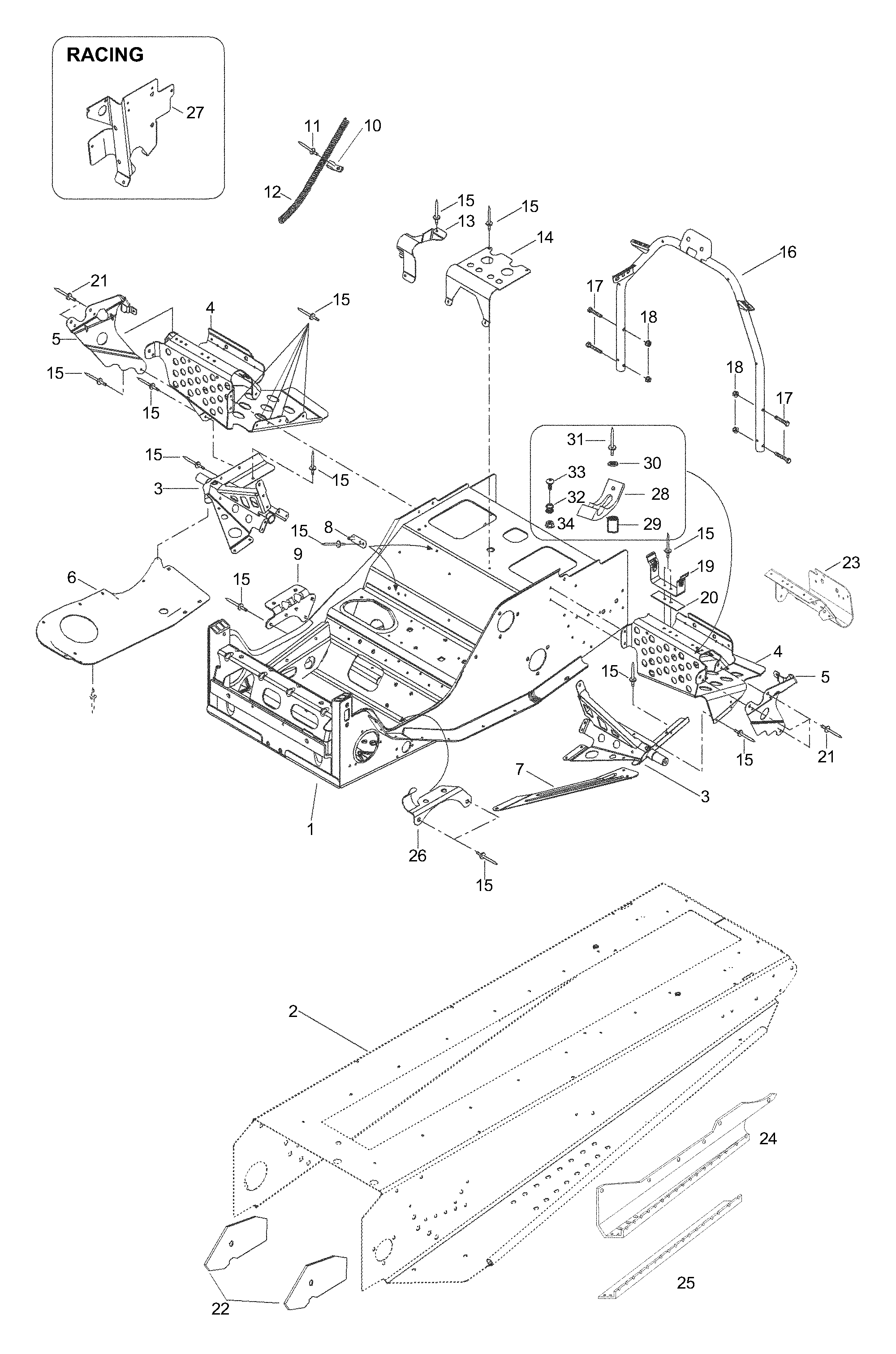

09- Frame для BRP Lynx Rave 800 Special - 2001
-
№АртикулНазвание
-
15146668 Frame assy, red. Includes items 1 thru 2Frame assy, red. Includes items 1 thru 2
-
35246775 R.H. supportR.H. support
-
35246776 L.H. supportL.H. support
-
45146822 R.H. front footrestR.H. front footrest
-
45146823 L.H. front footrestL.H. front footrest
-
55146912 R.H. footrest reinforcem.R.H. footrest reinforcem.
-
55146913 L.H. footrest reinforcem.L.H. footrest reinforcem.
-
6518319760 R.H. bottom pan plateR.H. bottom pan plate
-
7518322119 L.H. reinf. plateL.H. reinf. plate
-
8518319728 Double bracketDouble bracket
-
9518206300 Muffler supportMuffler support
-
1027092 ClipClip
-
1136036 RivetRivet
-
12518321569 Rope guideRope guide
-
13518319762 Hose supportHose support
-
14518310400 Air intake supportAir intake support
-
1536489 RivetRivet
-
16518321957 Handle steering supp.Handle steering supp.
-
1740003 Screw M6x35Screw M6x35
-
1833200 Nut M6Nut M6
-
19518202100 Pulley Guard bracketPulley Guard bracket
-
20518207500 ReinforcementReinforcement
-
21390402200 RivetRivet
-
225346861 SupportSupport
-
235146917 R.H. toe holdR.H. toe hold
-
235146918 L.H. toe holdL.H. toe hold
-
26515175254 Cable supportCable support
-
28531955 LatchLatch
-
29543417 SleeveSleeve
-
30543392 WasherWasher
-
3136072 RivetRivet
-
32542307 Counter rollCounter roll
-
3340168 Screw M4x25Screw M4x25
-
3433008 Nut M4Nut M4
