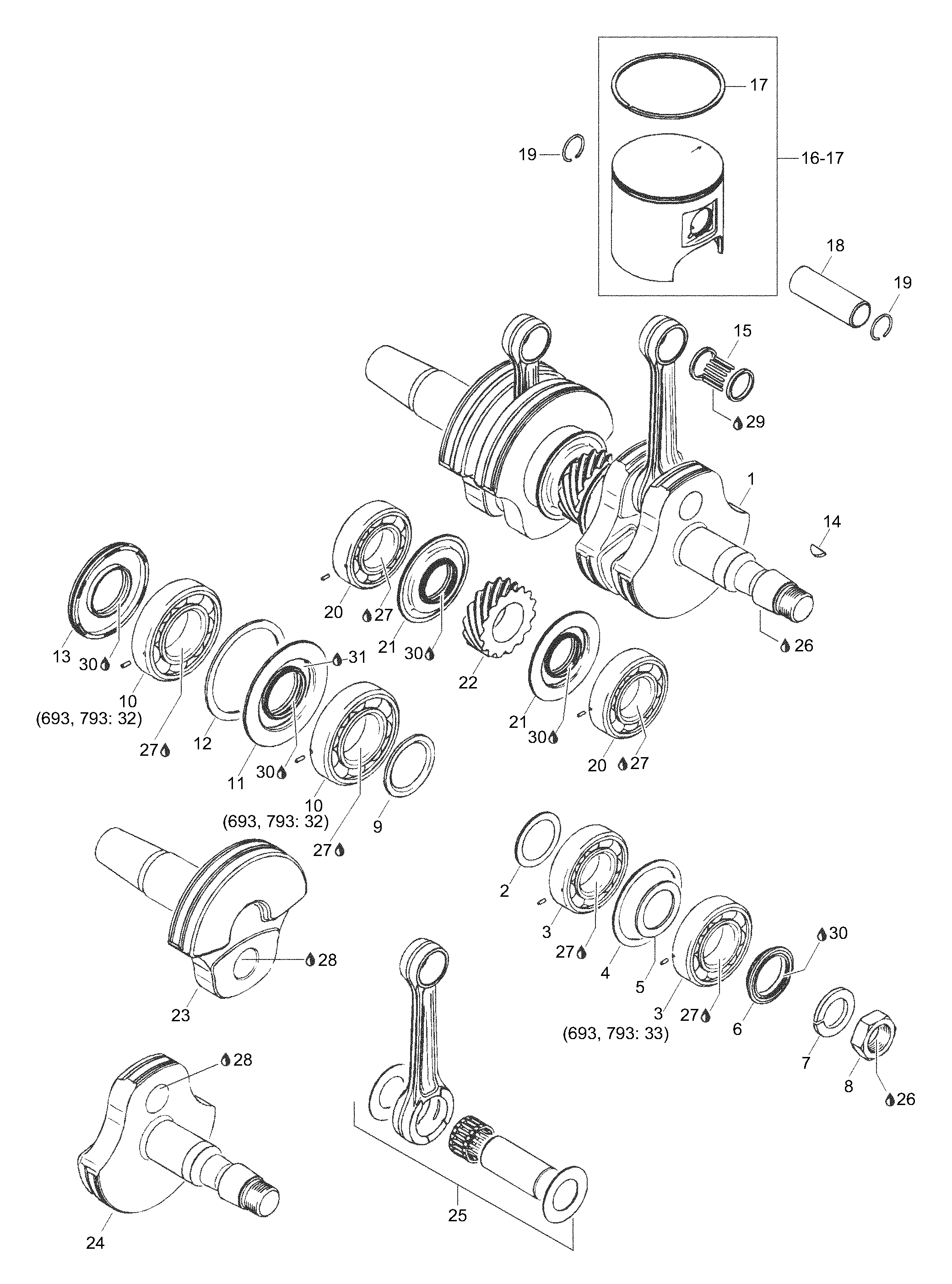

01- Crankshaft Assy для BRP Lynx Rave 800 Special - 2001
-
№АртикулНазвание
-
1420888401 Crankshaft assy. Includes items 1 thru 11Crankshaft assy. Includes items 1 thru 11
-
3420832635 Ball bearing assyBall bearing assy
-
6420931790 Oil sealOil seal
-
7420945759 Lock washerLock washer
-
8420842230 Nut M22Nut M22
-
11420931910 Oil sealOil seal
-
12420926190 Retaining diskRetaining disk
-
13420931285 Oil sealOil seal
-
14420246015 Woodruff-keyWoodruff-key
-
15420832425 Needle cageNeedle cage
-
16420888436 Piston 81.85 mm. Includes items 16 thru 17Piston 81.85 mm. Includes items 16 thru 17
-
17420815215 Retangular ringRetangular ring
-
18420916370 Piston pinPiston pin
-
19420845106 CirclipCirclip
-
20420832575 Bearing 6207 assyBearing 6207 assy
-
21420931455 Oil sealOil seal
-
22420834355 Central gear 15TCentral gear 15T
-
23420819030 Crankshaft P.T.O.-sideCrankshaft P.T.O.-side
-
24420819061 Crankshaft MAG. sideCrankshaft MAG. side
-
25420888404 Rod repair kit P.T.O.-sidRod repair kit P.T.O.-sid
-
25420888403 Rod repair kit MAG.-sideRod repair kit MAG.-side
-
26420899785 Loctite 221, violet, 10ccLoctite 221, violet, 10cc
-
27420297434 Loctite anti seizeLoctite anti seize
-
28420897340 Loctite 14486, 250mlLoctite 14486, 250ml
-
30420899271 Klueber petamoKlueber petamo
-
31293550021 Isoflex grease, 50gIsoflex grease, 50g
-
32420832601 Ball bearing assyBall bearing assy
-
33420832575 Ball bearing assyBall bearing assy
