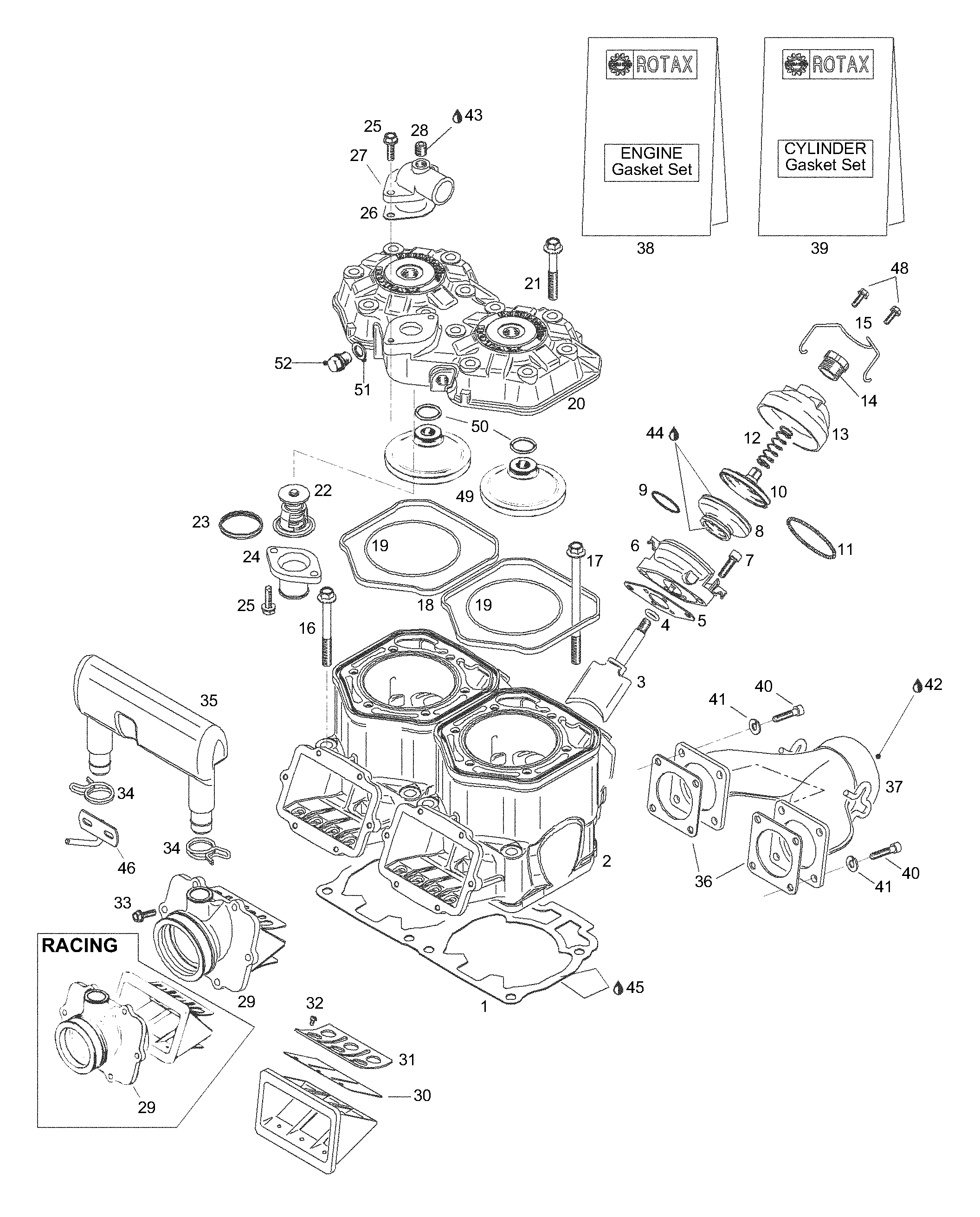

01- Cylinder для BRP Lynx Rave 800 Special - 2001
-
№АртикулНазвание
-
1420931838 Gasket, double 0.5 mmGasket, double 0.5 mm
-
1420931837 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420931964 Gasket, double 0.7 mmGasket, double 0.7 mm
-
1420931839 Gasket, double 0.8 mmGasket, double 0.8 mm
-
2420923811 Cylinder, nicasilCylinder, nicasil
-
3420854465 Exhaust valveExhaust valve
-
4420430110 O-ringO-ring
-
5420931542 GasketGasket
-
6420854450 Valve rod housingValve rod housing
-
7420840861 Allen screw M6x25Allen screw M6x25
-
8420260729 BellowsBellows
-
9420838253 Hose springHose spring
-
10420854449 Exhaust valve pistonExhaust valve piston
-
11420239048 Compression springCompression spring
-
12420239941 Spring, blueSpring, blue
-
13420911555 Valve coverValve cover
-
14420241221 Adjustment screwAdjustment screw
-
15420838083 Spring clipSpring clip
-
16420640524 Screw M10x80Screw M10x80
-
17420640534 Screw M10x120Screw M10x120
-
18420931590 Square ringSquare ring
-
19420931410 O-ringO-ring
-
20420923821 Cylinderhead, redCylinderhead, red
-
21420941621 Screw M8x56,5Screw M8x56,5
-
22420922515 ThermostatThermostat
-
23420931270 Thermostat gasketThermostat gasket
-
24420922025 Water outlet socketWater outlet socket
-
25420941250 Screw M6x20Screw M6x20
-
26420850338 GasketGasket
-
27420922062 Bent otlet socketBent otlet socket
-
28420240480 Plug screwPlug screw
-
29420867870 Reed valve support assy. Includes items 29 thru 32Reed valve support assy. Includes items 29 thru 32
-
30420924680 Reed pedalReed pedal
-
31420924695 Reed pedal stopReed pedal stop
-
32420941215 Screw M3x5Screw M3x5
-
33420941925 Screw M5x16Screw M5x16
-
34420851440 ClampClamp
-
35420867817 Intake resonatorIntake resonator
-
36420931850 GasketGasket
-
37420973710 Exhaust manifoldExhaust manifold
-
38420888740 Gasket kit, engineGasket kit, engine
-
39420888745 Gasket kit, cylinderGasket kit, cylinder
-
4040052 Allen screw M6x20Allen screw M6x20
-
4120052 Lock washerLock washer
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
43420899785 Loctite 221, violet, 10ccLoctite 221, violet, 10cc
-
45293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
46512059369 HookHook
