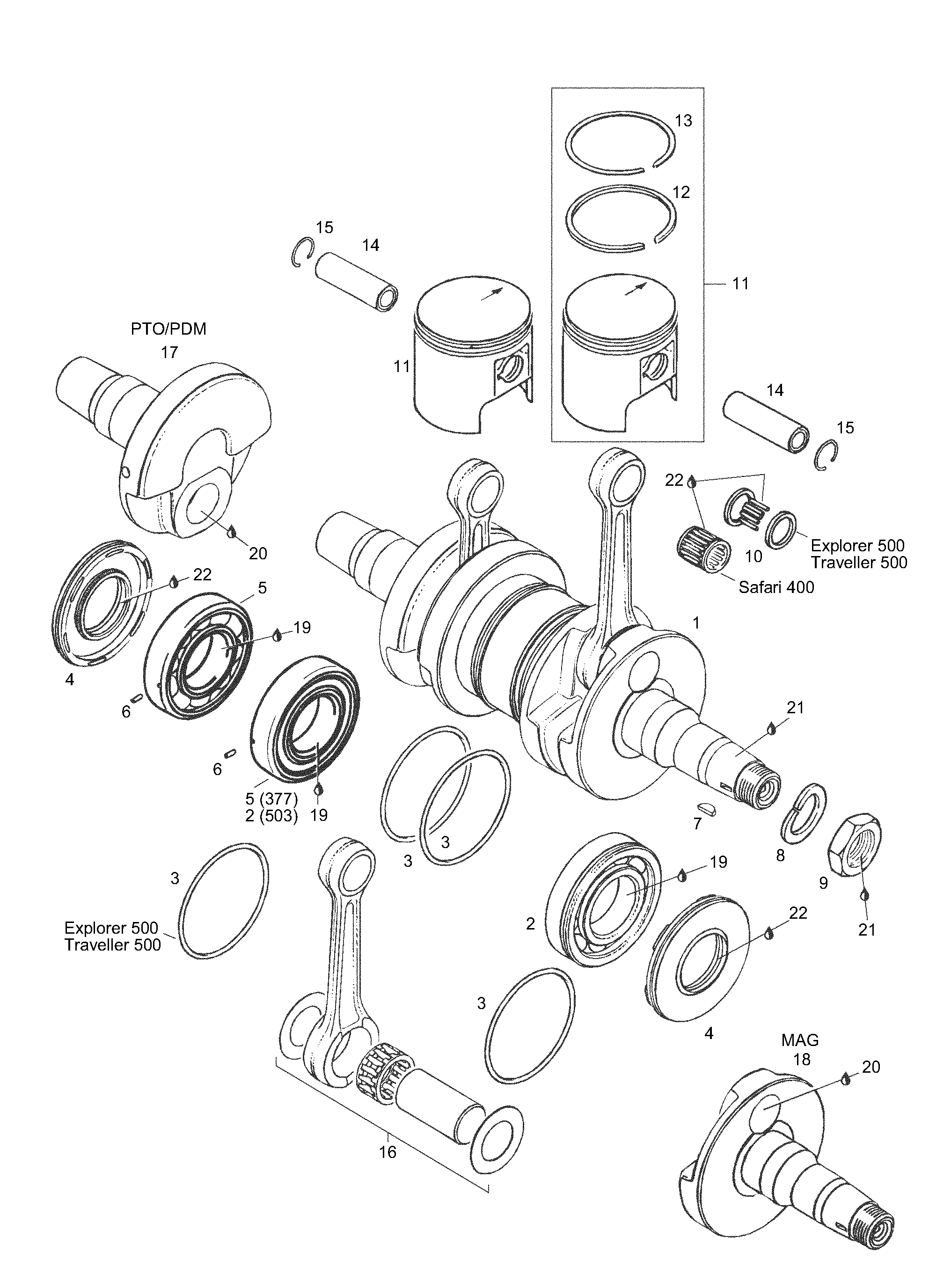

01- Crankshaft Assy для BRP Lynx Traveller 500 - 2001
-
№АртикулНазвание
-
1420888390 Crankshaft assy. Includes items 1 thru 7Crankshaft assy. Includes items 1 thru 7
-
2420832570 Bearing 6207Bearing 6207
-
3420250165 O-ringO-ring
-
4420831950 Oil sealOil seal
-
5420832574 B.Bearing 6207. Includes items 5 thru 6B.Bearing 6207. Includes items 5 thru 6
-
6420929972 Drive PinDrive Pin
-
7420246055 Woodruff KeyWoodruff Key
-
8420945759 Lock WasherLock Washer
-
9420842230 NutNut
-
10420832320 Needle cageNeedle cage
-
11420888175 Piston assy, 71.92mm. Includes items 11 thru 13Piston assy, 71.92mm. Includes items 11 thru 13
-
11420888176 Piston assy, 72.17mm. Includes items 11 thru 13Piston assy, 72.17mm. Includes items 11 thru 13
-
11420888177 Piston assy, 72.42mm. Includes items 11 thru 13Piston assy, 72.42mm. Includes items 11 thru 13
-
12420915850 Piston ring 72.00 mmPiston ring 72.00 mm
-
12420915851 Piston ring 72.25 mmPiston ring 72.25 mm
-
12420915852 Piston ring 72.50 mmPiston ring 72.50 mm
-
13420815200 Piston ring 72.00 mmPiston ring 72.00 mm
-
13420815201 Piston ring 72.25 mmPiston ring 72.25 mm
-
13420815202 Piston ring 72.50 mmPiston ring 72.50 mm
-
14420916186 Piston pinPiston pin
-
15420945735 CirclipCirclip
-
16420994564 Rod repair kitRod repair kit
-
17420818244 Crankhalf P.T.O sideCrankhalf P.T.O side
-
18420819020 Crankhalf MAG SideCrankhalf MAG Side
-
19420297434 Loctite 76710Loctite 76710
-
21420899785 Loctite 221, 10cm3Loctite 221, 10cm3
