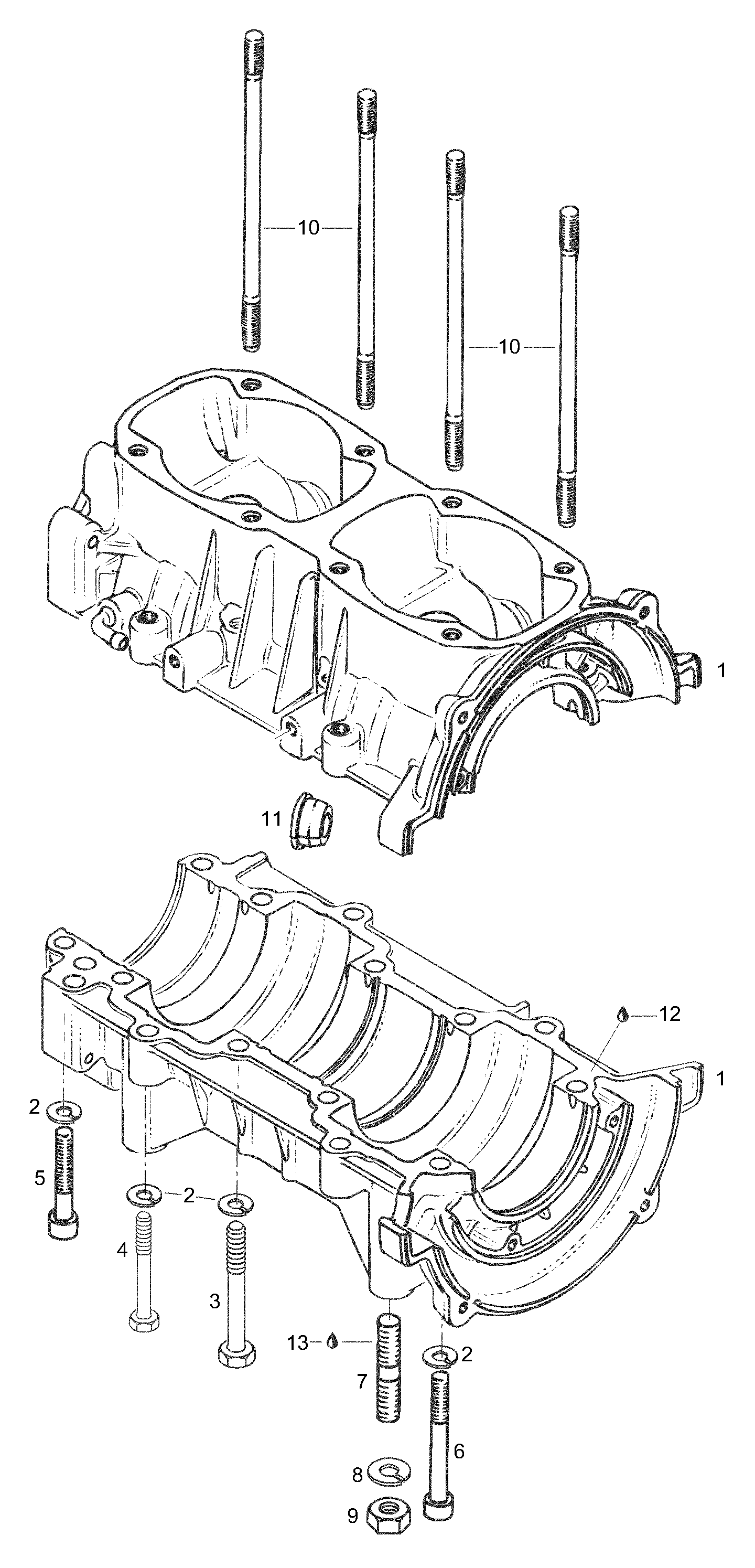

05- Crankcase для BRP Lynx Traveller 500 - 2001
-
№АртикулНазвание
-
1420888493 Crankcase assy (ref. 11 included)Crankcase assy (ref. 11 included)
-
220014 Spring washerSpring washer
-
3420841201 Screw M8x70Screw M8x70
-
4207084544 Screw M8x45Screw M8x45
-
5420841561 Allen screw M8x45Allen screw M8x45
-
6420841841 Allen screw M8x65Allen screw M8x65
-
7420940190 Stud M10Stud M10
-
820015 Lock washerLock washer
-
933004 Nut M10Nut M10
-
10420840556 Stud M8x173.5Stud M8x173.5
-
11420860962 Cable grommetCable grommet
-
12420899784 Loct 574/orange/50Loct 574/orange/50
-
13420899785 Loct 221/viol/6cm3Loct 221/viol/6cm3
