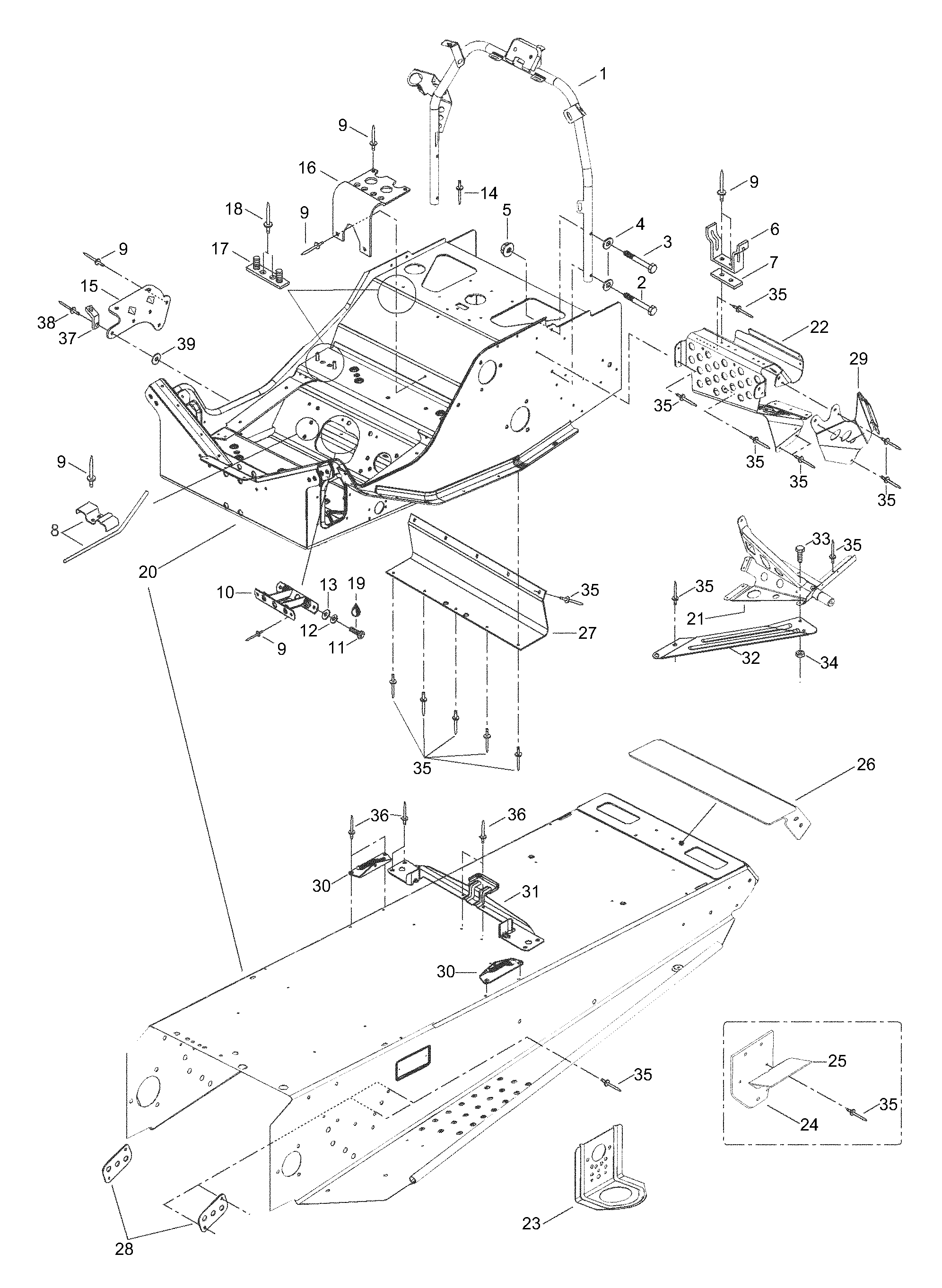

09- Frame для BRP Lynx Traveller 500 - 2001
-
№АртикулНазвание
-
1518321428 Handle steering supp.Handle steering supp.
-
240002 Screw M6x40Screw M6x40
-
340003 Screw M6x35Screw M6x35
-
420003 WasherWasher
-
533200 Elastic flanged nut M6Elastic flanged nut M6
-
6518202100 Pulley Guard bracketPulley Guard bracket
-
7518207500 ReinforcementReinforcement
-
8517276100 Rope guideRope guide
-
936489 RivetRivet
-
10518304741 Reinforcement plateReinforcement plate
-
1140036 Screw M8x20Screw M8x20
-
1220014 Spring washerSpring washer
-
13224081201 WasherWasher
-
1436009 RivetRivet
-
15518206300 Muffler supportMuffler support
-
16518310400 Air intake supportAir intake support
-
17518315300 Support plateSupport plate
-
18390909200 RivetRivet
-
19293800005 Loctite 270, 250mlLoctite 270, 250ml
-
205246993 Frame assyFrame assy
-
215246775 R.H. supportR.H. support
-
215246776 L.H. supportL.H. support
-
22518318933 R.H. front footrestR.H. front footrest
-
22518318934 L.H. front footrestL.H. front footrest
-
23518321495 Front bracketFront bracket
-
245346322 Rear bracketRear bracket
-
255346844 R.H. Bracket supportR.H. Bracket support
-
255346843 L.H. Bracket supportL.H. Bracket support
-
265247047 Rear capRear cap
-
27518321867 DeflectorDeflector
-
285446847 Front bracketFront bracket
-
29518308715 Upper plate R.H.Upper plate R.H.
-
29518308714 Upper plate L.H.Upper plate L.H.
-
30517266900 Tank bracket R.H.Tank bracket R.H.
-
30517267000 Tank bracket L.H.Tank bracket L.H.
-
315347070 Seat bracketSeat bracket
-
32518321958 R.H. reinf. plateR.H. reinf. plate
-
32518321959 L.H. reinf. plateL.H. reinf. plate
-
3340366 Screw M5x16Screw M5x16
-
3433062 Nut M5Nut M5
-
35390402200 RivetRivet
-
3636083 RivetRivet
