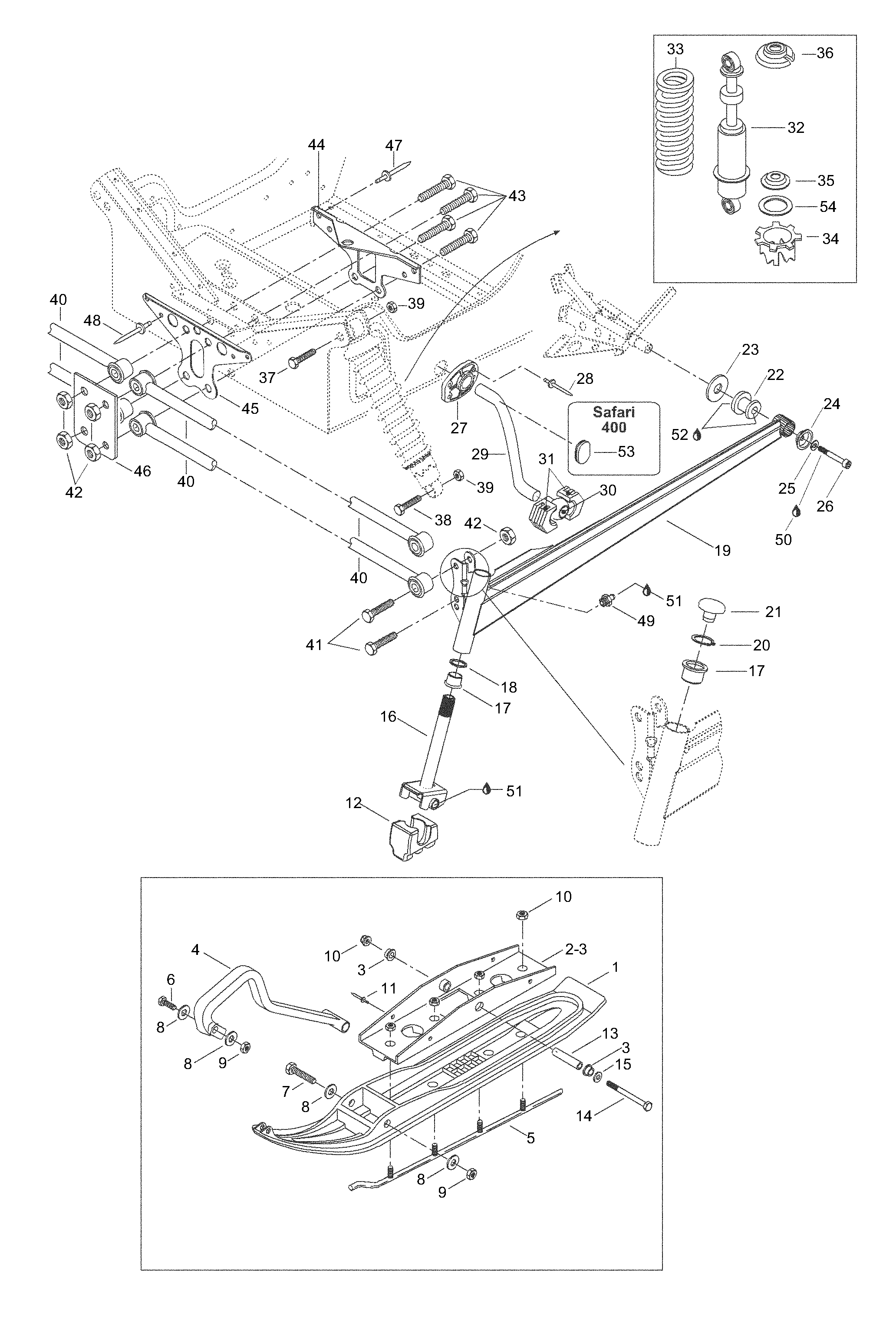

08- Front Suspension для BRP Lynx Traveller 500 - 2001
-
№АртикулНазвание
-
1505070190 Flexible ski linerFlexible ski liner
-
2505070055 Bridge assy. Includes items 2 thru 3Bridge assy. Includes items 2 thru 3
-
3505070001 SleeveSleeve
-
4572101000 Plastic handlePlastic handle
-
5860501900 Runner pairRunner pair
-
640009 Screw M8x50Screw M8x50
-
740869 Screw M8x100Screw M8x100
-
820004 WasherWasher
-
933011 Nut elastic M8Nut elastic M8
-
1033074 Nut M10Nut M10
-
11390911100 RivetRivet
-
12506151233 Ski stopperSki stopper
-
13506133300 SleeveSleeve
-
1440814 Screw M10x110Screw M10x110
-
1520105 Washer, hardenedWasher, hardened
-
16506151234 Ski legSki leg
-
17505070003 SleeveSleeve
-
18505070004 WasherWasher
-
19503189737 R.H. swing armR.H. swing arm
-
19503189738 L.H. swing armL.H. swing arm
-
20371910400 CirclipCirclip
-
21572091300 CapCap
-
22570062200 Rubber damperRubber damper
-
23503146700 WasherWasher
-
24506115800 Cup washerCup washer
-
2520014 Spring washerSpring washer
-
2640289 Allen screw M8x25Allen screw M8x25
-
27505070191 BushingBushing
-
28390402300 RivetRivet
-
29506134100 StabilisatorStabilisator
-
30506127300 Ball jointBall joint
-
31572069800 Block slidingBlock sliding
-
32505070012 ShockShock
-
33415075800 SpringSpring
-
34503183700 CamCam
-
35503187500 Spring guideSpring guide
-
36503140600 Spring stopperSpring stopper
-
3740019 Screw M10x60Screw M10x60
-
3840018 Screw M10x55Screw M10x55
-
3933082 Nut elastic M10Nut elastic M10
-
40580649700 ArmArm
-
41401250 Screw M12x50Screw M12x50
-
4233013 Nut elastic M12Nut elastic M12
-
4340023 Screw M10x100Screw M10x100
-
44517254900 Rear link plateRear link plate
-
45517254800 Front link plateFront link plate
-
46518306700 SupportSupport
-
47390909200 RivetRivet
-
4836070 RivetRivet
-
4934011 Crease nippleCrease nipple
-
50293800060 Loctite 243, 10mlLoctite 243, 10ml
-
51413711500 Synthetic greaseSynthetic grease
-
52293550014 GreaseGrease
