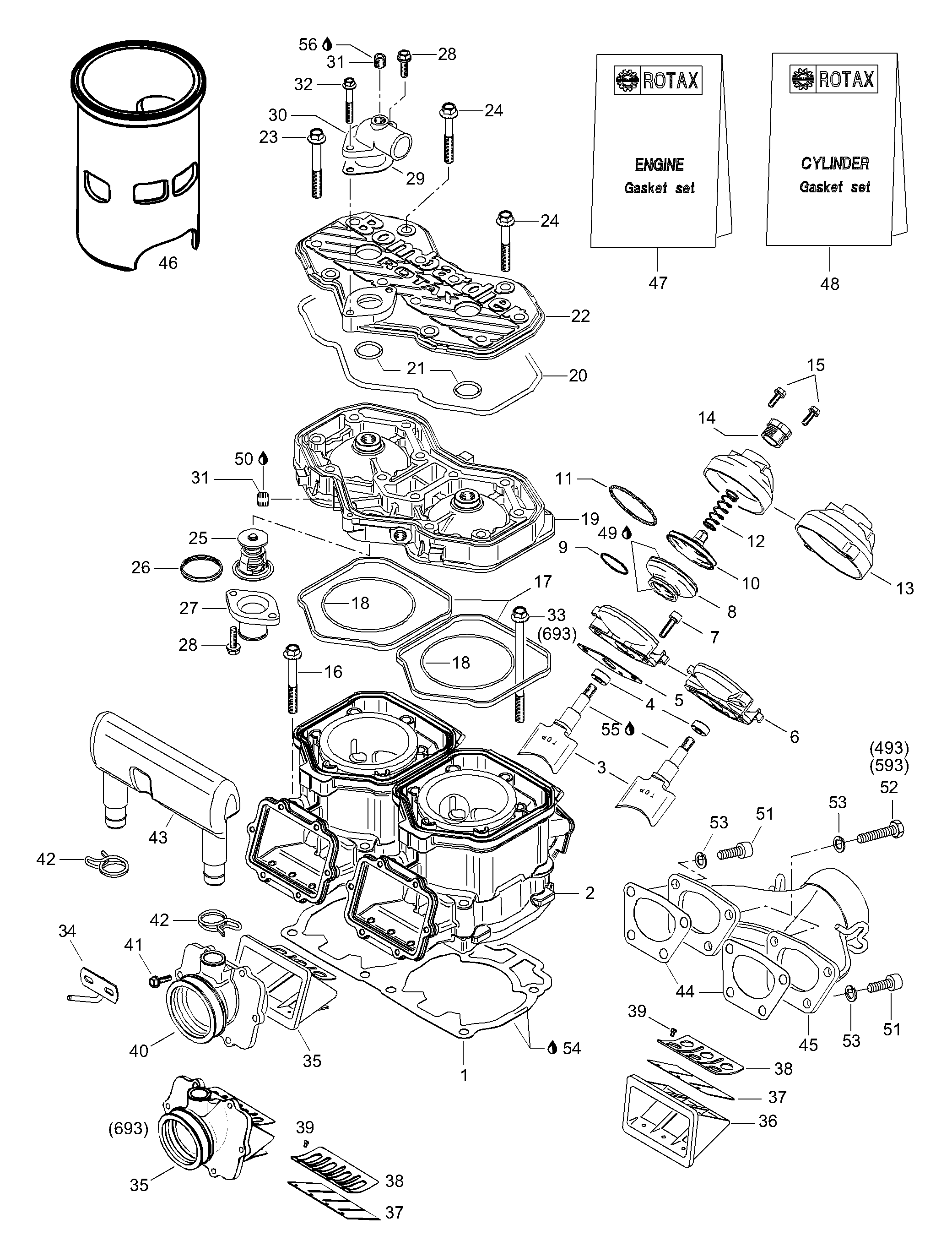

01- Cylinder для BRP Lynx Enduro 600 Special/RER - 2002
-
№АртикулНазвание
-
1420931581 Gasket, double 0.4 mmGasket, double 0.4 mm
-
1420931583 Gasket, double 0.5 mmGasket, double 0.5 mm
-
1420931582 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420931962 Gasket, double 0.7 mmGasket, double 0.7 mm
-
1420931584 Gasket, double 0.8 mmGasket, double 0.8 mm
-
2420613625 CylinderCylinder
-
3420854370 Exhaust valveExhaust valve
-
4420950730 Oil sealOil seal
-
5420250239 GasketGasket
-
6420854266 Valve rod housingValve rod housing
-
7420241930 Allen screw M6x20Allen screw M6x20
-
8420260723 BellowsBellows
-
9420838253 Hose springHose spring
-
10420854449 Exhaust valve pistonExhaust valve piston
-
11420239048 Compression springCompression spring
-
12420239944 Spring, brownSpring, brown
-
13420911552 Valve coverValve cover
-
14420241220 Adjustment screwAdjustment screw
-
15420841555 Screw M5x20Screw M5x20
-
16420640951 Screw M8x68.5Screw M8x68.5
-
17420931590 Square ringSquare ring
-
18420850540 O-ringO-ring
-
19420923452 Cylinderhead, greyCylinderhead, grey
-
20420950320 O-ringO-ring
-
21420430782 O-ringO-ring
-
22420923460 Cylinderh. cover, greyCylinderh. cover, grey
-
23420841306 Screw M8x65Screw M8x65
-
24420941621 Screw M8x56,5Screw M8x56,5
-
25420922515 ThermostatThermostat
-
26420931270 Thermostat gasketThermostat gasket
-
27420922025 Water outlet socketWater outlet socket
-
28420941250 Screw M6x20Screw M6x20
-
29420850338 GasketGasket
-
30420922062 Bent otlet socketBent otlet socket
-
31420240480 Plug screwPlug screw
-
32420941451 Screw M6x40Screw M6x40
-
34512059504 HookHook
-
35420924519 Reed valve support assy. Includes items 35 thru 3Reed valve support assy. Includes items 35 thru 3
-
37420924532 Reed pedalReed pedal
-
38420924539 Reed pedal stopReed pedal stop
-
39420941215 Screw M3x5Screw M3x5
-
40420867882 Carburetor socketCarburetor socket
-
41420941925 Screw M5x16Screw M5x16
-
42420851440 ClampClamp
-
43420867817 Intake resonatorIntake resonator
-
44420931610 GasketGasket
-
45420979543 Exhaust manifoldExhaust manifold
-
46420923443 Cylinder sleeveCylinder sleeve
-
47420888583 Gasket kit, engineGasket kit, engine
-
48420888588 Gasket kit, cylinderGasket kit, cylinder
-
50420899785 Loctite 221, violet, 10ccLoctite 221, violet, 10cc
-
5140289 Allen screw M8x25Allen screw M8x25
-
5240036 Screw M8x20Screw M8x20
-
5320014 Lock washerLock washer
-
54293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
55420297433 Molykote G-N Slide pastMolykote G-N Slide past
-
56420297906 Sealing compoundSealing compound
