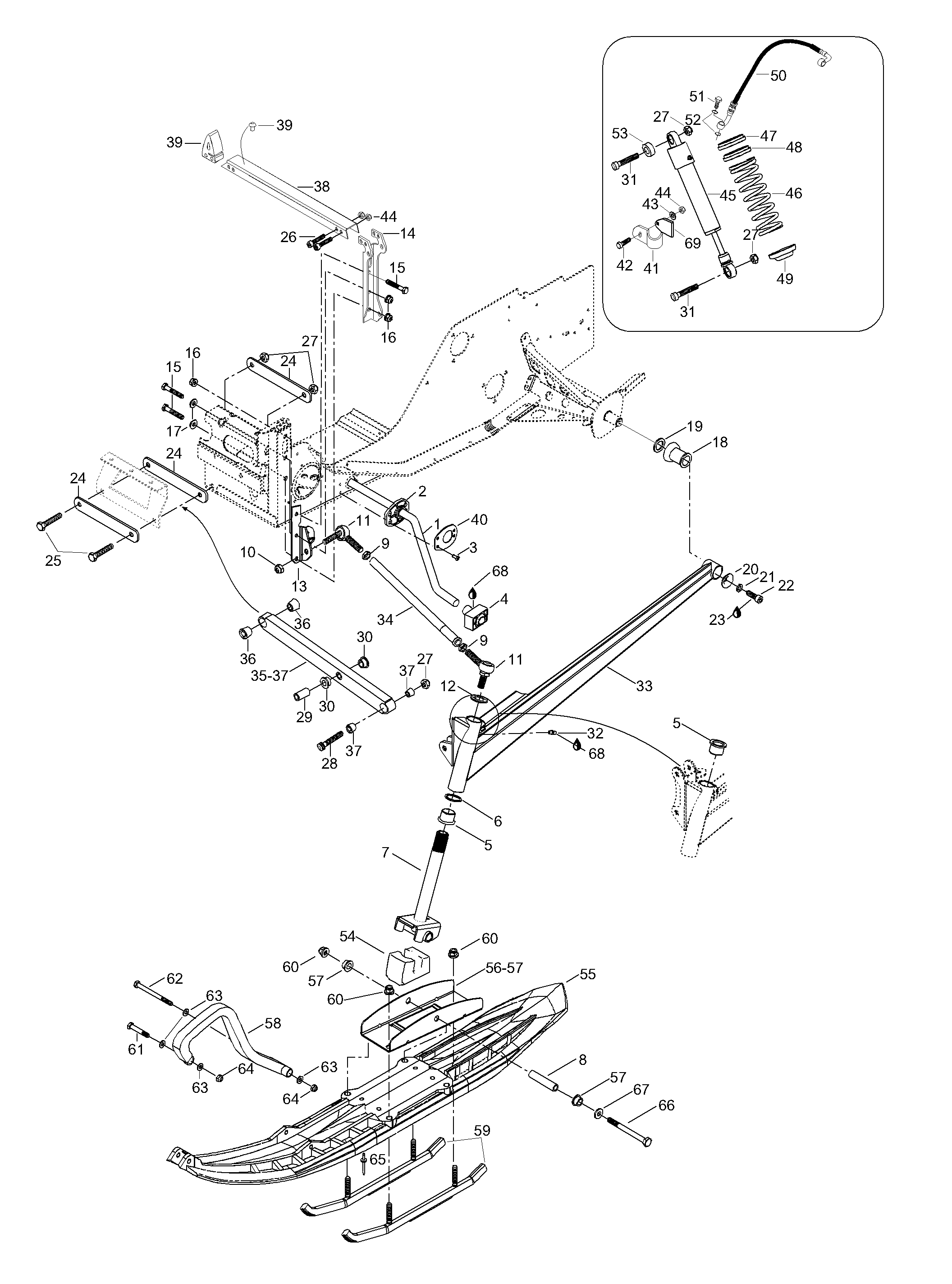

08- Front Suspension для BRP Lynx Enduro 600 Special/RER - 2002
-
№АртикулНазвание
-
15246797 Sway barSway bar
-
2505070191 SleeveSleeve
-
336009 RivetRivet
-
4505070117 Block-joint ballBlock-joint ball
-
5505070003 BushingBushing
-
6505070004 WasherWasher
-
75245502 Ski legSki leg
-
8506133300 SpacerSpacer
-
933048 Jam nut M12Jam nut M12
-
1033087 Jam nut elastic M12Jam nut elastic M12
-
1131092 Ball jointBall joint
-
1220074 Lock washerLock washer
-
135348064 R.H. Upper arm bracketR.H. Upper arm bracket
-
135348063 L.H. Upper arm bracketL.H. Upper arm bracket
-
145245488 Shock bracketShock bracket
-
145246395 Shock bracketShock bracket
-
1540010 Screw M8x55Screw M8x55
-
1633201 Elastic flanged nut M8Elastic flanged nut M8
-
1720104 Washer, hardenedWasher, hardened
-
18570062200 DamperDamper
-
19503146700 WasherWasher
-
20506079600 CupCup
-
2120014 Spring washerSpring washer
-
2240289 Allen screw M8x25Allen screw M8x25
-
23293800060 Loctite 243, 10mlLoctite 243, 10ml
-
245346112 Support plateSupport plate
-
2540814 Screw M10x110Screw M10x110
-
2640345 Allen screw M6x40Allen screw M6x40
-
2733012 Nut elastic M10Nut elastic M10
-
2840136 Allen screw M10x50Allen screw M10x50
-
295441433 BushingBushing
-
3031088 BearingBearing
-
3140837 Allen screw M10x55Allen screw M10x55
-
3234011 Grease fittingGrease fitting
-
335246687 S. arm, R.H. silver (RERS. arm, R.H. silver (RER
-
335246688 S. arm, L.H. silver (RER)S. arm, L.H. silver (RER)
-
335246683 Swing arm, R.H. redSwing arm, R.H. red
-
335246684 Swing arm, L.H. redSwing arm, L.H. red
-
345346122 Upper armUpper arm
-
355246679 Lower arm, silver (RER). Includes items 35 thru 37Lower arm, silver (RER). Includes items 35 thru 37
-
355246677 Lower arm, red. Includes items 35 thru 37Lower arm, red. Includes items 35 thru 37
-
365447769 Inner sleeveInner sleeve
-
375447770 Outer sleeveOuter sleeve
-
385347134 BracketBracket
-
3928143 Rubber damperRubber damper
-
415446702 BracketBracket
-
4240846 Lock screw M6x16Lock screw M6x16
-
4320009 WasherWasher
-
4433010 Nut elastic M6Nut elastic M6
-
4523132 Shock LYNX. Includes items 45 thru 5Shock LYNX. Includes items 45 thru 5
-
46230057 SpringSpring
-
47230053 Adjusting ringAdjusting ring
-
48230054 Guide springGuide spring
-
49230076 Guide springGuide spring
-
50230062 HoseHose
-
51415093810 ScrewScrew
-
52415038700 O-ringO-ring
-
53230055 Rubber bushingRubber bushing
-
54570070400 Stopper-skiStopper-ski
-
55505070727 Ski linerSki liner
-
56505070931 Bridge assy. Includes items 56 thru 57Bridge assy. Includes items 56 thru 57
-
57505070001 SleeveSleeve
-
58572101000 Plastic handlePlastic handle
-
595347985 RunnerRunner
-
6033074 Elastic flange nut M10Elastic flange nut M10
-
6140009 Screw M8x50Screw M8x50
-
6240264 Screw M8x90Screw M8x90
-
6320004 WasherWasher
-
6433011 Nut elastic M8Nut elastic M8
-
6536072 RivetRivet
-
6640814 Screw M10x110Screw M10x110
-
6720105 Washer, hardenedWasher, hardened
-
68413711500 Synthetic greaseSynthetic grease
-
695448228 BracketBracket
