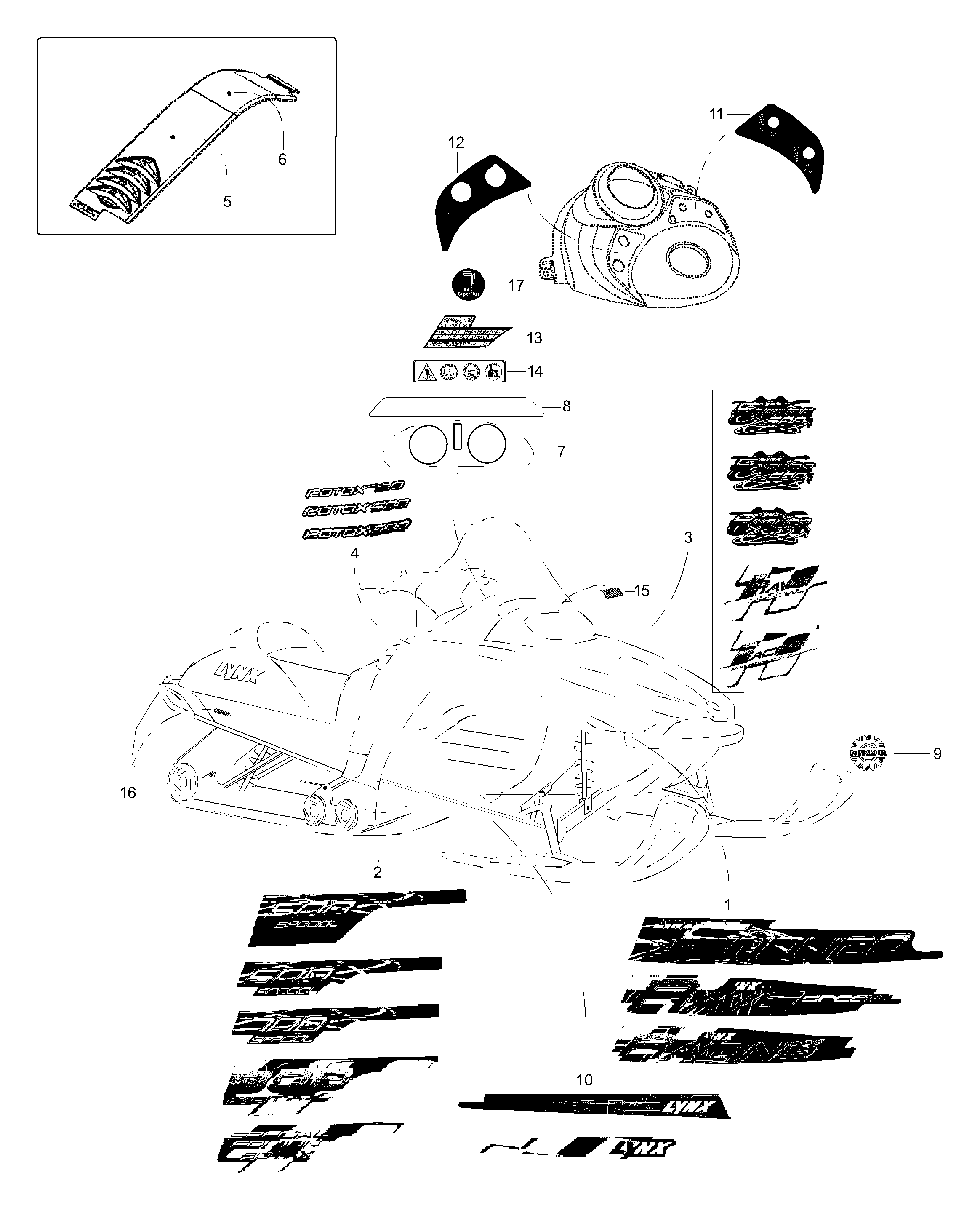

09- Decals для BRP Lynx Enduro 600 Special/RER - 2002
-
№АртикулНазвание
-
5147474 Hood decal kit Incl. decals: 1, 2, 3 and 4Hood decal kit Incl. decals: 1, 2, 3 and 4
-
15147188 R.H. Hood decal, upperR.H. Hood decal, upper
-
15147187 L.H. Hood decal, upperL.H. Hood decal, upper
-
25247452 R.H. lower decal, hoodR.H. lower decal, hood
-
25247451 L.H. lower decal, hoodL.H. lower decal, hood
-
35247455 Hood decal, frontHood decal, front
-
45247454 R.H. hood decal, ROTAXR.H. hood decal, ROTAX
-
45247453 L.H. hood decal, ROTAXL.H. hood decal, ROTAX
-
5546820 Pulley decalPulley decal
-
6544068 Oil check decalOil check decal
-
75346799 Control panel decalControl panel decal
-
85346800 Instruction decalInstruction decal
-
9516000983 Logo-BombardierLogo-Bombardier
-
105247450 Decal, swing arm R.H.Decal, swing arm R.H.
-
105247449 Decal, swing arm L.H.Decal, swing arm L.H.
-
115446933 Grip heater decalGrip heater decal
-
125446931 Decal D.E.S.S.Decal D.E.S.S.
-
145447124 Instruction symbol decalInstruction symbol decal
-
1521060 Reflector, brightReflector, bright
-
1621135 Reflector, yellowReflector, yellow
-
175447020 Fuel labelFuel label
