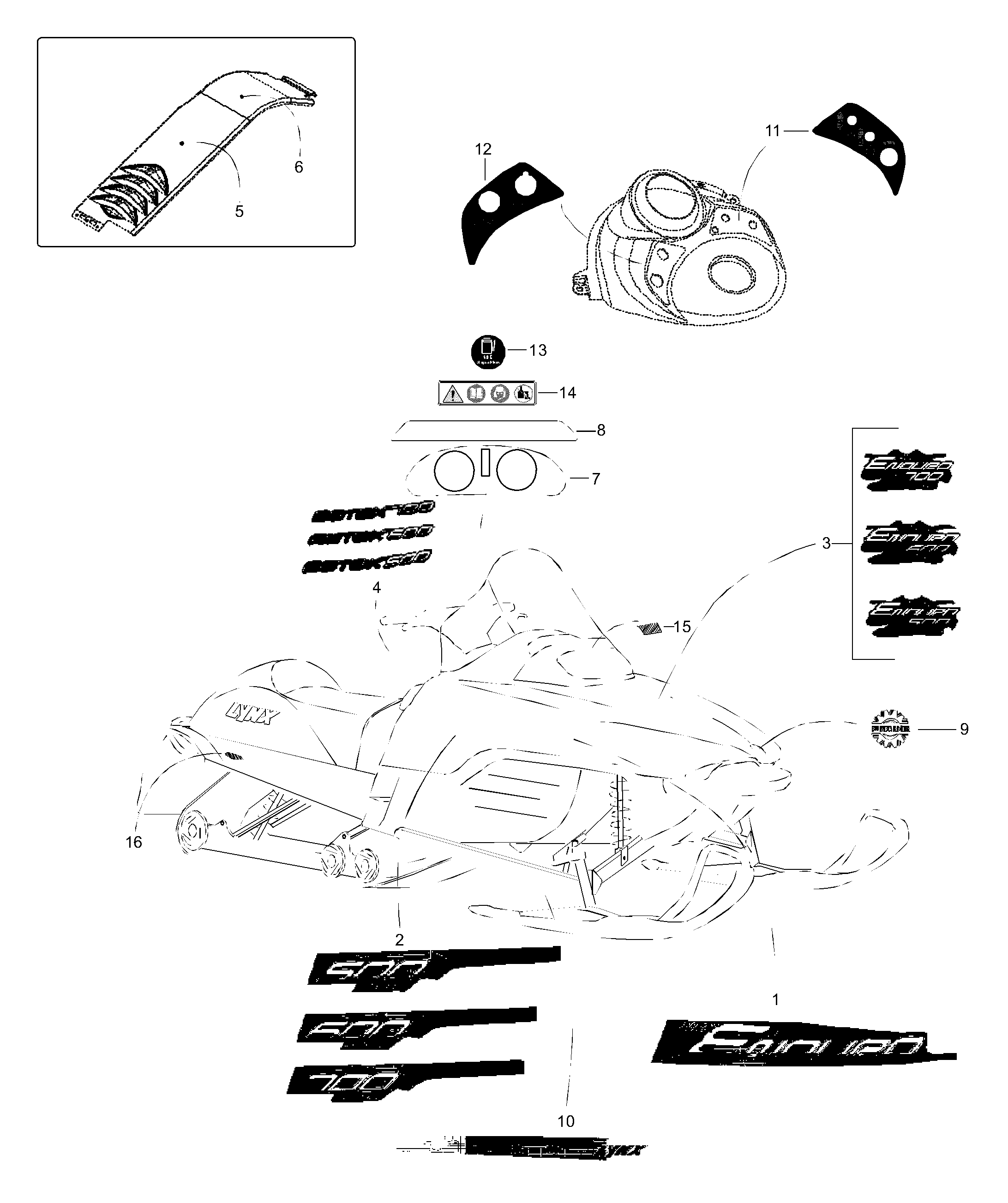

09- Decals для BRP Lynx Enduro 600 Special/RER - 2002
-
№АртикулНазвание
-
5147606 Hood decal kitHood decal kit
-
15147424 R.H. Hood decal, upperR.H. Hood decal, upper
-
15147423 L.H. Hood decal, upperL.H. Hood decal, upper
-
25247432 R.H. lower decal, hoodR.H. lower decal, hood
-
25247433 L.H. lower decal, hoodL.H. lower decal, hood
-
35247436 Hood decal, frontHood decal, front
-
45247434 R.H. hood decal, ROTAXR.H. hood decal, ROTAX
-
45247435 L.H. hood decal, ROTAXL.H. hood decal, ROTAX
-
5546820 Pulley decalPulley decal
-
6544068 Oil check decalOil check decal
-
75346799 Control panel decalControl panel decal
-
85346800 Instruction decalInstruction decal
-
9516000983 Logo-BombardierLogo-Bombardier
-
105247430 Decal, swing arm R.H.Decal, swing arm R.H.
-
105247431 Decal, swing arm L.H.Decal, swing arm L.H.
-
115447918 Grip heater decal/RERGrip heater decal/RER
-
125446931 Decal D.E.S.S.Decal D.E.S.S.
-
135447020 Fuel labelFuel label
-
145447124 Instruction symbol decalInstruction symbol decal
-
1521060 Reflector, brightReflector, bright
-
1621135 Reflector, yellowReflector, yellow
