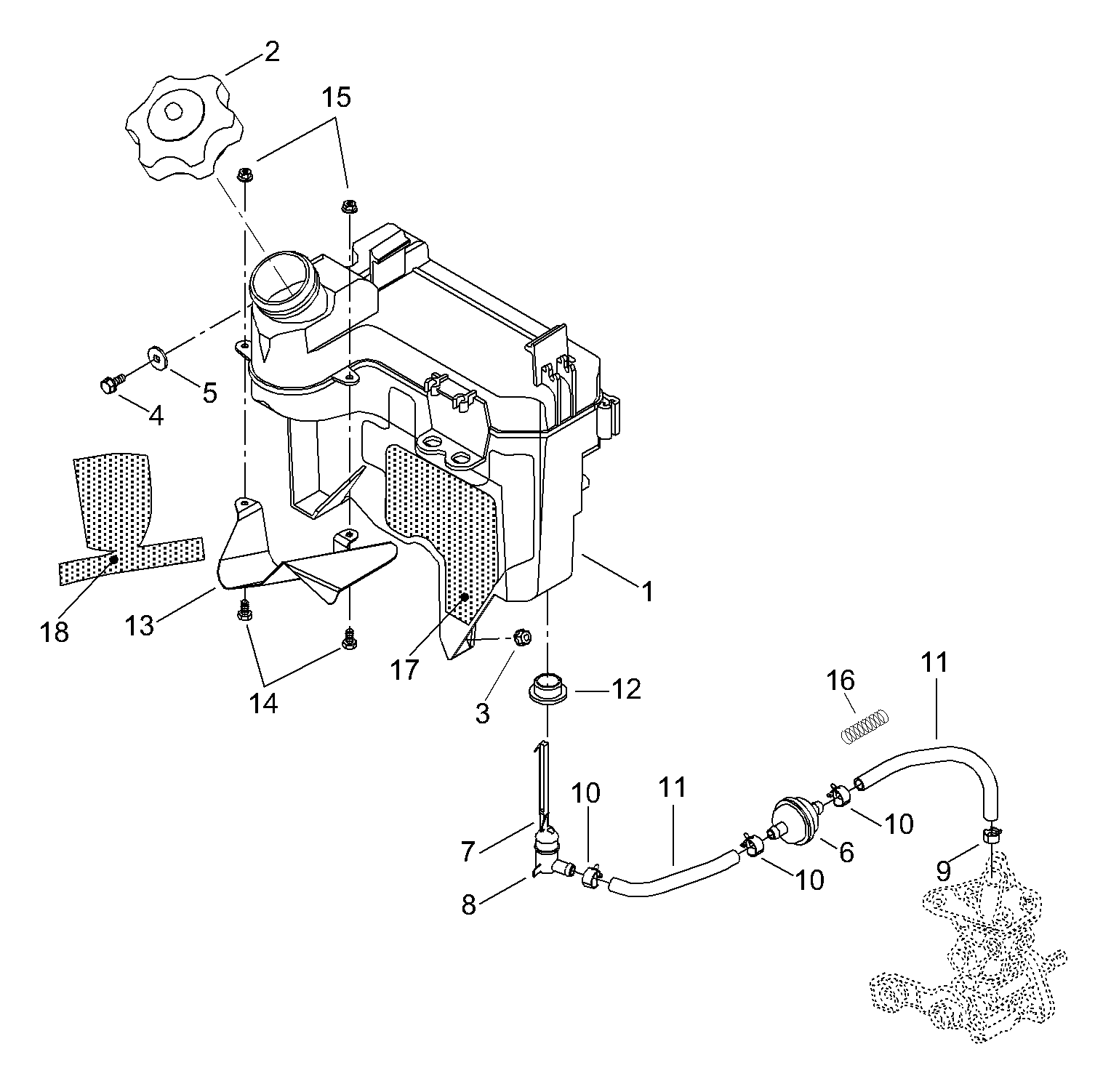

01- Oil Tank для BRP Lynx Explorer 500 - 2002
-
№АртикулНазвание
-
1519000041 Oil tankOil tank
-
2519000042 Oil tank capOil tank cap
-
333200 Elastic flange nut M6Elastic flange nut M6
-
440327 Self tapping screw M6Self tapping screw M6
-
520017 Serrated lock washerSerrated lock washer
-
6414536500 Oil filterOil filter
-
7414681900 FloatFloat
-
8414681800 Switch-levelSwitch-level
-
9414420700 ClampClamp
-
10414415200 ClampClamp
-
1139046 Hose 11/8Hose 11/8
-
12570023000 Seal for sensorSeal for sensor
-
135348098 DeflectorDeflector
-
1440026 Screw M5x12Screw M5x12
-
1533062 Elastic flange nut M5Elastic flange nut M5
-
16414940300 SpringSpring
-
17519000050 Reflective sheetReflective sheet
-
18519000051 Reflective sheetReflective sheet
