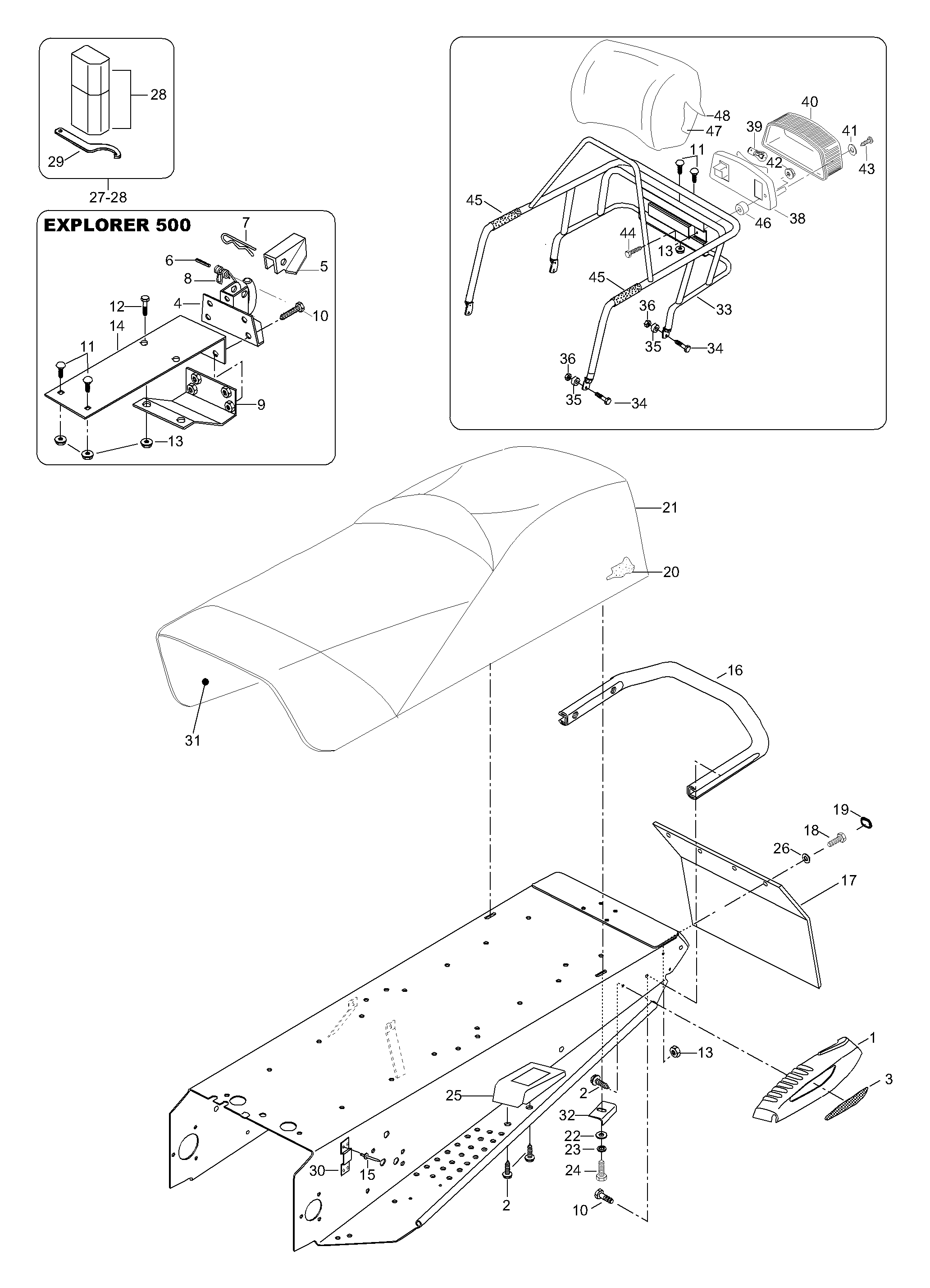

09- Body для BRP Lynx Explorer 500 - 2002
-
№АртикулНазвание
-
1861777700 R.H. mouldingR.H. moulding
-
1861777800 L.H. mouldingL.H. moulding
-
240870 Hex. tapping screwHex. tapping screw
-
3516000241 R.H. rear reflectorR.H. rear reflector
-
3516000242 L.H. rear reflectorL.H. rear reflector
-
45344156 Hitch Assy. Includes items 4 thru 8Hitch Assy. Includes items 4 thru 8
-
45344208 Hitch WeldHitch Weld
-
55440767 LockLock
-
641012 Spring PinSpring Pin
-
741029 Needle PinNeedle Pin
-
8545693 SpringSpring
-
95346856 ReinforcementReinforcement
-
1040336 Screw M8x20Screw M8x20
-
1140866 Locking screw M6x20Locking screw M6x20
-
1240030 Screw M6x20Screw M6x20
-
1333200 Elastic flanged nut M6Elastic flanged nut M6
-
145446855 BracketBracket
-
1536489 RivetRivet
-
16517243800 Rear pumberRear pumber
-
175246859 Snow guardSnow guard
-
1840078 Screw M6x22Screw M6x22
-
19415073300 CapCap
-
205146604 Seat foamSeat foam
-
215148258 Seat coverSeat cover
-
2220010 WasherWasher
-
2320014 Lock washerLock washer
-
2440047 Screw M8x30Screw M8x30
-
25572088700 GT SE Foot Rest RHGT SE Foot Rest RH
-
25572088800 GT SE Foot Rest LHGT SE Foot Rest LH
-
2620009 WasherWasher
-
275445403 Tool box with tools. Includes items 27 thru 28Tool box with tools. Includes items 27 thru 28
-
28572036310 Tool boxTool box
-
29529032900 Wrench adjustWrench adjust
-
305447908 BracketBracket
-
315146603 Seat baseSeat base
-
325447994 Support plateSupport plate
-
335247969 Rack assyRack assy
-
3440387 Screw M8x30Screw M8x30
-
35548491 SleeveSleeve
-
3633201 Elastic flanged nut M8Elastic flanged nut M8
-
375341214 Taillamp assy. Includes items 37 thru 43Taillamp assy. Includes items 37 thru 43
-
38414979400 Taillamp housingTaillamp housing
-
39410504000 BulbBulb
-
40414513700 LensLens
-
41414516400 WasherWasher
-
4233200 Nut M6Nut M6
-
43414516300 ScrewScrew
-
4440065 Screw M6x45Screw M6x45
-
45415050300 GripGrip
-
46549103 SleeveSleeve
-
47539399 FoamFoam
-
485340917 CoverCover
