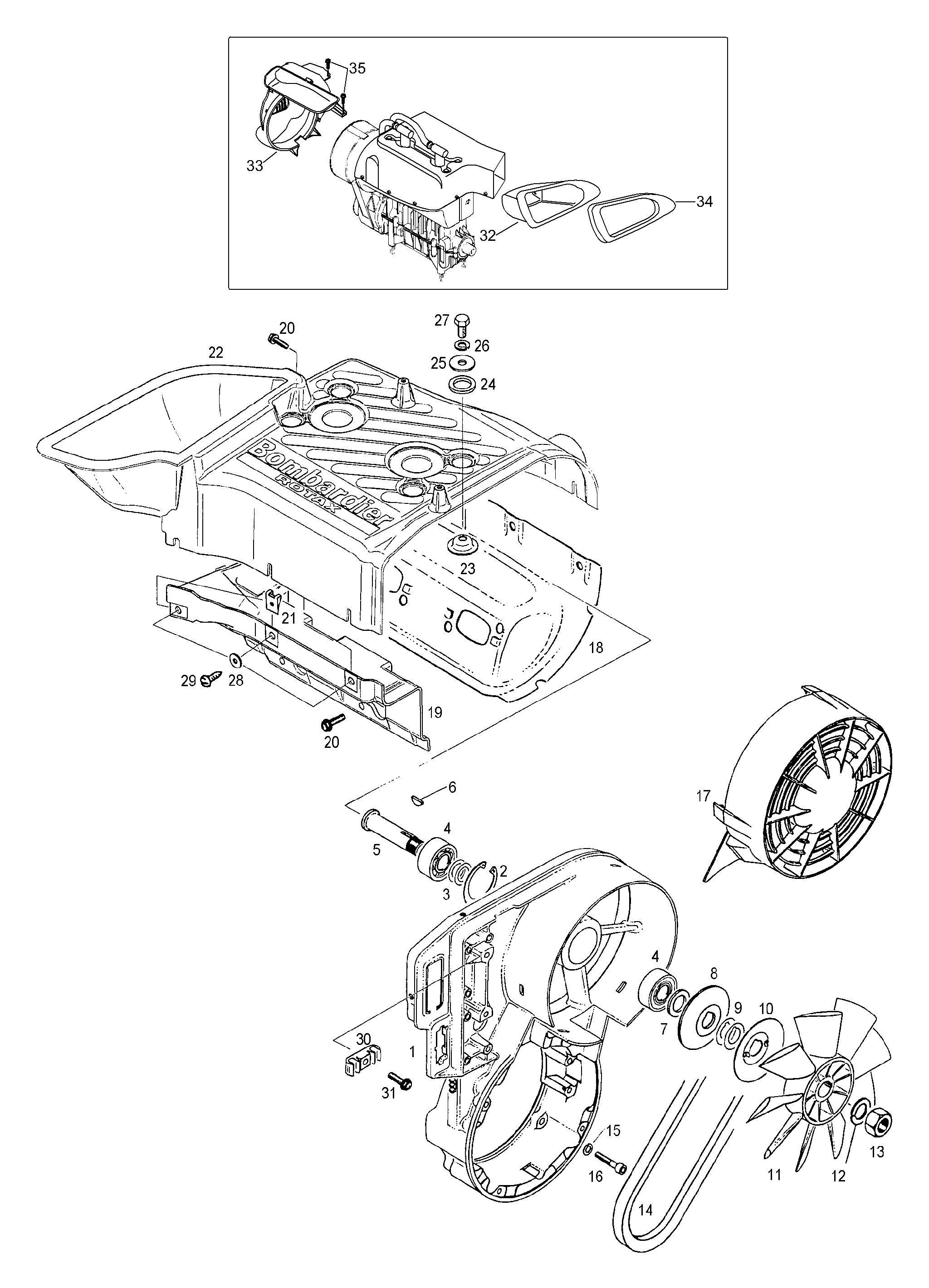

01- Radiator, Hoses для BRP Lynx Explorer 500 - 2002
-
№АртикулНазвание
-
1420912203 Fan housingFan housing
-
2420945880 Retaining ringRetaining ring
-
3420244585 ShimShim
-
4405406100 BearingBearing
-
5420937940 ShaftShaft
-
6420246015 KeyKey
-
7420827650 Distance sleeveDistance sleeve
-
8420980496 Belt diskBelt disk
-
9420827080 Adj.washer 0.5Adj.washer 0.5
-
9420827082 Adj.washer 0.2Adj.washer 0.2
-
10420980523 Protection washerProtection washer
-
11420866292 FanFan
-
12420945756 Spring washerSpring washer
-
13420942285 NutNut
-
14414630800 V-beltV-belt
-
15420945751 Spring washerSpring washer
-
16205063044 Allen screw M6x30Allen screw M6x30
-
17420975695 Fan coverFan cover
-
18420811390 Lower cowl (exhaust)Lower cowl (exhaust)
-
19420811825 Lower cowlLower cowl
-
20420240580 Taptite screw M6x16Taptite screw M6x16
-
21417300005 Sping nutSping nut
-
22420811820 Upper caseUpper case
-
23420827817 Cup washerCup washer
-
24420960865 Rubber washerRubber washer
-
25420227935 WasherWasher
-
26420945752 Lock washerLock washer
-
27207181644 Screw M8x16Screw M8x16
-
28420926180 WasherWasher
-
29417300006 Selftapping screwSelftapping screw
-
30420860945 Wire clampWire clamp
-
31420841555 Taptite screw M5x20Taptite screw M5x20
-
325247489 Outlet DuctOutlet Duct
-
33509000117 Inlet ductInlet duct
-
345247592 SealSeal
-
35243141640 ScrewScrew
