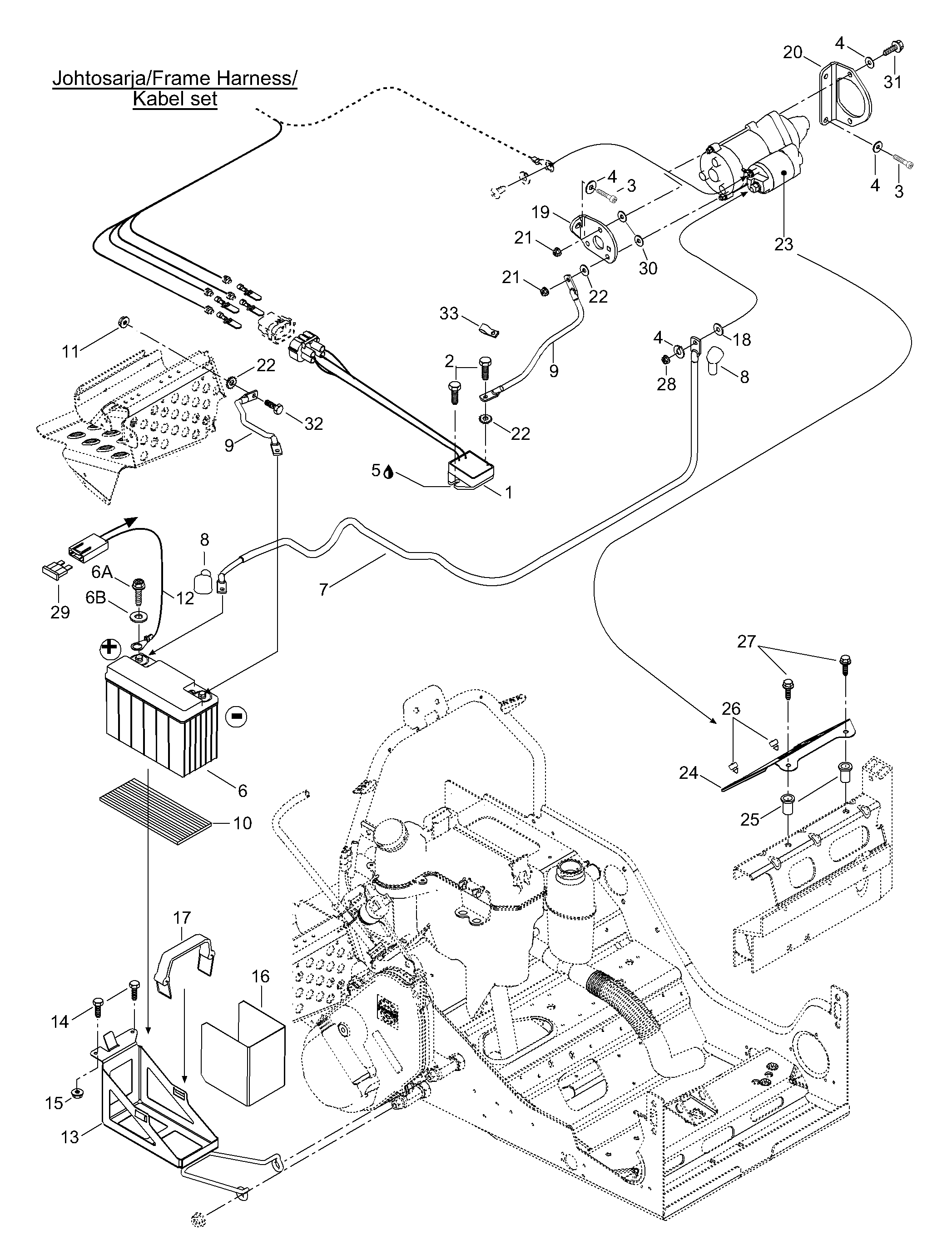

10- Electric Starter Kit для BRP Lynx Explorer 500 - 2002
-
№АртикулНазвание
-
1515175656 Voltage regulatorVoltage regulator
-
240322 Screw M6x16Screw M6x16
-
340305 Allen screw M8x20Allen screw M8x20
-
420014 Spring washerSpring washer
-
5413707500 Lithium-greaseLithium-grease
-
6515175642 BatteryBattery
-
6a207161644 Screw M6x16Screw M6x16
-
6b391302100 WasherWasher
-
75446596 Battery wireBattery wire
-
8570151000 Cap protectionCap protection
-
9515175483 Ground wireGround wire
-
105347314 Rubber blanketRubber blanket
-
1133200 Elastic flanged nut M6Elastic flanged nut M6
-
125446894 Wire, fuse-batteryWire, fuse-battery
-
13515175625 Battery supportBattery support
-
1440247 Screw M5x16Screw M5x16
-
1533062 Elastic flanged nut M5Elastic flanged nut M5
-
16515175643 ProtectorProtector
-
17515175475 Battery strapBattery strap
-
1820004 WasherWasher
-
19420951427 Starter bracket, MAG-sidStarter bracket, MAG-sid
-
20420951413 Starter bracket, PTO-sidStarter bracket, PTO-sid
-
2133009 Nut elastic M5Nut elastic M5
-
2220017 WasherWasher
-
23410212400 StarterStarter
-
24515175536 ProtectorProtector
-
25415107300 InsertInsert
-
26293830005 Plug rubberPlug rubber
-
27207661644 ScrewScrew
-
2833003 Nut M8Nut M8
-
29410917200 Fuse 30 AFuse 30 A
-
30391301700 WasherWasher
-
3140289 Allen screw M8x25Allen screw M8x25
-
3240029 Screw M6x16Screw M6x16
-
33415018200 ClampClamp
