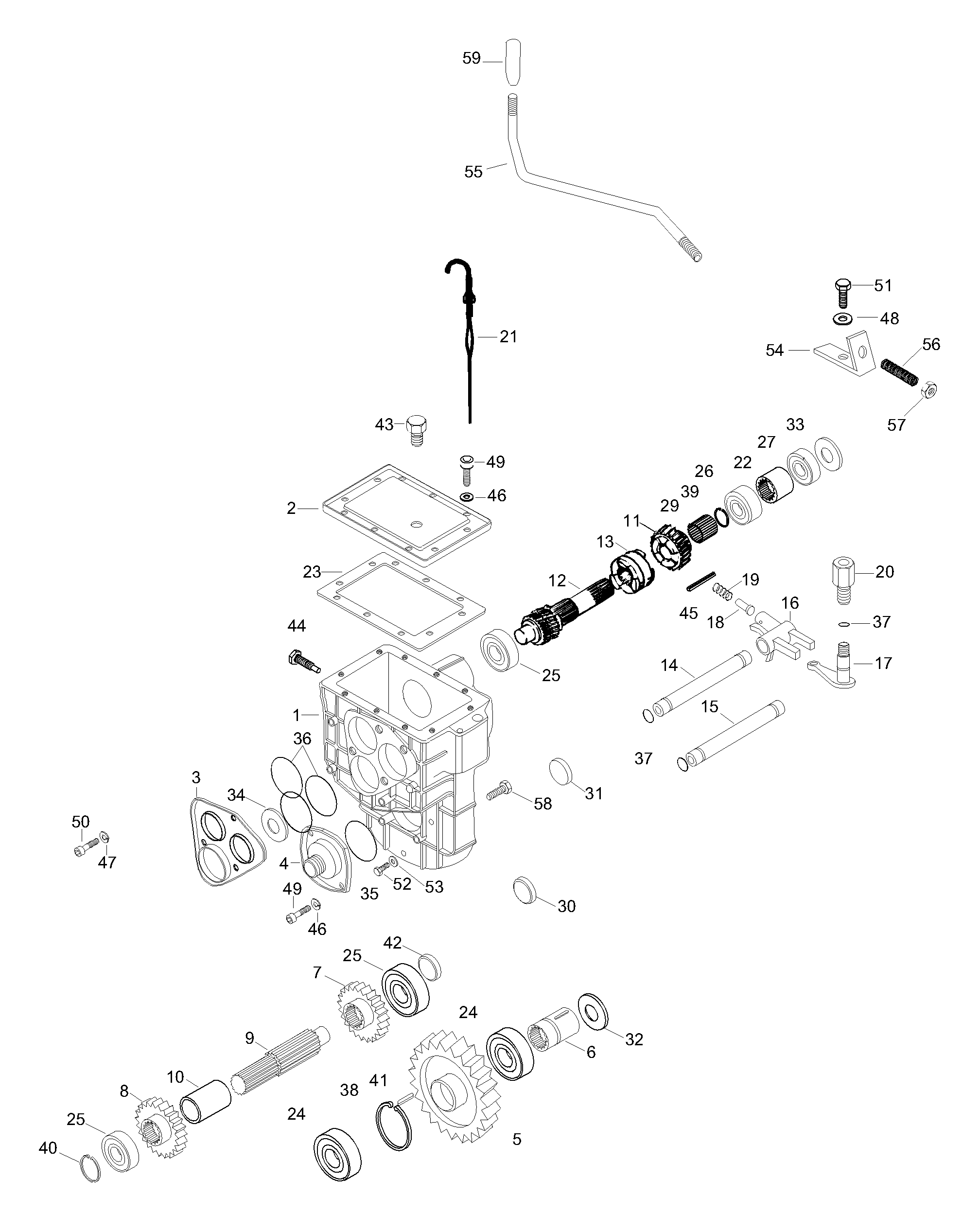

05- Gearbox для BRP Lynx Forest - 2002
-
№АртикулНазвание
-
870156207 Gear box, fastGear box, fast
-
1875146257 HousingHousing
-
2875156070 CoverCover
-
3875146050 Side coverSide cover
-
4875136252 Cover,lowerCover,lower
-
5875155048 Wheel,lower Z-64Wheel,lower Z-64
-
6875136962 Shaft, lowerShaft, lower
-
7875146042 Gear Z-32Gear Z-32
-
8875146043 Gear Z-36Gear Z-36
-
9875147162 ShaftShaft
-
10875146112 SleeveSleeve
-
11875146037 Gear Z-27Gear Z-27
-
12875156212 Clutch shaft assyClutch shaft assy
-
13875156120 Clutch wheelClutch wheel
-
14875146051 Shift fork shaftShift fork shaft
-
15875146052 Back shaft,shift forkBack shaft,shift fork
-
16875146018 Shift forkShift fork
-
17875156210 Shift forkShift fork
-
18875119655 Lock pinLock pin
-
19875128952 SpringSpring
-
20875156208 Screw-in sleeveScrew-in sleeve
-
21875146814 DipstickDipstick
-
22875138073 Clutch sleeveClutch sleeve
-
23875146411 GasketGasket
-
246008 BearingBearing
-
25610063040 BearingBearing
-
263205 Bearing, dublexBearing, dublex
-
276005 BearingBearing
-
29611002529 Needle bearingNeedle bearing
-
30614100052 PlugPlug
-
31614100047 PlugPlug
-
322652101 Oil sealOil seal
-
33614102542 Oil sealOil seal
-
34614102040 Oil sealOil seal
-
35614606825 O-ringO-ring
-
36614605225 O-ringO-ring
-
37614601024 O-ringO-ring
-
38617300040 CirclipCirclip
-
39617450025 CirclipCirclip
-
40617300020 CirclipCirclip
-
41603345070 KeyKey
-
42640016025 PlugPlug
-
4333025 PlugPlug
-
44875146697 ScrewScrew
-
45595952630 Spring cotterSpring cotter
-
46500950602 Spring washerSpring washer
-
4720014 Spring washerSpring washer
-
4820077 WasherWasher
-
4940332 Allen screw M6x16Allen screw M6x16
-
5040066 Allen screw M8x16Allen screw M8x16
-
5240114 Screw M6x10Screw M6x10
-
53615580611 Gasket ringGasket ring
-
545346582 Shifter plateShifter plate
-
555246692 Shifter shaftShifter shaft
-
56542102 SpringSpring
-
5733012 Nut elastic M10Nut elastic M10
-
5840337 Screw M8x16Screw M8x16
-
5928247 GripGrip
