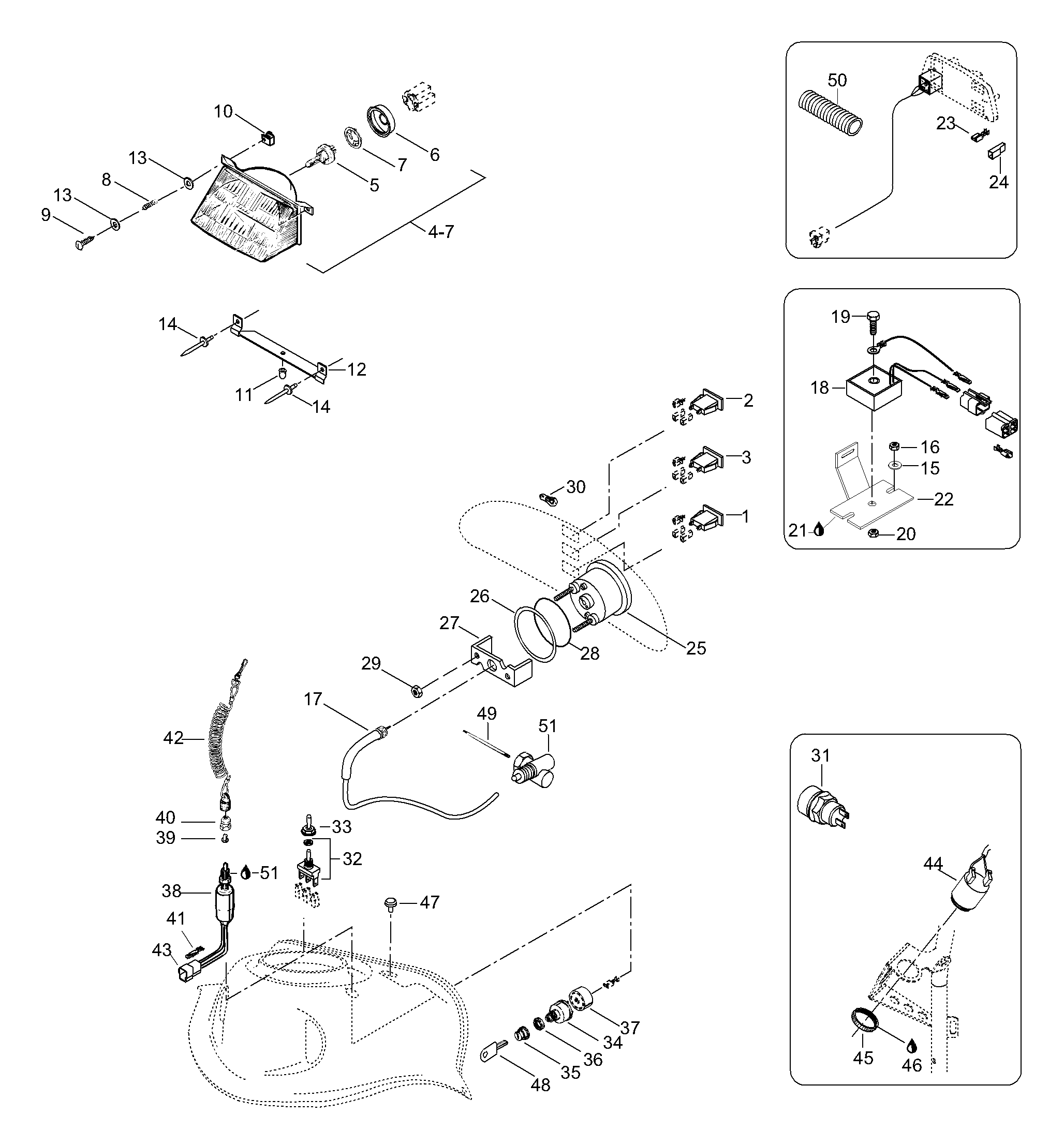

10- Electric для BRP Lynx Forest - 2002
-
№АртикулНазвание
-
1410113400 Pilot-lamp (reverse)Pilot-lamp (reverse)
-
2410109600 Pilot lamp, bluePilot lamp, blue
-
3410109500 Pilot lamp, redPilot lamp, red
-
4410609300 Headlamp assy. Includes items 4 thru 7Headlamp assy. Includes items 4 thru 7
-
5410503700 BulpBulp
-
6410607100 CoverCover
-
7410608300 Bulp halderBulp halder
-
8517168600 SpringSpring
-
9243244040 Screw M4x40Screw M4x40
-
10572078600 Lamp nutLamp nut
-
11410608200 Rubber bumperRubber bumper
-
12539864 Lamp supportLamp support
-
1320002 WasherWasher
-
1436489 RivetRivet
-
1520009 WasherWasher
-
1633010 Nut elastic M6Nut elastic M6
-
1745006 Speedometer cableSpeedometer cable
-
185446342 Voltage regulatorVoltage regulator
-
1940003 Screw M6x35Screw M6x35
-
2033200 Elastic flanged nut M6Elastic flanged nut M6
-
21413707500 Litium-greaseLitium-grease
-
225346798 Cooling plateCooling plate
-
2342178 Male terminalMale terminal
-
2442179 Connector housingConnector housing
-
25515175335 Speedometer assySpeedometer assy
-
26517258500 WasherWasher
-
27414806500 Housing supportHousing support
-
28414807100 O-ringO-ring
-
2933062 Elastic flanged nut M5Elastic flanged nut M5
-
30410504200 BulpBulp
-
31415101200 Reverse knobReverse knob
-
32410110700 SwitchSwitch
-
33515175281 Switch coverSwitch cover
-
3442019 Ignition switchIgnition switch
-
35570013700 Switch bootSwitch boot
-
36410112100 Switch nutSwitch nut
-
37572150700 Ignition switch blockIgnition switch block
-
38515175571 Brake switchBrake switch
-
39570151100 Plunger capPlunger cap
-
40515145900 Switch nutSwitch nut
-
4142603 Male terminalMale terminal
-
42515151500 Switch cap assySwitch cap assy
-
4342268 Connector housingConnector housing
-
44415060900 HornHorn
-
45414805101 Plastic nutPlastic nut
-
46293800033 Silicone sealantSilicone sealant
-
47572051500 PluggPlugg
-
48414991700 KeyKey
-
4945075 InsertInsert
-
5028012 TubingTubing
-
5135021 Gear UnitGear Unit
