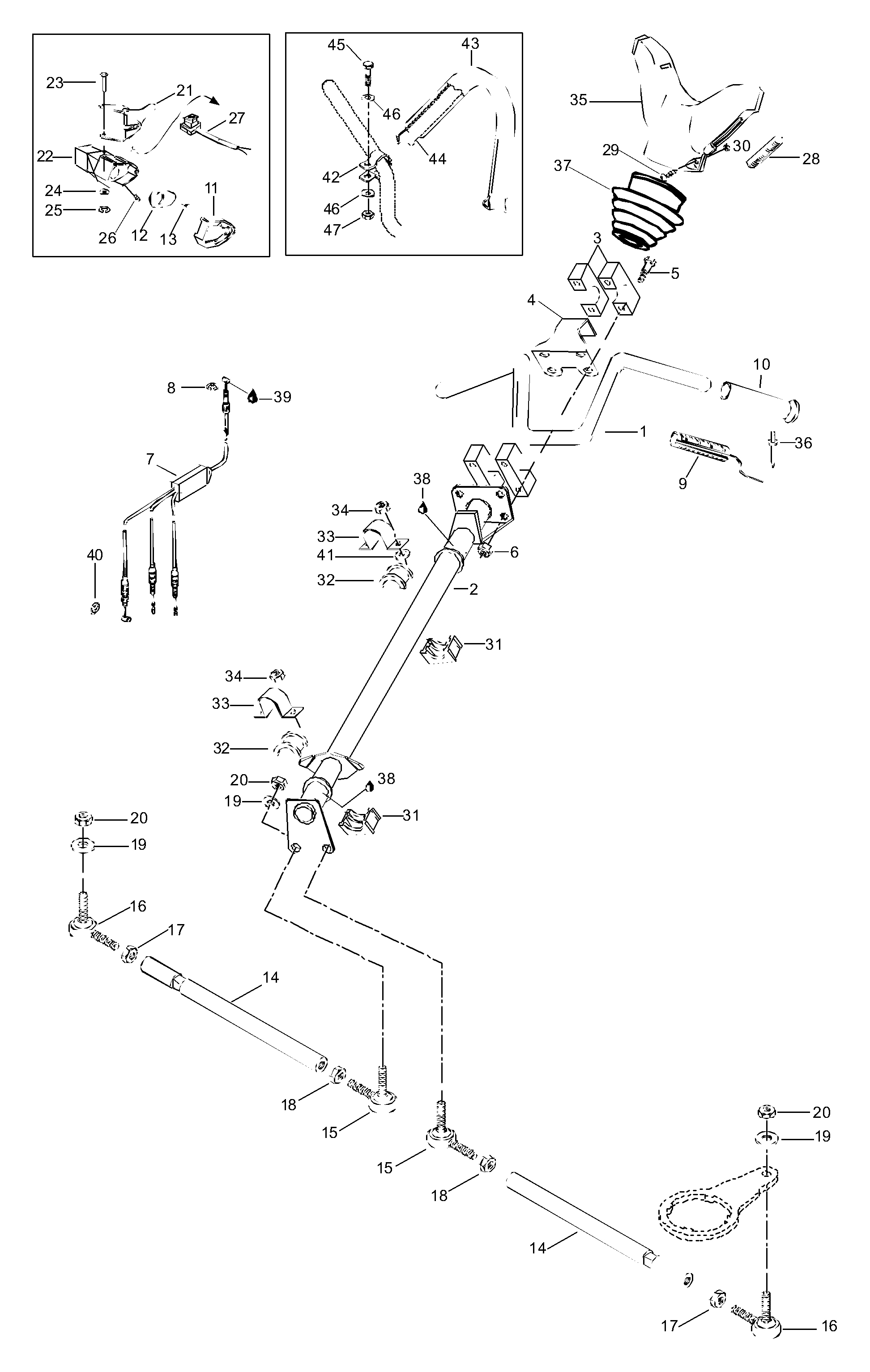

07- Steering для BRP Lynx Forest - 2002
-
№АртикулНазвание
-
1529751 Steering handle barSteering handle bar
-
25245963 Steering paleSteering pale
-
3548448 FasteningFastening
-
45444196 SupportSupport
-
540286 Allen screw M8x45Allen screw M8x45
-
633011 Nut elastic M8Nut elastic M8
-
75145673 Throttle cableThrottle cable
-
831038 CirclipCirclip
-
95446341 Heating gripHeating grip
-
105340464 Handle gripHandle grip
-
11572069300 Throttle coverThrottle cover
-
12512059507 PlatePlate
-
13414473200 ScrewScrew
-
14548983 Tie rodTie rod
-
15506151495 Ball joint, leftBall joint, left
-
16506151492 Ball joint, rightBall joint, right
-
1733019 Nut, RHNut, RH
-
1833017 Nut, LHNut, LH
-
1920047 Spring washerSpring washer
-
2033023 Lock nut M10x1.25Lock nut M10x1.25
-
215442276 Heat throttle handleHeat throttle handle
-
22512059334 Throttle housingThrottle housing
-
23414438700 Pin-leverPin-lever
-
24414438900 WasherWasher
-
25414439000 CirclipCirclip
-
26414440800 Screw M8x10Screw M8x10
-
27414612700 Switch killSwitch kill
-
28572023900 KeywayKeyway
-
2940156 Phillips screw M5x20Phillips screw M5x20
-
3033062 Elastic flanged nut M5Elastic flanged nut M5
-
31572064400 Bearing halfBearing half
-
32572064500 Bearing halfBearing half
-
335343381 Retaining SupportRetaining Support
-
3433201 Elastic flanged nut M8Elastic flanged nut M8
-
355347906 Steering coverSteering cover
-
3636005 RivetRivet
-
37539033 RubberRubber
-
38413711500 Synthetic greaseSynthetic grease
-
39293550004 Dielectric grease, 150gDielectric grease, 150g
-
4031035 CirclipCirclip
-
4131081 ShimShim
-
42506148200 Support plateSupport plate
-
43415090200 GripGrip
-
44415095500 Tie-downTie-down
-
4540031 Screw M6x25Screw M6x25
-
4620003 WasherWasher
-
4733010 Nut elastic M6Nut elastic M6
