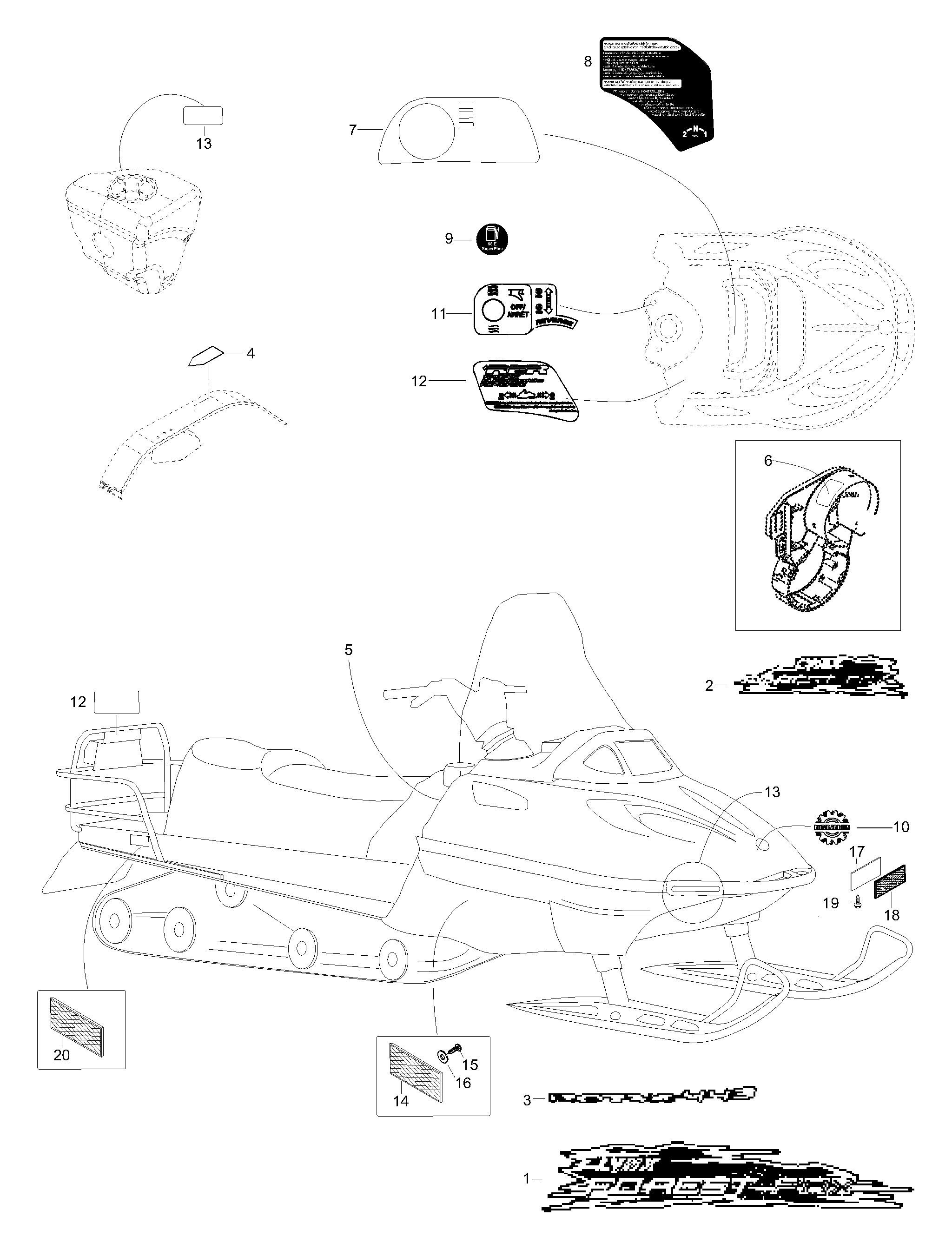

09- Decals для BRP Lynx Forest - 2002
-
№АртикулНазвание
-
5147499 Hood decals (Ref. 1, 2 and 3)Hood decals (Ref. 1, 2 and 3)
-
15147220 Hood side decal R.H.Hood side decal R.H.
-
15147219 Hood side decal L.H.Hood side decal L.H.
-
25247223 Front decal, hoodFront decal, hood
-
35247222 R.H. Label, ROTAX 443R.H. Label, ROTAX 443
-
35247221 L.H. Label, ROTAX 443L.H. Label, ROTAX 443
-
4546820 Belt Quart DecalBelt Quart Decal
-
5544068 Label, oil checkLabel, oil check
-
6544073 Fan Belt DecalFan Belt Decal
-
75346239 Dash decalDash decal
-
85346801 Dash decalDash decal
-
95447019 Fuel decalFuel decal
-
10516000983 >logo>logo
-
11516000977 Heat grip decalHeat grip decal
-
125447930 Instruction decalInstruction decal
-
13418001009 Bumper decal reflectorBumper decal reflector
-
14414510200 Amber reflectorAmber reflector
-
1540070 Screw M5x10Screw M5x10
-
1620018 WasherWasher
-
175446916 BracketBracket
-
1821118 Reflector, brightReflector, bright
-
1940888 ScrewScrew
-
2021121 Yellow reflectorYellow reflector
