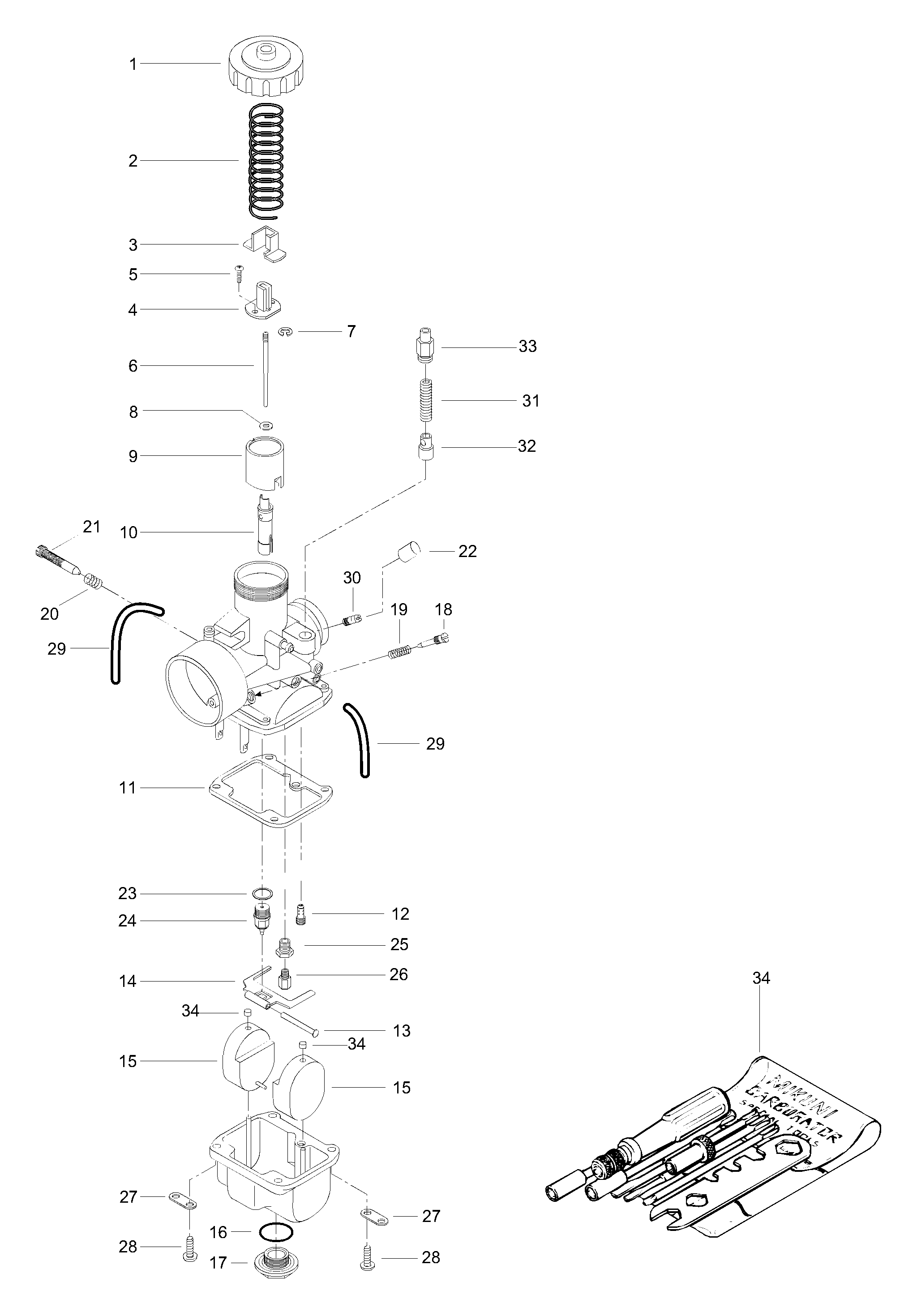

02- Carburetor для BRP Lynx GLX ST 5000 - 2002
-
№АртикулНазвание
-
1404105100 CoverCover
-
2404154800 Throttle valve springThrottle valve spring
-
3404122100 CoverCover
-
4404160800 ConnectorConnector
-
5404121300 Screw with washerScrew with washer
-
6404159900 Jet needle 6DEY4-4Jet needle 6DEY4-4
-
7404152400 E-ringE-ring
-
8404117000 O-ringO-ring
-
9404112500 Slide 2.5Slide 2.5
-
10404161805 Needle jet 480 P-9Needle jet 480 P-9
-
11404104700 Gasket panGasket pan
-
12404109100 Pilot jet PJ 40Pilot jet PJ 40
-
13404103300 Float arm pinFloat arm pin
-
14404105000 Float armFloat arm
-
15404105400 FloatFloat
-
16404101500 O-ringO-ring
-
17404105600 Plug screwPlug screw
-
18404149000 Air screwAir screw
-
19404139800 SpringSpring
-
20404101700 SpringSpring
-
21404102800 Throttle stop screwThrottle stop screw
-
2219057 CapCap
-
23404101600 Washer-seatWasher-seat
-
24404103200 Needle valve 1.5Needle valve 1.5
-
26404101100 Main jet 290Main jet 290
-
27404103000 Tube retainer plateTube retainer plate
-
28404102000 Screw + lock washerScrew + lock washer
-
29404161880 Air vent tubeAir vent tube
-
30404153400 NippleNipple
-
31404127400 SpringSpring
-
32404161000 Plunger assyPlunger assy
-
33404161100 Holder guideHolder guide
-
34404112000 Tool kitTool kit
