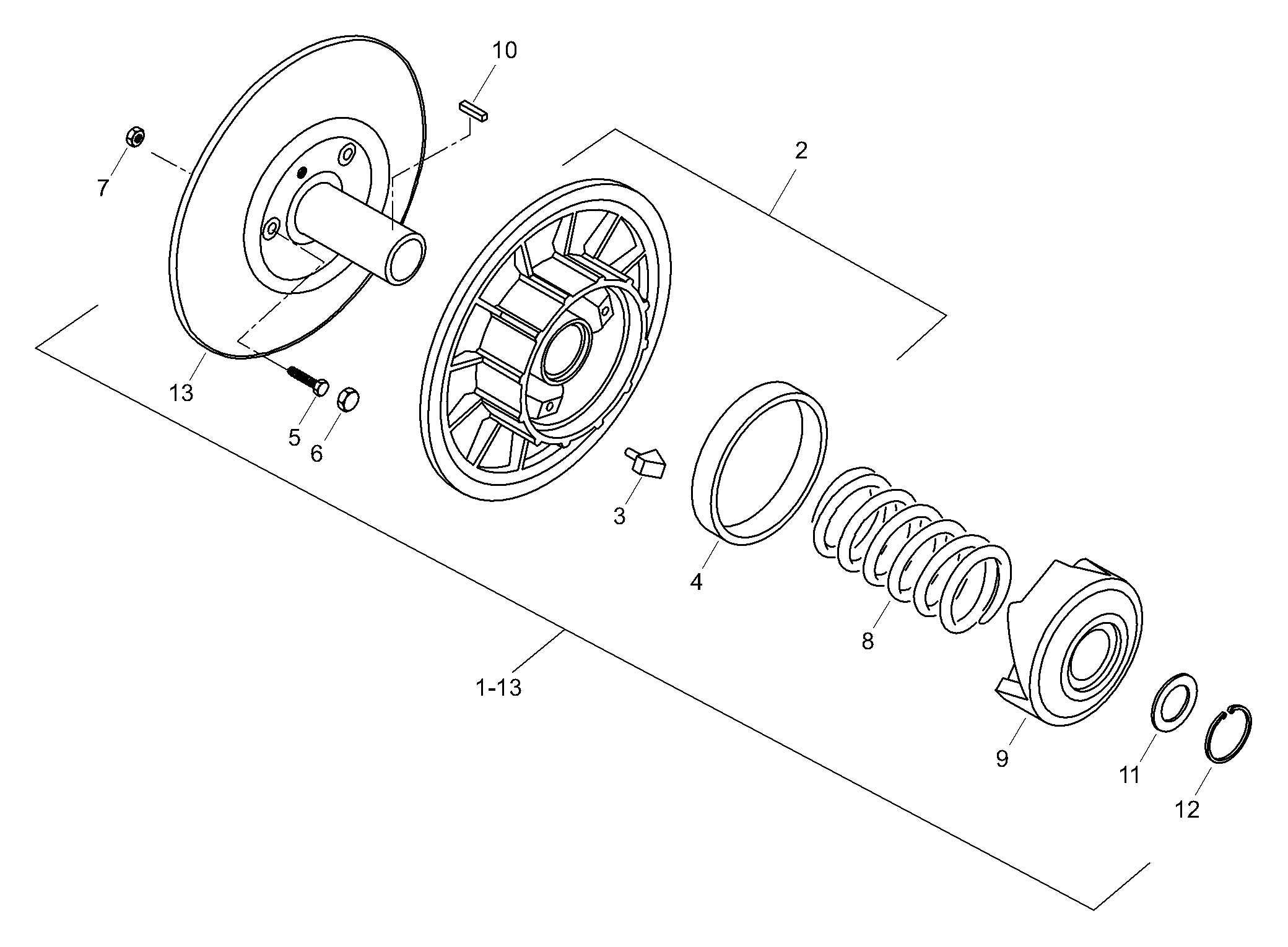

05- Driven Pulley для BRP Lynx GLX ST 5000 - 2002
-
№АртикулНазвание
-
1605140047 Fixed half pulleyFixed half pulley
-
2140010 Sliding half pulleySliding half pulley
-
3417212500 Cam shoeCam shoe
-
4140005 Cam bushingCam bushing
-
5417118900 Hexagonal head screwHexagonal head screw
-
6417119600 Plastic capPlastic cap
-
7417119000 Nut M6Nut M6
-
8417119100 Spring blueSpring blue
-
9417123700 Fix cam 40Fix cam 40
-
10417119400 Sguare keySguare key
-
11417114900 Shim 0.05'’Shim 0.05'’
-
11417117000 Shim 0.025'’Shim 0.025'’
-
12140004 Snap ringSnap ring
