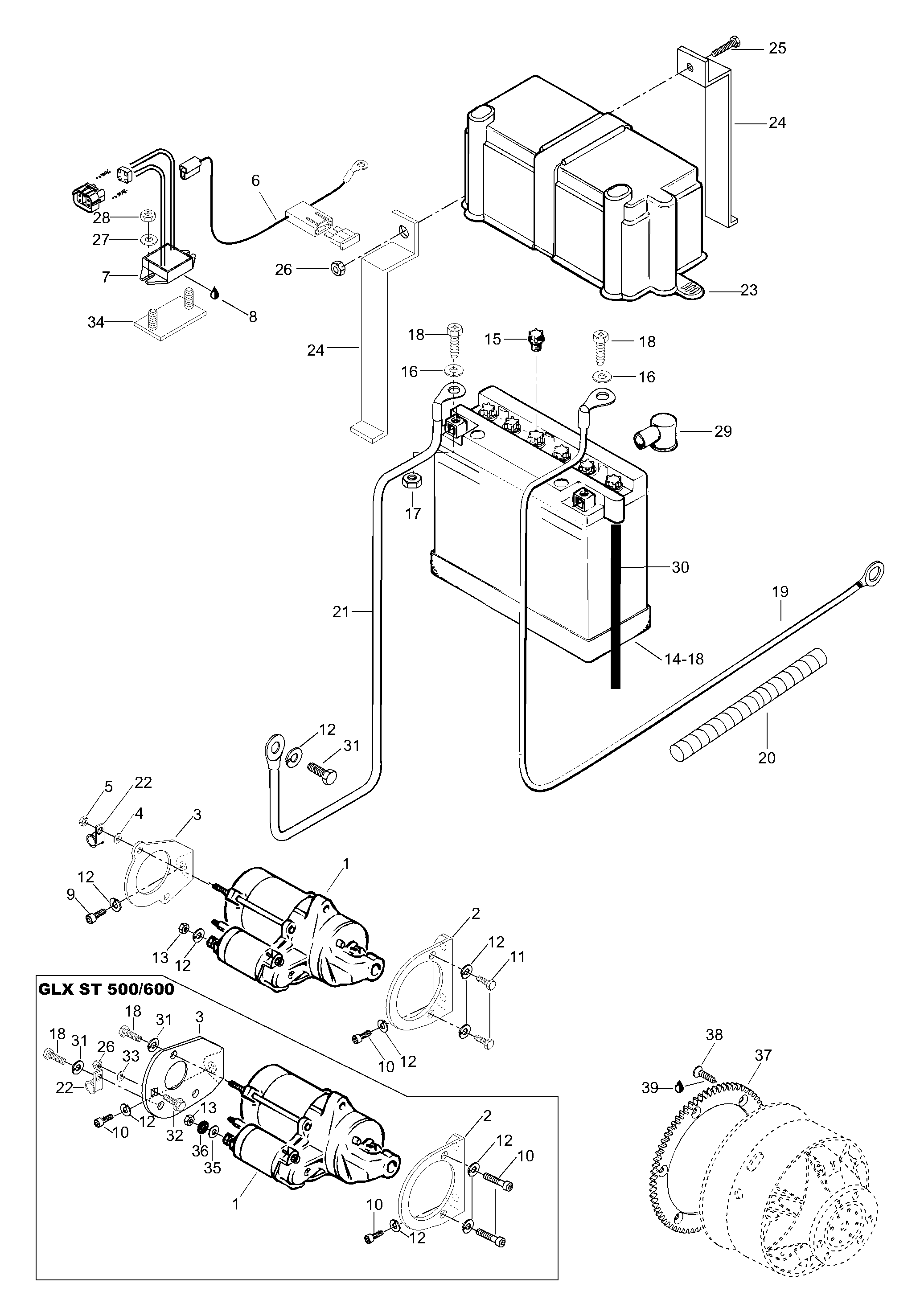

10- Battery для BRP Lynx GLX ST 5000 - 2002
-
№АртикулНазвание
-
1515175565 StarterStarter
-
2515175142 Starter bracketStarter bracket
-
3515175441 Starter bracket MAGStarter bracket MAG
-
7515175656 Rectifier assyRectifier assy
-
8413707500 Lithium-greaseLithium-grease
-
1040305 Allen screw M8x20Allen screw M8x20
-
1220014 Spring washerSpring washer
-
1333031 Nut M8Nut M8
-
14410301100 Battery. Includes items 14 thru 18Battery. Includes items 14 thru 18
-
15410300800 CapCap
-
16391302100 WasherWasher
-
1733002 Nut M6Nut M6
-
1840029 Screw M6x16Screw M6x16
-
19
-
21
-
2227092 Cabel keeperCabel keeper
-
23570022000 Battery coverBattery cover
-
245442811 Battery supportBattery support
-
2540031 Screw M6x25Screw M6x25
-
2633200 Nut M6Nut M6
-
2720009 WasherWasher
-
2833010 Nut elastic M6Nut elastic M6
-
29570151000 Cap protectionCap protection
-
3039055 Overflow hose 6.5/4Overflow hose 6.5/4
-
3120052 Spring washerSpring washer
-
3240866 Locking screw M6x20Locking screw M6x20
-
3320017 WasherWasher
-
345448286 Averse Plate AssyAverse Plate Assy
-
3520004 WasherWasher
-
3620072 Locking washerLocking washer
-
37417300057 Ring-gearRing-gear
-
38236281684 Screw M8x16Screw M8x16
-
39293800005 Loctite 271, 10mlLoctite 271, 10ml
