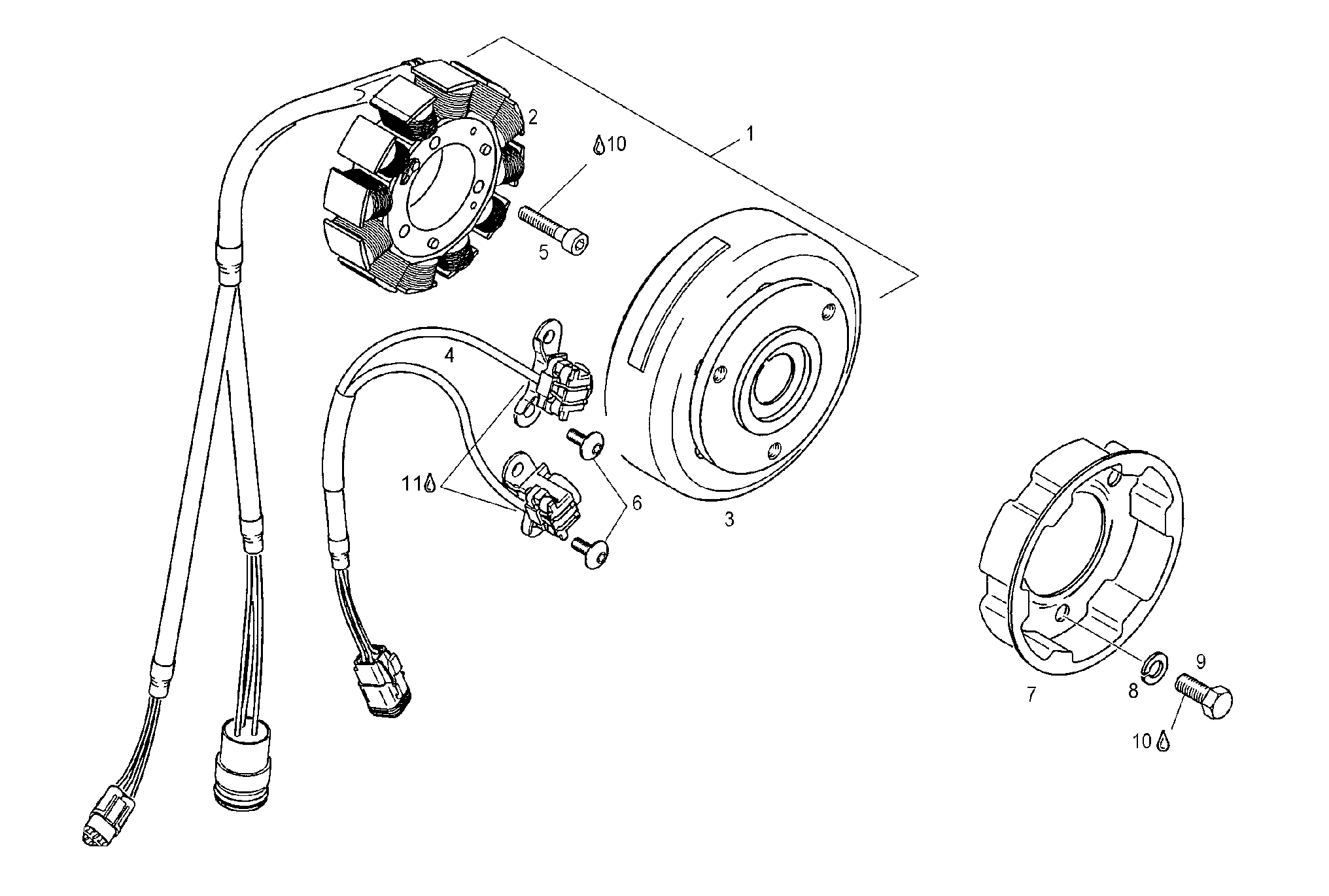

03- Fly Wheel для BRP Lynx GLX ST 5000 - 2002
-
№АртикулНазвание
-
1420888450 Magneto 12V/290W. Includes items 1 thru 4Magneto 12V/290W. Includes items 1 thru 4
-
2420888615 Stator assyStator assy
-
3420888626 Magneto flywheelMagneto flywheel
-
4420966802 Pick up assyPick up assy
-
5205063044 Allen screw M6x30Allen screw M6x30
-
6420640321 Taptite screw M5x16Taptite screw M5x16
-
7420852419 Starter cupStarter cup
-
820014 Lock washerLock washer
-
9420841520 Allenscrew M8x12Allenscrew M8x12
-
10420899785 Loctite 221/viol.Loctite 221/viol.
-
11420297710 PU-glue, sikaflex 255PU-glue, sikaflex 255
