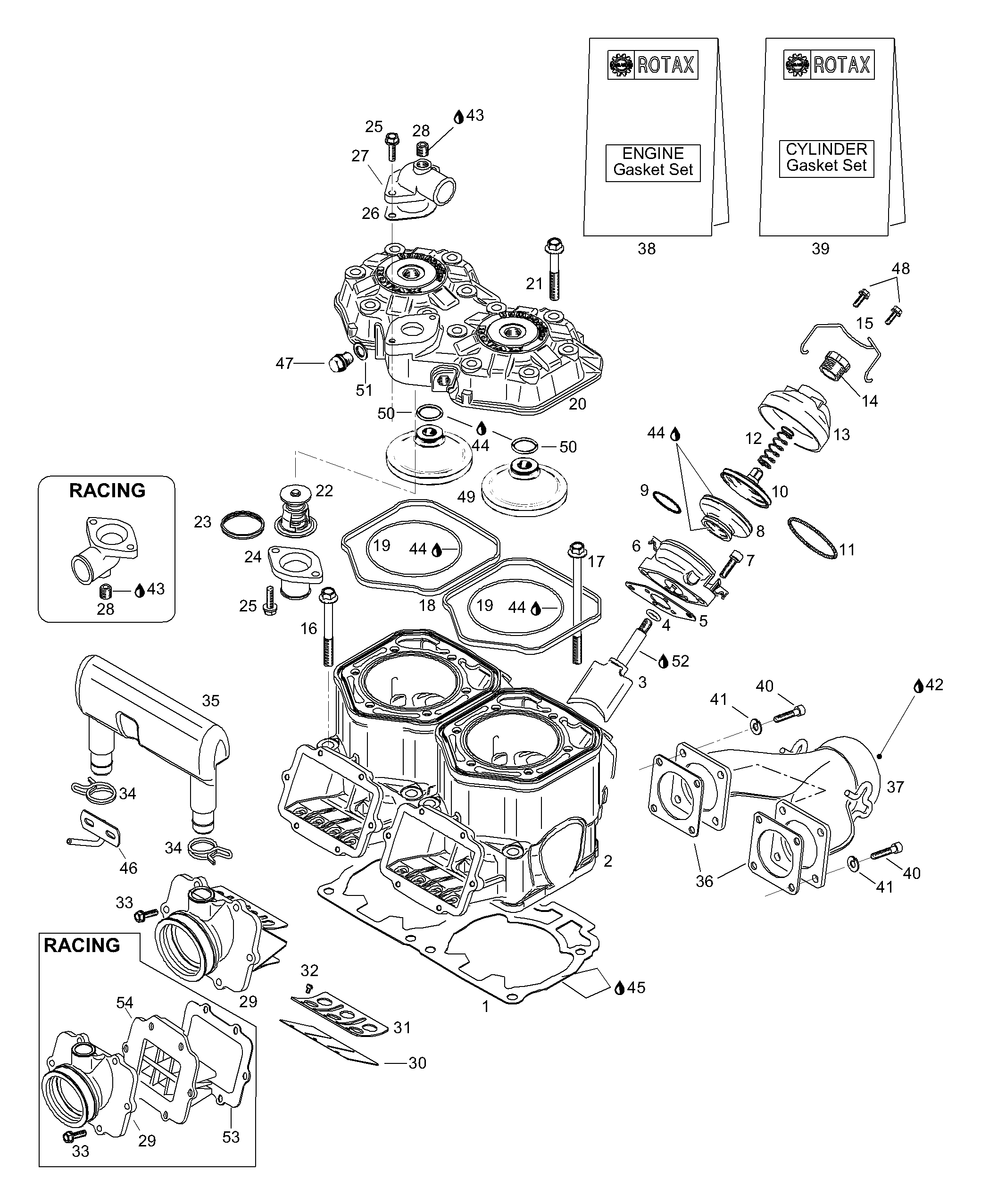

01- Cylinder для BRP Lynx Racing - 2002
-
№АртикулНазвание
-
1420931584 Gasket, double 0.8 mmGasket, double 0.8 mm
-
1420931580 Gasket, double 0.3 mmGasket, double 0.3 mm
-
1420931581 Gasket, double 0.4 mmGasket, double 0.4 mm
-
1420931583 Gasket, double 0.5 mmGasket, double 0.5 mm
-
1420931582 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420931962 Gasket, double 0.7 mmGasket, double 0.7 mm
-
2420923720 Cylinder, nicasilCylinder, nicasil
-
3420854480 Exhaust valveExhaust valve
-
4420950730 Oil sealOil seal
-
5420250238 GasketGasket
-
6420854266 Valve rod housingValve rod housing
-
7420241930 Allen screw M6x20Allen screw M6x20
-
8420260723 BellowsBellows
-
9420838253 Hose springHose spring
-
10420854449 Exhaust valve pistonExhaust valve piston
-
11420239048 Compression springCompression spring
-
12420239948 Spring, greySpring, grey
-
13420911552 Valve coverValve cover
-
14420241220 Adjustment screwAdjustment screw
-
16420640951 Screw M8x68.5Screw M8x68.5
-
17420640961 Screw M8x100Screw M8x100
-
18420931595 Square ringSquare ring
-
19420950490 O-ringO-ring
-
20420923733 Cylinderhead, redCylinderhead, red
-
21420240326 Screw M8x53,5Screw M8x53,5
-
22420922515 ThermostatThermostat
-
23420931270 Thermostat gasketThermostat gasket
-
24420922061 Water outlet socketWater outlet socket
-
25420941250 Screw M6x20Screw M6x20
-
26420850338 GasketGasket
-
27420922062 Bent otlet socketBent otlet socket
-
28420240480 Plug screwPlug screw
-
29420667070 Intake socketIntake socket
-
33420241270 Screw M5x25Screw M5x25
-
34420851440 ClampClamp
-
35420867815 Intake resonatorIntake resonator
-
36420850552 GasketGasket
-
37420973550 Exhaust manifoldExhaust manifold
-
38420888633 Gasket kit, engineGasket kit, engine
-
39420888637 Gasket kit, cylinderGasket kit, cylinder
-
4040052 Allen screw M6x20Allen screw M6x20
-
4120052 Lock washerLock washer
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
43420297906 Sealing compoundSealing compound
-
47420841921 Plug screwPlug screw
-
48420841555 Screw M5x20Screw M5x20
-
49420923877 Comb. Chamber insertComb. Chamber insert
-
50420430370 O-ringO-ring
-
51420250015 Sealing ringSealing ring
-
52420297433 Molykote G-N Slide pastMolykote G-N Slide past
-
53420630810 GasketGasket
-
54420924810 Reed valve support assyReed valve support assy
