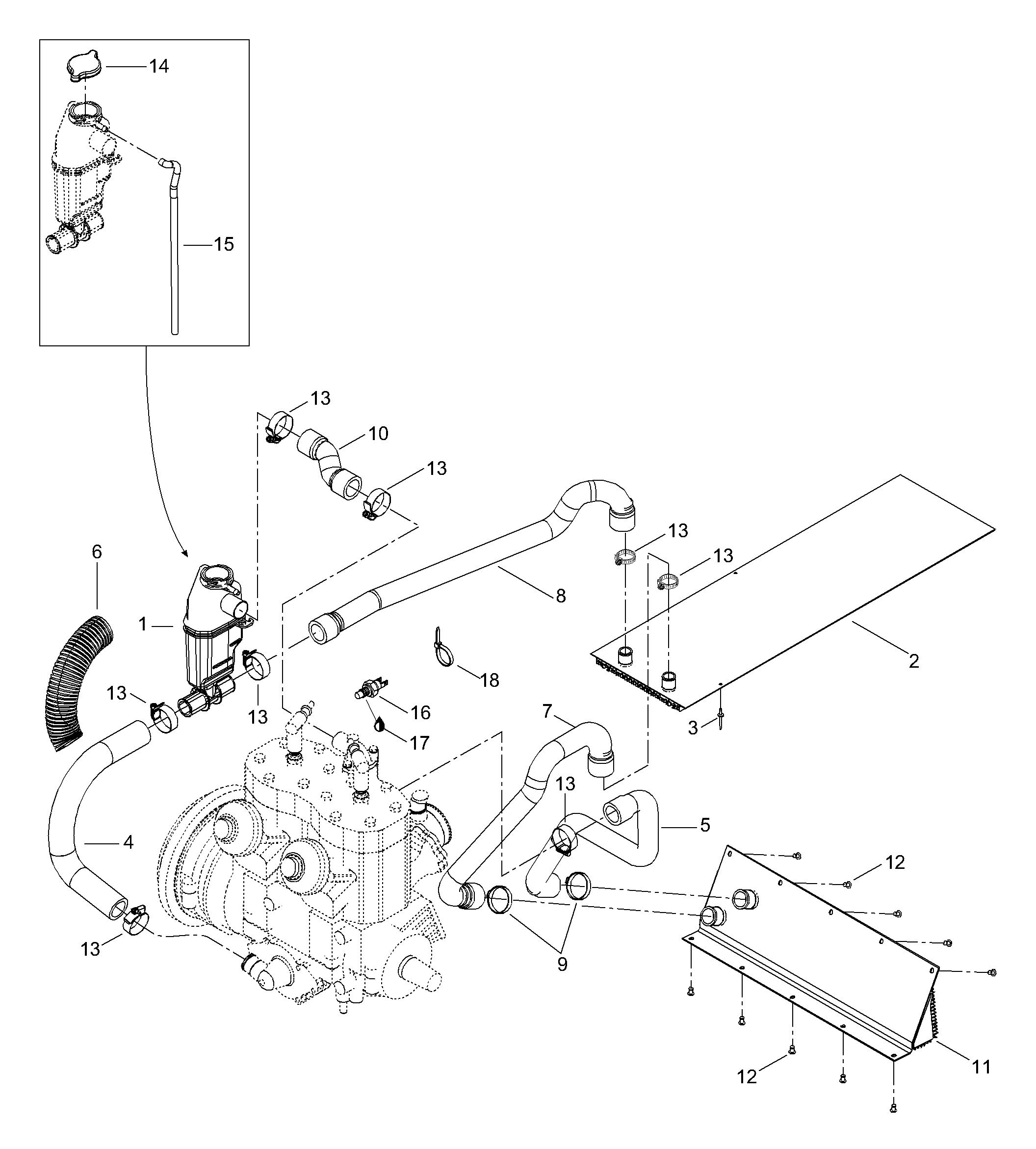

01- Radiator, Hoses для BRP Lynx Racing - 2002
-
№АртикулНазвание
-
1509000134 Coolant-tankCoolant-tank
-
25246130 RadiatorRadiator
-
336083 RivetRivet
-
4509000135 HoseHose
-
5509000002 Hose, Engine->front rad.Hose, Engine->front rad.
-
6390003 Protective shieldProtective shield
-
75346349 Hose, front rad.->rear raHose, front rad.->rear ra
-
85346350 Hose, rear rad.->tankHose, rear rad.->tank
-
9509000045 Hose clampHose clamp
-
10509000112 Hose, sender->tankHose, sender->tank
-
11517297100 Front radiatorFront radiator
-
1236489 RivetRivet
-
13408800400 Hose clampHose clamp
-
14414684700 Cap pressureCap pressure
-
1539038 Overflow hose 9.5/6.5Overflow hose 9.5/6.5
-
16512047000 Sender temperatureSender temperature
-
17293800018 Loctite 592, 50mlLoctite 592, 50ml
-
1827100 Tie rapTie rap
