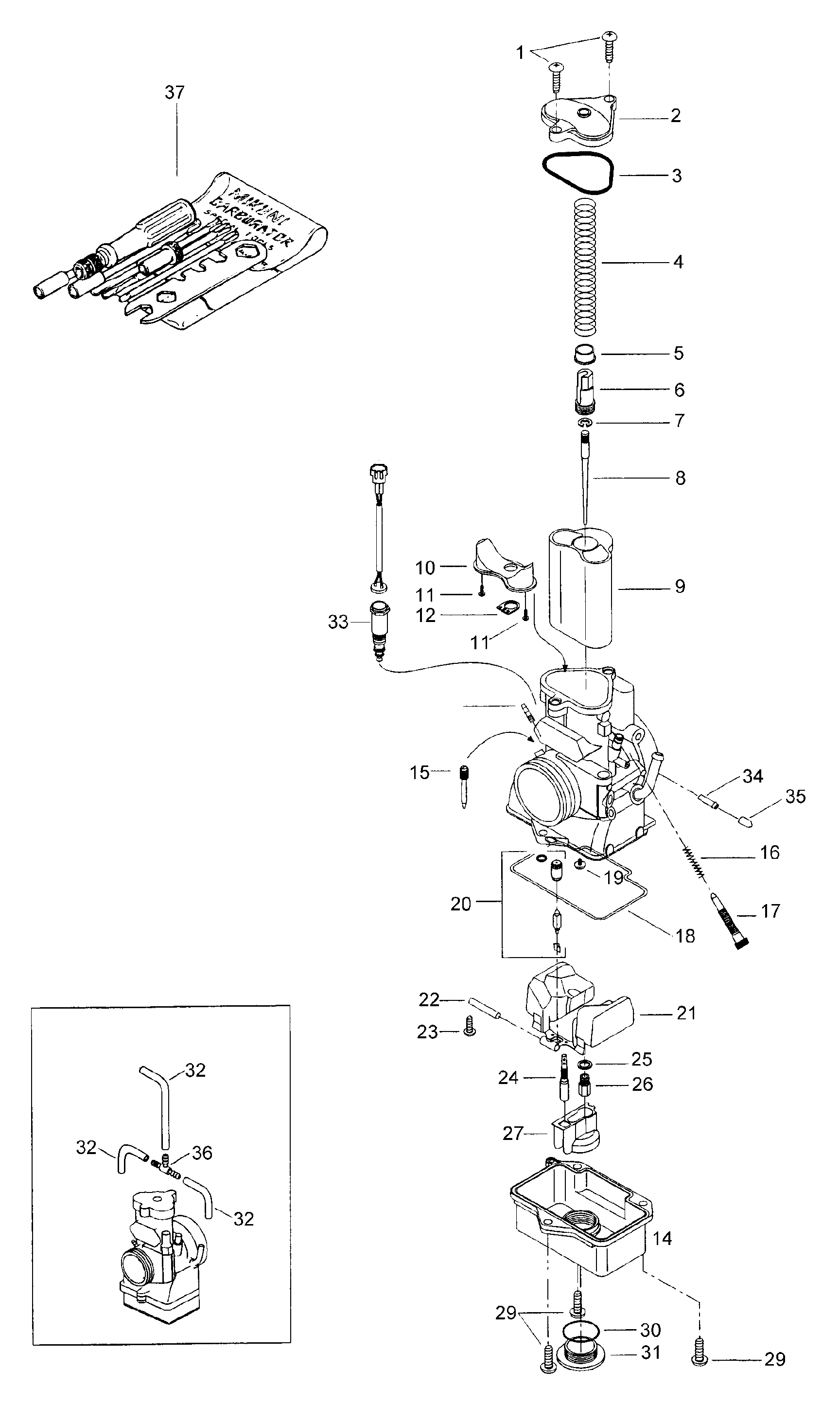

02- Carburetor для BRP Lynx Racing - 2002
-
№АртикулНазвание
-
1404138700 ScrewScrew
-
2404161857 CoverCover
-
4404161864 SpringSpring
-
5404161863 RingRing
-
6404161856 Guide holderGuide holder
-
7404152200 E-ringE-ring
-
8404161999 Jet needle 6FNY04-51-3Jet needle 6FNY04-51-3
-
9404161867 Piston valve 4.0Piston valve 4.0
-
10404161854 VenturyVentury
-
11404161852 ScrewScrew
-
12404161865 PackingPacking
-
13404153400 NippleNipple
-
14404161994 Body floatBody float
-
15404161996 Power jet 35Power jet 35
-
16404161849 SpringSpring
-
17404161850 AdjusterAdjuster
-
18404161993 RingRing
-
19404161861 ScrewScrew
-
20404161868 Needle valve 1,5VNeedle valve 1,5V
-
21404161859 FloatFloat
-
22404161860 Float arm pinFloat arm pin
-
23404138600 ScrewScrew
-
24404161870 Pilot jet 25Pilot jet 25
-
25404161862 WasherWasher
-
26404101400 MAG. Main jet 330, MAGMAG. Main jet 330, MAG
-
26404104900 P.T.O Main jet 340, P.T.O.P.T.O Main jet 340, P.T.O.
-
27404161855 HolderHolder
-
28404103000 Tube retainer plateTube retainer plate
-
29404161848 ScrewScrew
-
30404107300 RingRing
-
31404107400 Plug ScrewPlug Screw
-
32404161851 Vent tubeVent tube
-
33404161998 SolenoidSolenoid
-
34404161997 Air jet 105Air jet 105
-
35404156600 CapCap
-
36270500347 T-fittingT-fitting
-
37404112000 Tool kitTool kit
