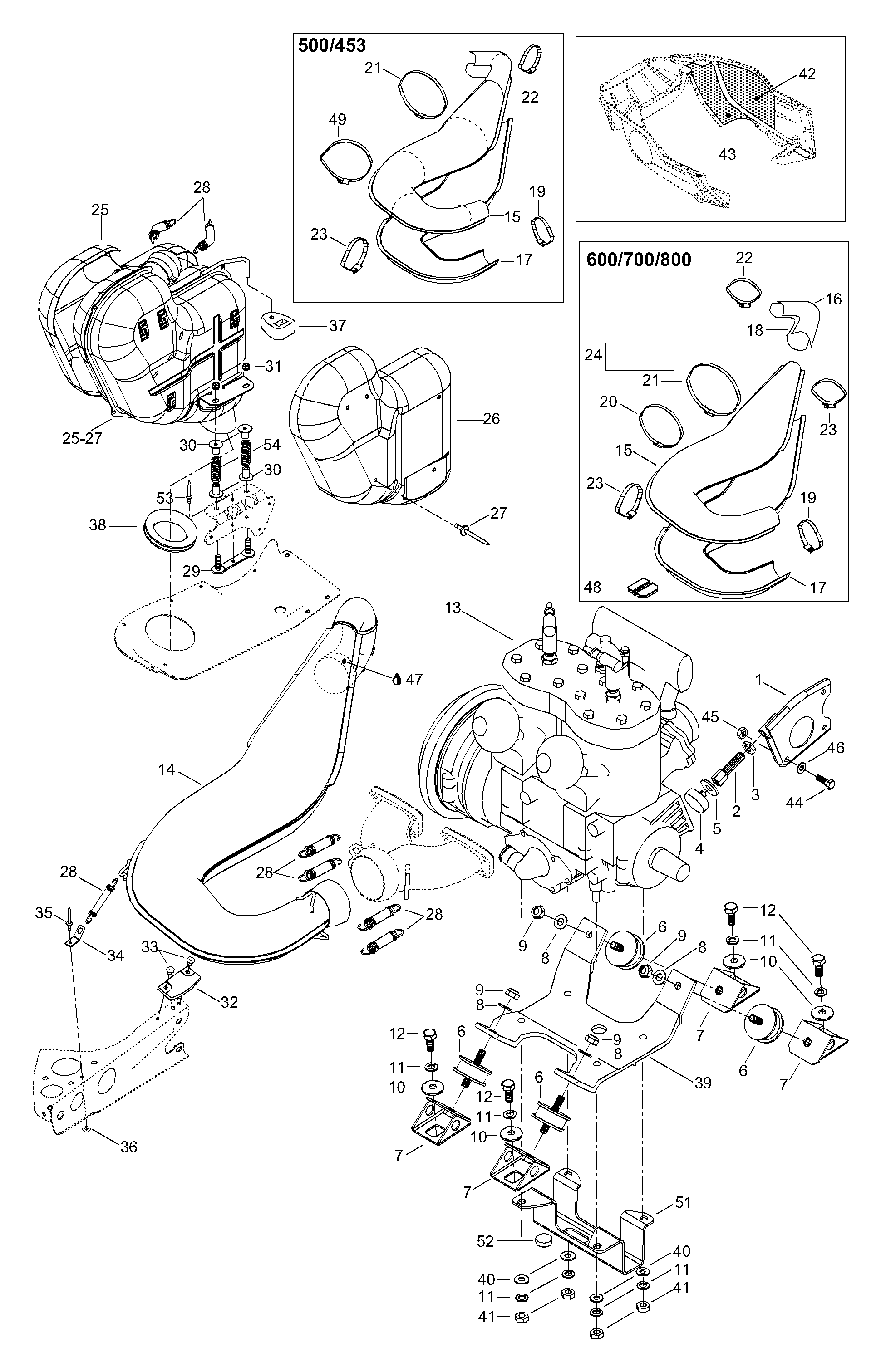

01- Engine Mount Plate/Muffler для BRP Lynx Racing - 2002
-
№АртикулНазвание
-
1512058500 Support plateSupport plate
-
2512058800 Stopper screwStopper screw
-
333218 Jam nut M12Jam nut M12
-
4512059056 StopperStopper
-
520023 WasherWasher
-
6570127700 Rubber mountRubber mount
-
7512050900 Engine supportEngine support
-
820005 WasherWasher
-
933012 Nut elastic M10Nut elastic M10
-
10512056700 Lock washerLock washer
-
1120047 Spring washerSpring washer
-
1240040 Screw M10x25Screw M10x25
-
1311000073 Engine 453Engine 453
-
14514053420 MufflerMuffler
-
15514052938 Upper enveloppeUpper enveloppe
-
17514053422 Lower enveloppeLower enveloppe
-
19514052860 Norma gear clampNorma gear clamp
-
20514052861 Norma gear clampNorma gear clamp
-
21514052861 Norma gear clampNorma gear clamp
-
22514052860 Norma gear clampNorma gear clamp
-
23514052983 Norma gear clampNorma gear clamp
-
24514052940 IsolationIsolation
-
25514053349 Muffler assy. Includes items 25 thru 27Muffler assy. Includes items 25 thru 27
-
25514051700 R.H. heat shieldR.H. heat shield
-
26514052960 L.H. heat shieldL.H. heat shield
-
27390910000 RivetRivet
-
28415107100 SpringSpring
-
295447628 BracketBracket
-
305447626 SleeveSleeve
-
3133029 Elastic flanged nut M8Elastic flanged nut M8
-
32570044100 Rubber padRubber pad
-
3336037 RivetRivet
-
345447086 Spring bracketSpring bracket
-
3536489 RivetRivet
-
3620008 WasherWasher
-
37514052704 Rubber pumberRubber pumber
-
38570039000 Rubber grommetRubber grommet
-
39512059064 Engine supportEngine support
-
4020105 Washer, hardenedWasher, hardened
-
4133004 Nut M10Nut M10
-
42514052718 IsoleringIsolering
-
43514052719 IsoleringIsolering
-
4440344 Allen screw M8x25Allen screw M8x25
-
4533011 Nut elastic M8Nut elastic M8
-
4620004 WasherWasher
-
47413710300 Sealant, loctite 17914Sealant, loctite 17914
-
515247051 Support engineSupport engine
-
52570048700 Rubber damperRubber damper
-
5336083 RivetRivet
-
5425009 SpringSpring
