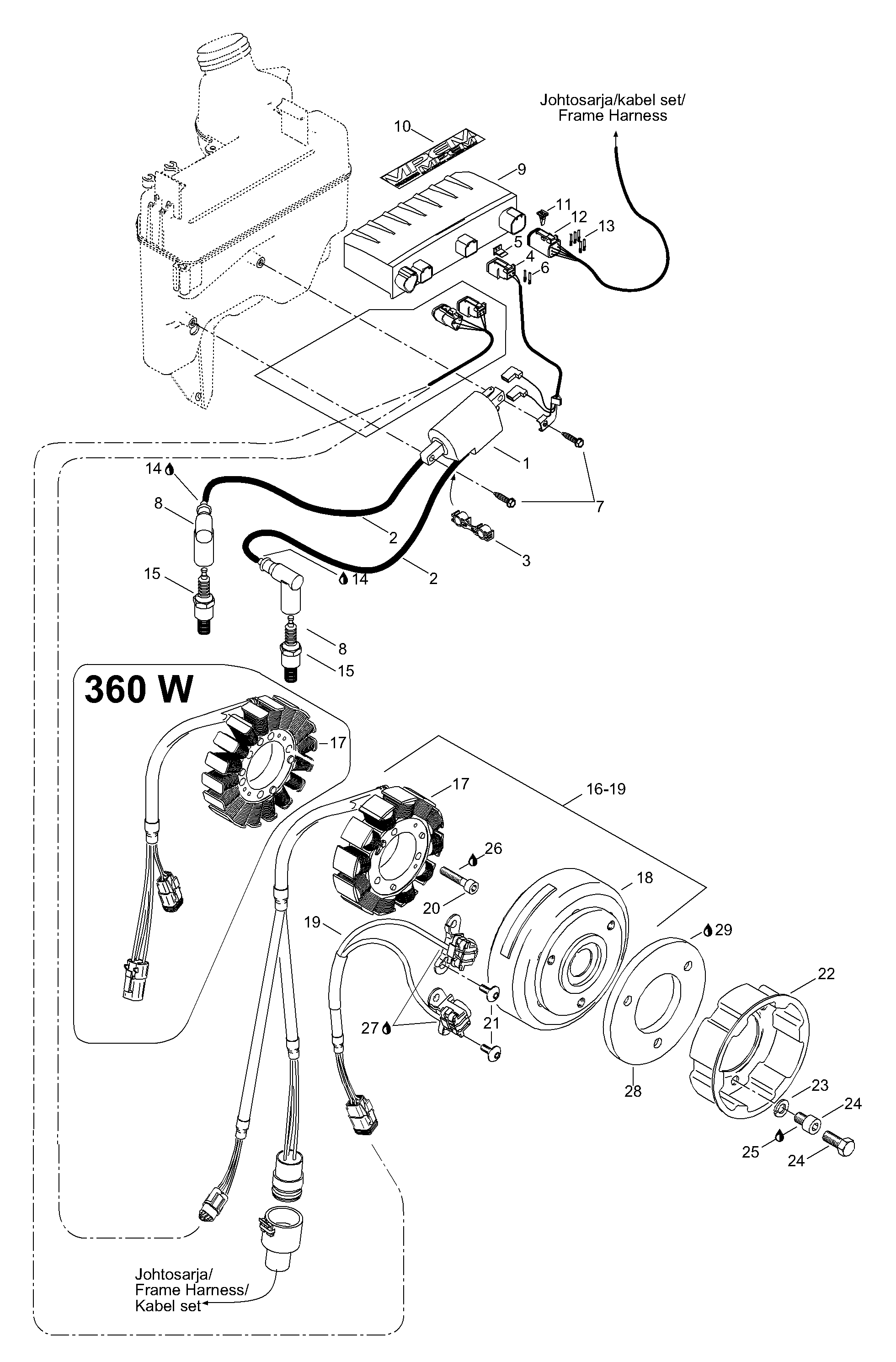

01- DPM для BRP Lynx Ranger LCE - 2003
-
№АртикулНазвание
-
1512059512 Ignition coil assyIgnition coil assy
-
2512059485 Spark plug wire 380 mmSpark plug wire 380 mm
-
2512059486 Spark plug wire 455 mmSpark plug wire 455 mm
-
3410914600 Plastic clipPlastic clip
-
4409207300 Female terminal housinFemale terminal housin
-
5409207100 Female lock (2 circuits)Female lock (2 circuits)
-
6278000632 Female terminalFemale terminal
-
740375 ScrewScrew
-
8278000237 Spark plug protectorSpark plug protector
-
9512059450 Calibration moduleCalibration module
-
10516000245 Label, MPEMLabel, MPEM
-
11515175705 Female lock (6 circuits)Female lock (6 circuits)
-
12515175673 Female terminal housinFemale terminal housin
-
13278000632 Female terminalFemale terminal
-
14293550004 140gDielectric grease, 140g140gDielectric grease, 140g
-
15512059533 Spark plug BR9ECSSpark plug BR9ECS
-
16420888450 Magneto 12V/290W. Includes items 16 thru 19Magneto 12V/290W. Includes items 16 thru 19
-
17420888615 Stator assyStator assy
-
18420888626 Magneto flywheelMagneto flywheel
-
19420966802 Pick up assyPick up assy
-
20420840880 Allen screw M6x30Allen screw M6x30
-
21420640321 Taptite screw M5x16Taptite screw M5x16
-
22420852590 Starter cupStarter cup
-
23420827405 Lock washerLock washer
-
24420841520 Allenscrew M8x12Allenscrew M8x12
-
25420899785 Loctite 221/viol.Loctite 221/viol.
-
26420897651 Loctite 243, blue, 10ccLoctite 243, blue, 10cc
-
27420297710 PU-glue, sikaflex 255PU-glue, sikaflex 255
