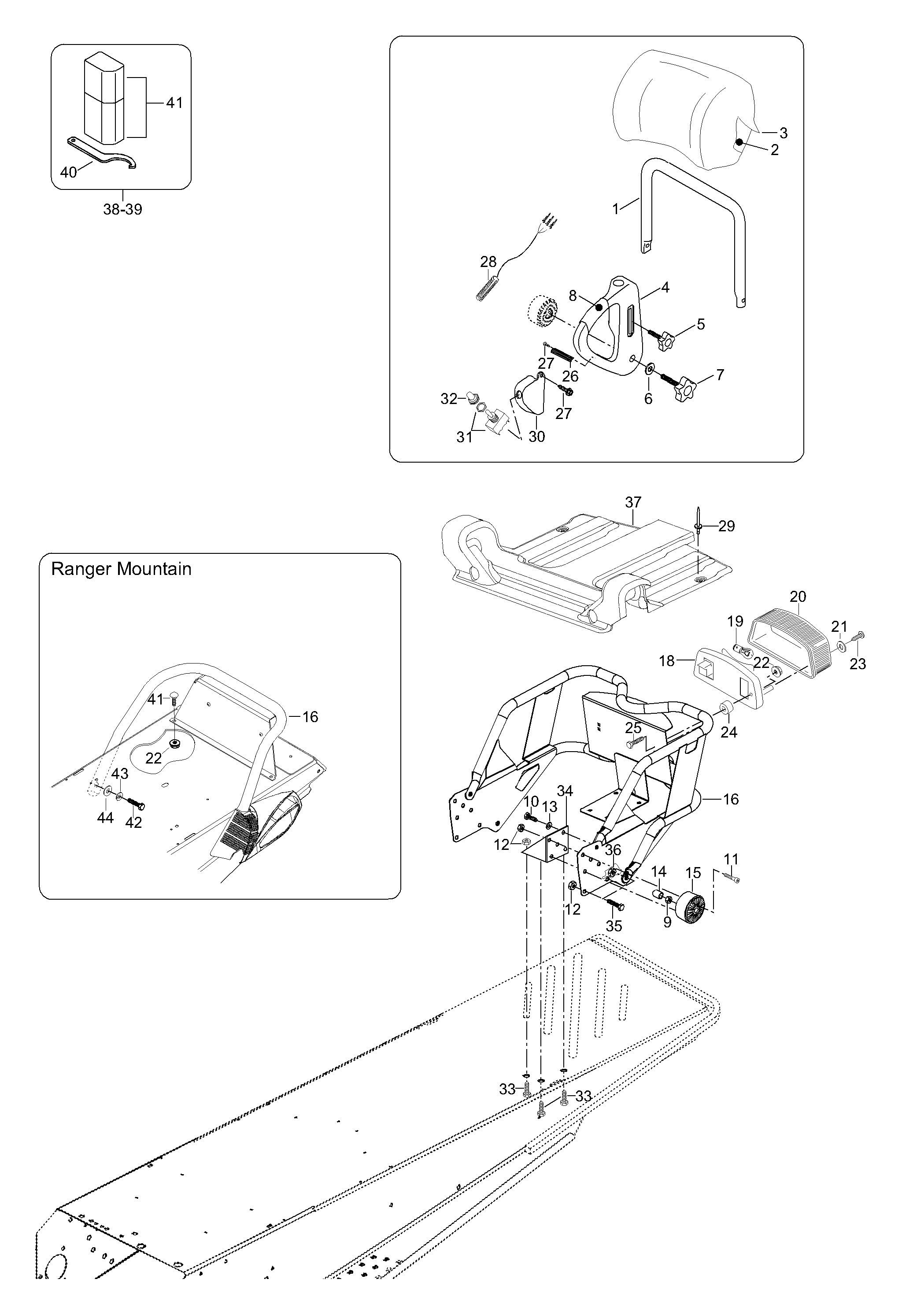

09- Body для BRP Lynx Ranger LCE - 2003
-
№АртикулНазвание
-
1605248997 BackrestBackrest
-
2605349172 FoamFoam
-
3605349173 CoverCover
-
4510003542 R.H. armR.H. arm
-
4510003607 L.H. armL.H. arm
-
5510003533 Male handle M8x35Male handle M8x35
-
620027 WasherWasher
-
7510003534 Male handle M12x45Male handle M12x45
-
8605449165 R.H. GripR.H. Grip
-
8605449536 L.H. GripL.H. Grip
-
933016 Nut elastic M12Nut elastic M12
-
1040037 Screw M8x25Screw M8x25
-
1140290 Allen screw M8x55Allen screw M8x55
-
1233201 Elastic flanged nut M8Elastic flanged nut M8
-
1320072 Lock washerLock washer
-
14510003628 HoseHose
-
15510003707 PivotPivot
-
16605249025 Rack assyRack assy
-
175341214 Taillamp assy. Includes items 17 thru 22Taillamp assy. Includes items 17 thru 22
-
18414979400 Taillamp housingTaillamp housing
-
19410504000 BulbBulb
-
20414513700 LensLens
-
21414516400 WasherWasher
-
2233200 Nut M6Nut M6
-
23414516300 ScrewScrew
-
24549103 SleeveSleeve
-
2540065 Locking screw M6x45Locking screw M6x45
-
26605349166 HousingHousing
-
2740847 ScrewScrew
-
28605349534 HeaterHeater
-
2936037 RivetRivet
-
30605348889 BracketBracket
-
31410110700 SwitchSwitch
-
32515175281 CoverCover
-
3340058 Locking screw M8x20Locking screw M8x20
-
34605248942 R.H. Support plateR.H. Support plate
-
34605248941 L.H. Support plateL.H. Support plate
-
3540336 Screw M8x20Screw M8x20
-
3633011 Nut elastic M8Nut elastic M8
-
37605349171 Plastic coverPlastic cover
-
385445403 Tool box with tools. Includes items 38 thru 39Tool box with tools. Includes items 38 thru 39
-
39572036310 Tool boxTool box
-
40529032900 CamCam
